In a Beverly, MA master bath we installed earlier this spring, the first thing we checked wasn’t the tile — it was the wall plumb. With hundreds of frameless enclosures completed across the North Shore, we know that a wall running even a quarter-inch out of plumb over six feet will fight your pivot hardware every single day. Getting that measurement right at the template stage is what separates a door that swings cleanly for ten years from one that starts binding by fall. These six recent installs show the range of configurations we handle, and each one started the same way: substrate first, glass second.
5 min read

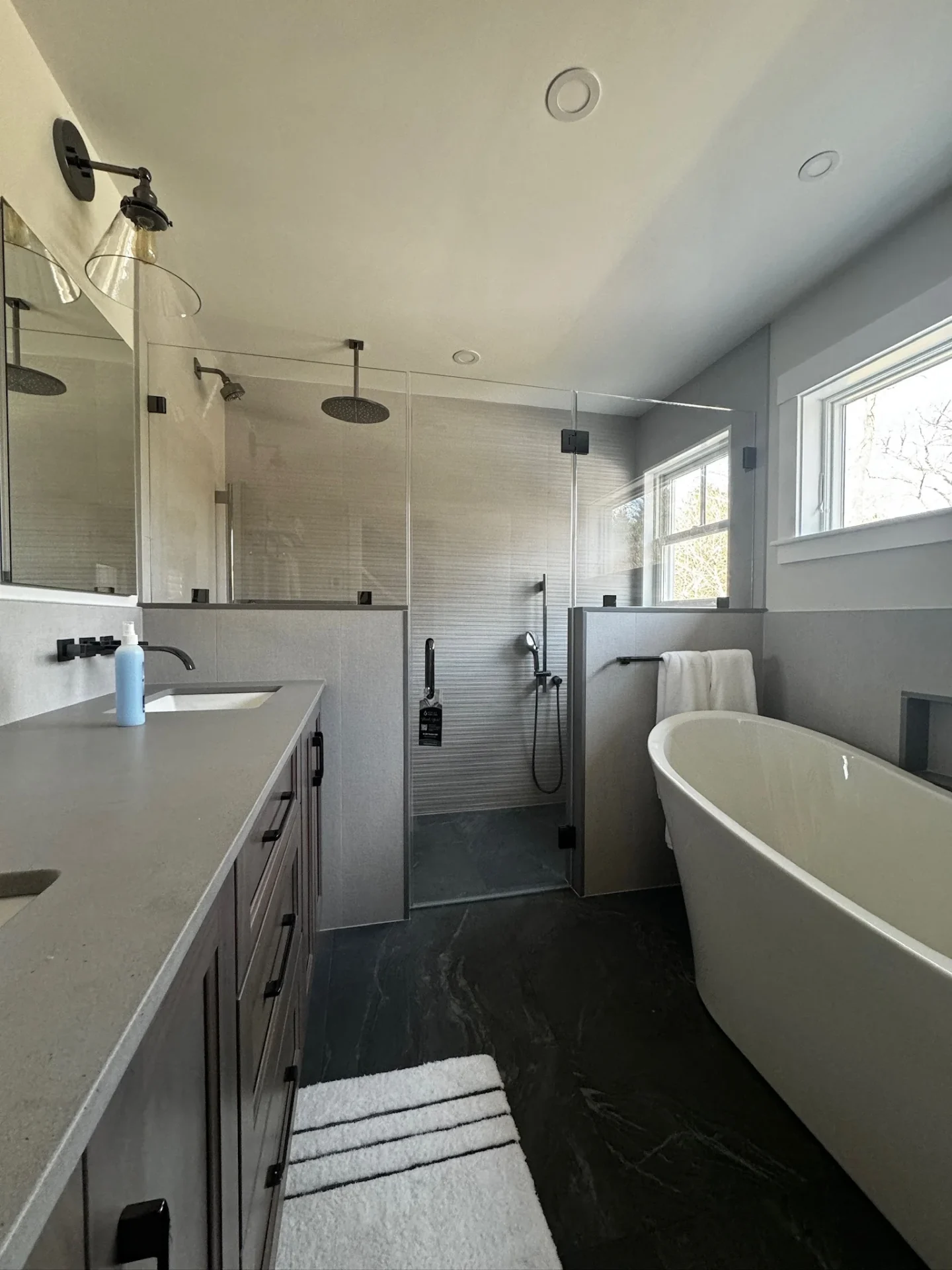

Newburyport, MA — Inline Frameless Enclosure, Matte Black Hardware, Textured Wall Tile
This Newburyport install used a full inline configuration — fixed panel, pivot door, and a header bar connecting the two at the top. The matte black pivot hardware and header brackets are set directly into the tile substrate with sleeve anchors, not just drywall. The textured vertical wall tile required extra care during templating because the surface relief changes the effective setback for each bracket. The sweep seal along the bottom of the door is a PVC wipe style — low-profile, replaceable, and the right choice for a threshold this tight.

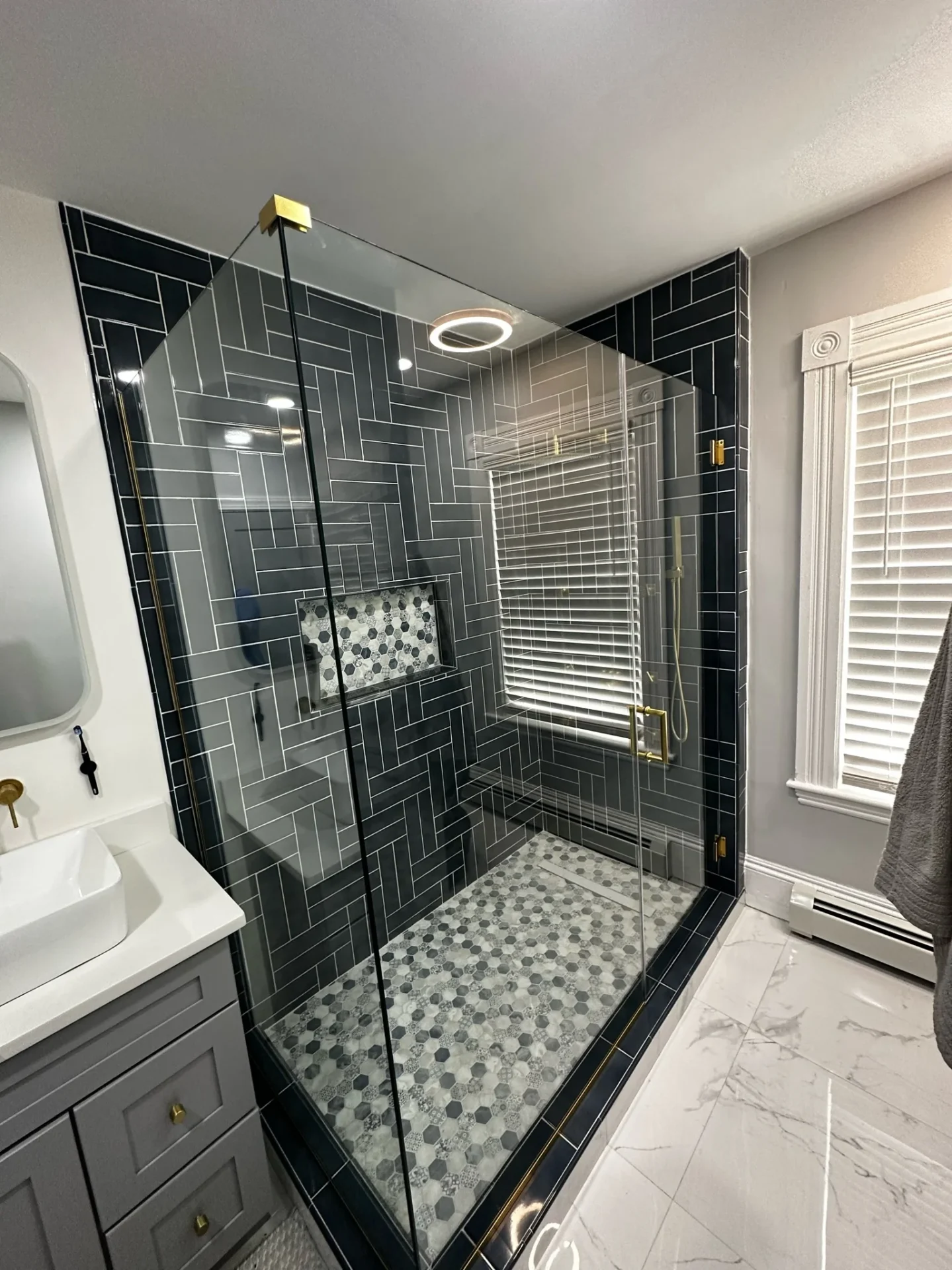

Saugus, MA — Pivot Door, Brushed Gold Hardware, Black Herringbone Tile
The herringbone pattern on this Saugus shower runs floor to ceiling, and that pattern creates a challenge: no two grout lines are level across the wall face, so you can’t use the tile as a reference for squaring the door. We pulled measurements off the structural wall behind the tile and templated from there. The brushed gold pivot hinges are heavy-duty, rated for a 3/8-inch tempered lite, which is exactly what’s in this door. The hexagonal mosaic floor tile in the shower pan is a separate substrate concern — those small tiles need a fully waterproofed, sloped mortar bed underneath, and we verify that slope before signing off on the glass order.

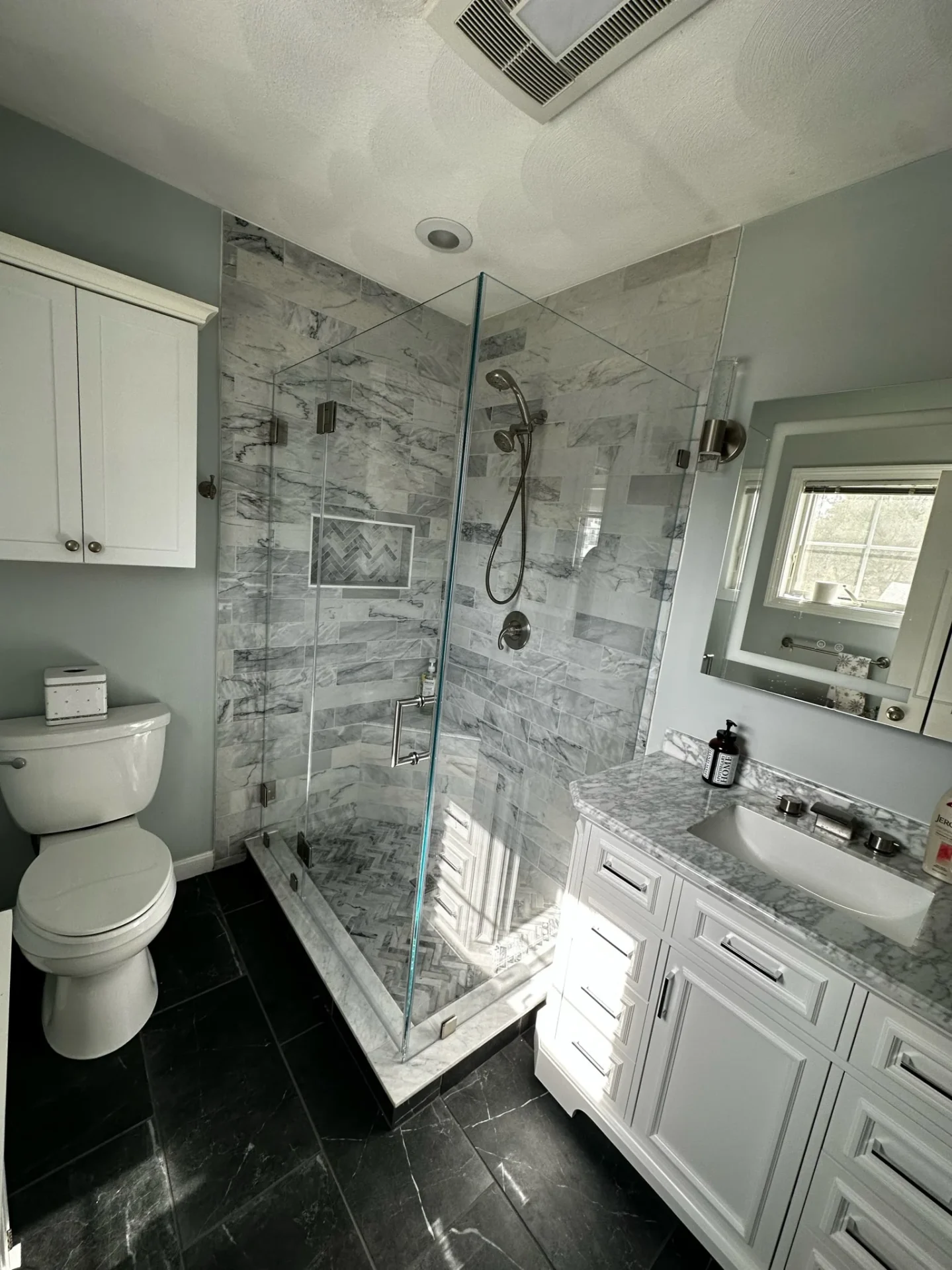

Peabody, MA — Corner Frameless Enclosure, Brushed Nickel, Marble-Look Wall Tile
Corner enclosures add a variable that inline setups don’t have: two walls need to be plumb and square to each other simultaneously. This Peabody bathroom came in at 89.5 degrees — close, but not square. We adjusted the U-channel on the return panel to split the gap, which keeps both glass lites sitting parallel to their respective walls without stress points at the corner joint. The brushed nickel hardware blends with the gray veining in the marble-look tile. The herringbone niche accent inside the shower is a good example of tile work that requires precise glass templating — the niche edge sets the reveal, and the glass has to clear it cleanly.

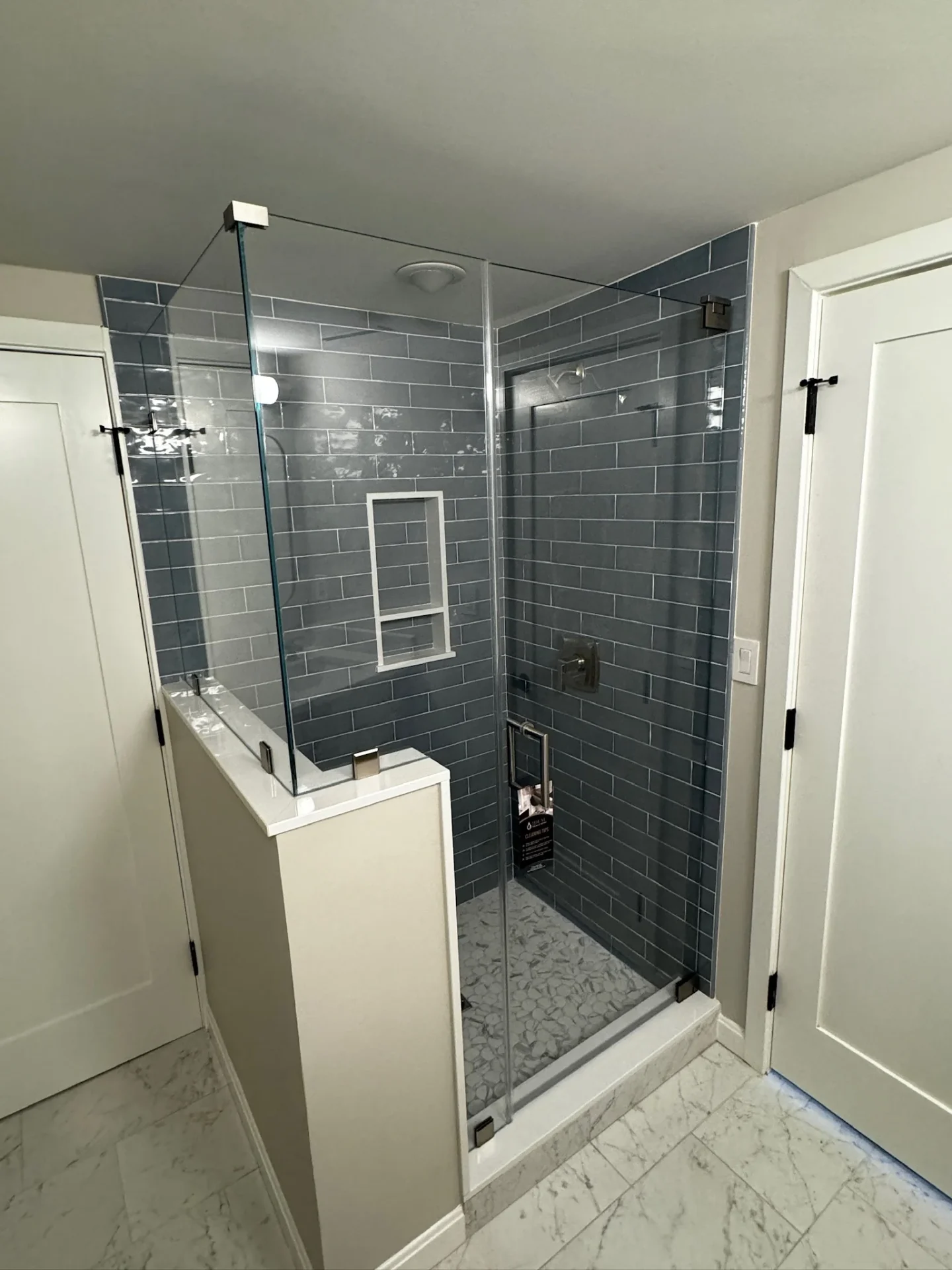

Beverly, MA — Pivot Door Off a Half-Wall, Matte Black Hardware, Blue Subway Tile
This Beverly configuration uses a knee wall as the fixed anchor point instead of a full-height wall, which changes the structural load path for the pivot hardware entirely. The top of the glass is supported by a ceiling-mounted clamp, and the pivot point at the knee wall cap has to carry the full swing load of the door. We used a reinforced pivot set rated for this application — standard residential pivot hardware isn’t appropriate here. If you want to understand more about what makes Beverly a great town for homeowners investing in projects like this, here’s some background on Beverly, MA that’s worth a read. The blue subway tile is a glossy ceramic, which reads the grout joints clearly and made templating straightforward.

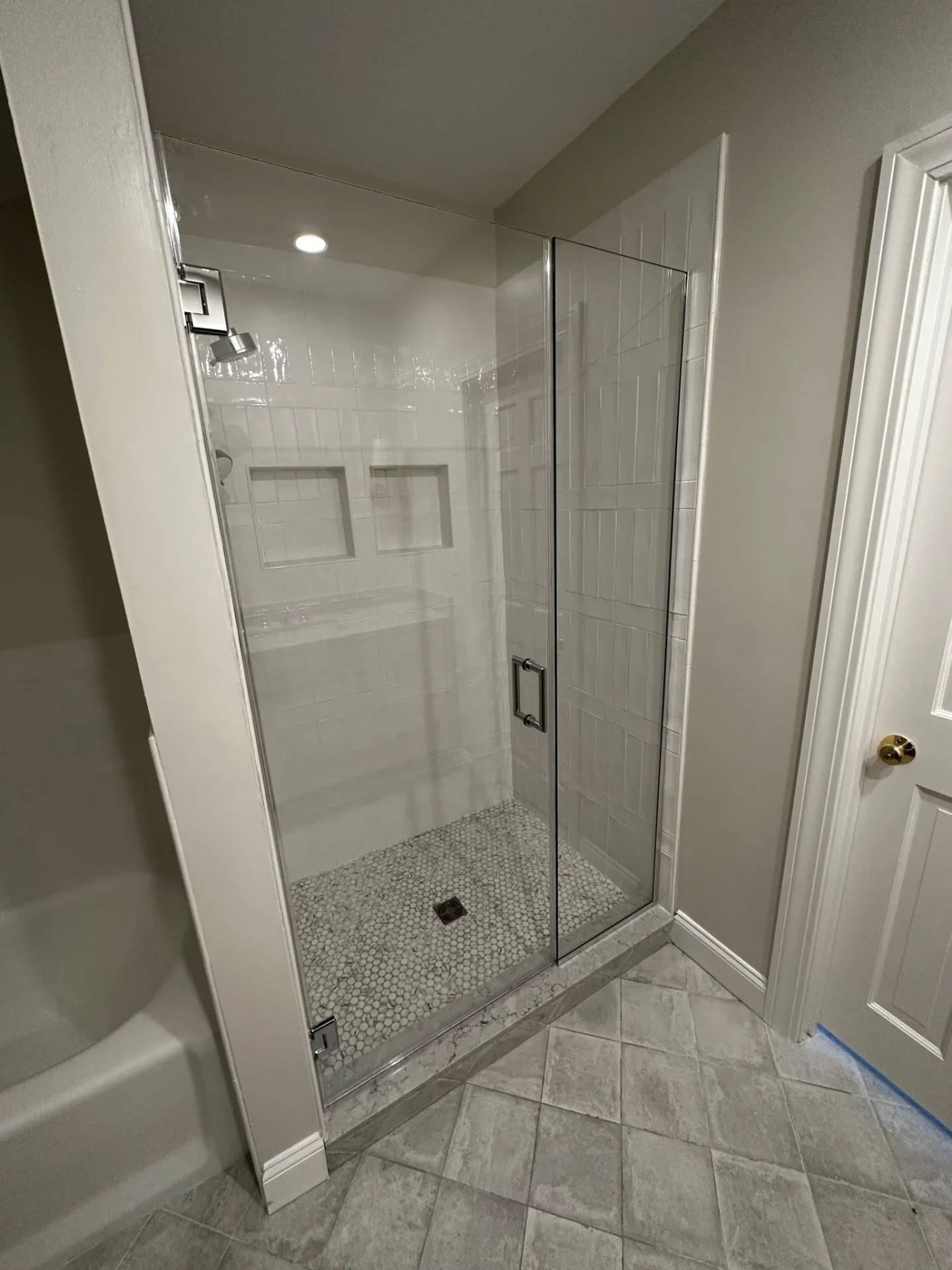

Marblehead, MA — Pivot Door, Chrome Hardware, White Vertical Tile, Penny-Round Floor (View 1)
White vertical subway tile is unforgiving on alignment — any gap inconsistency at the glass edge shows clearly against that clean grout grid. This Marblehead install used IDEAL Crystal Clear Glass, which has minimal green tint and keeps the white tile reading true through the door panel. The chrome pivot hardware and bar handle match the existing plumbing fixtures, which is a detail we confirm at the measurement visit, not on installation day. The penny-round mosaic floor needs a center drain, and the slope of that mortar bed directly affects how the threshold sits — we checked the drain elevation before templating the glass.

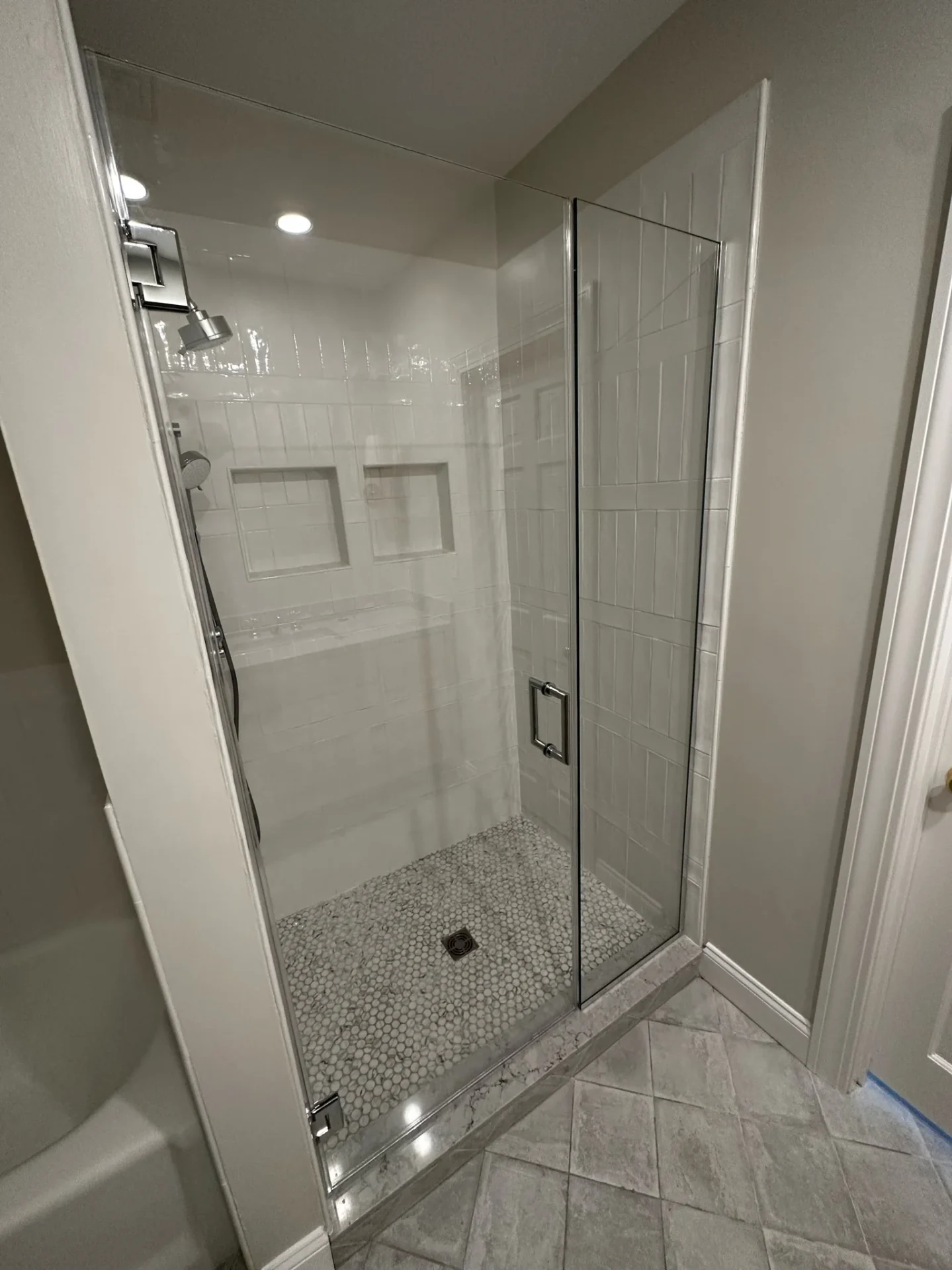

Marblehead, MA — Same Install, Second Angle Showing Door Swing and Threshold Detail
The second angle on this Marblehead door shows the threshold profile and the full door swing path. There’s a tub positioned to the left, which tightens the clearance on the hinge side — we confirmed the swing arc at the template stage to make sure the door clears the tub deck at full open. The bottom sweep seal seats against the threshold channel, and you can see the chrome saddle sitting flush with both the shower floor and the bathroom tile outside. That flush transition doesn’t happen by accident; it requires the threshold height to be set during the tile phase, not adjusted after the fact.
Frequently Asked Questions
How long does a frameless shower door installation actually take?
Most single-door or inline enclosures take three to five hours on-site. A larger walk-in with a header bar and multiple panels can run a full day. The glass is templated, cut, and tempered in advance — the install day is hardware setting, shimming, and alignment, not fabrication.
What prep work does the homeowner need to do before installation day?
The tile and substrate need to be fully cured — no exceptions. If we show up and the grout is less than 72 hours old, we reschedule. When you’re searching for frameless shower door installation near me, make sure whoever you hire checks substrate readiness before they commit to a date. We do that at the measurement appointment.
What does a custom frameless shower door cost on the North Shore?
For most residential projects in Danvers, Beverly, Salem, or Marblehead, the range runs $800 to $2,500 depending on glass thickness, panel count, and hardware finish. We offer free in-home measurement across the North Shore — that’s when we give you an accurate number, not a guess off a website form.
