The detail that flagged this Lexington, MA job as non-standard before we even pulled out a level was the angled ceiling wall on the left side of the opening. We’ve set hundreds of frameless enclosures across the North Shore at IDEAL, and a sloped substrate like that means one thing: the glass can’t come in square. It has to be templated on-site and cut to follow the pitch exactly. That precision work is part of what drives the cost conversation — and if you’re asking what a frameless pivot shower door runs in Lexington, the honest answer starts with your opening dimensions, your glass options, and your hardware finish.
3 min read
The Hardware and Glass Spec on This Pivot Install
This job was a single frameless pivot door with a fixed return panel, set in a large-format porcelain tile enclosure. Chrome hardware throughout — towel bar pull on the door face, top-and-bottom pivot points at the jamb. The glass is 3/8-inch tempered lite: thick enough to hold its shape without a frame and heavy enough at the pivot to swing smooth and seal consistently at the threshold. The built-in bench and recessed niche on the right wall required careful placement of the sweep seal so water doesn’t track toward the niche opening.

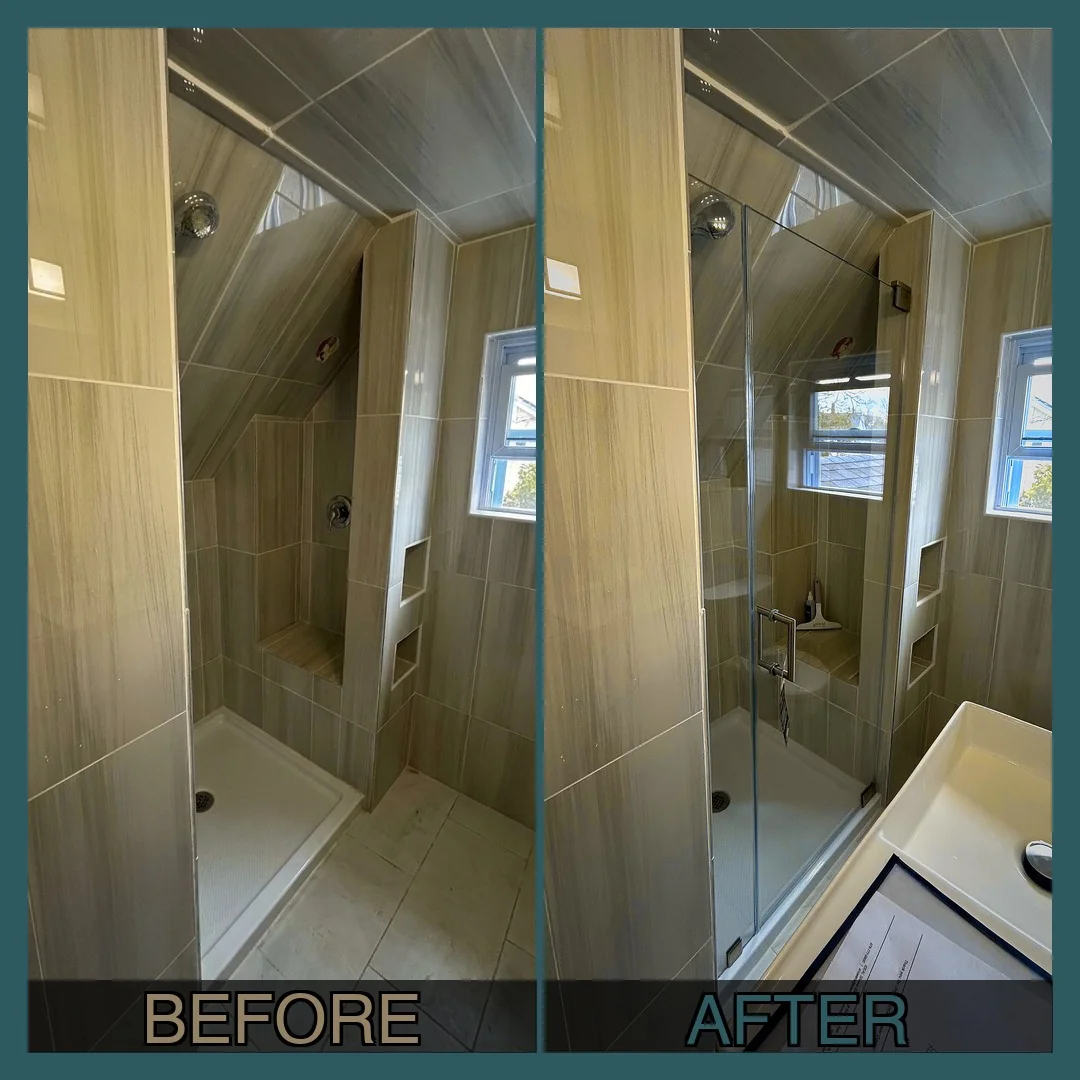

What the Opening Looked Like Before the Door Went In
Before we arrived, the enclosure was fully finished tile with no containment at the face — completely open. The sloped ceiling on the left made the opening feel tight and unresolved. Once the frameless pivot went in with the glass custom-cut to follow the ceiling angle, the opening filled cleanly. The interior window reads through the glass now, and the built-in bench shows as an intentional detail rather than getting lost in shadow. That’s what a properly fitted door does for a non-standard opening.
Why IDEAL Crystal Clear Glass Was Right for This Enclosure
Standard tempered glass carries a greenish tint at the edge — most visible on thicker lites and in naturally lit spaces. This shower has a window inside the enclosure, so we specified IDEAL Crystal Clear Glass to eliminate that iron tint. On large-format porcelain with a subtle linear vein pattern, any color cast in the glass muddies the tile’s finish. Crystal Clear keeps the tile looking exactly the way the homeowner chose it.
Frequently Asked Questions
How long does a frameless pivot shower door installation take?
Most pivot installs run three to four hours — templating, hardware, door hang, sweep seal, and cleanup. A non-standard opening like this Lexington job with the sloped ceiling adds time: we template on-site first, then the glass goes to our shop for cutting. Plan for a two-visit process.
What prep work does the homeowner need to do before the installer arrives near me?
Tile work needs to be fully cured, and the shower pan should be in its final position because the sweep seal is cut to fit the threshold. Clear the bathroom of anything breakable and give us clear access. That’s it on your end — we handle everything else.
How much does a frameless pivot shower door cost in the Lexington, MA area?
Most frameless pivot jobs in the Lexington area run $800 to $2,500 depending on glass thickness, hardware finish, enclosure size, and whether the opening is a standard cut or a custom angle like this one. Non-standard openings move the number toward the upper range. IDEAL offers a free in-home measurement — we look at the opening, check the substrate, and give you a firm number before any commitment. We serve Lexington and nearby communities including Danvers, Beverly, Salem, and Marblehead.
Scheduling a Measurement in Lexington and Nearby Towns
IDEAL Shower Doors handles frameless enclosures throughout MetroWest and the North Shore — Lexington, Burlington, Bedford, Concord, and east to Danvers, Beverly, and Salem. Spring is our busiest season; calendar slots fill fast once renovation schedules hit their stride. For a broader look at the pivot, sliding, and neo-angle work we do across the region, see our frameless pivot, sliding, and neo-angle installs across the North Shore.
Ready for a real number on your project? Call our team at (978) 777-9900 or schedule your free in-home measurement online. We’ll assess the opening, go over your options, and give you a written quote — no pressure, no guesswork.
