Most frameless shower door installations in Groveland take two to four hours — start to finish. We’ve completed hundreds of custom shower enclosures across the North Shore, and three jobs from this past month cover the full range: a brushed nickel inline pivot here in Groveland, a satin brass multi-panel return over a knee wall in Beverly, and a matte black pivot enclosure set against dark subway tile in Mont Vernon, NH. The hardware spec, the substrate condition, and the configuration all determine how the day runs. Here’s what each phase actually looks like.
3 min read

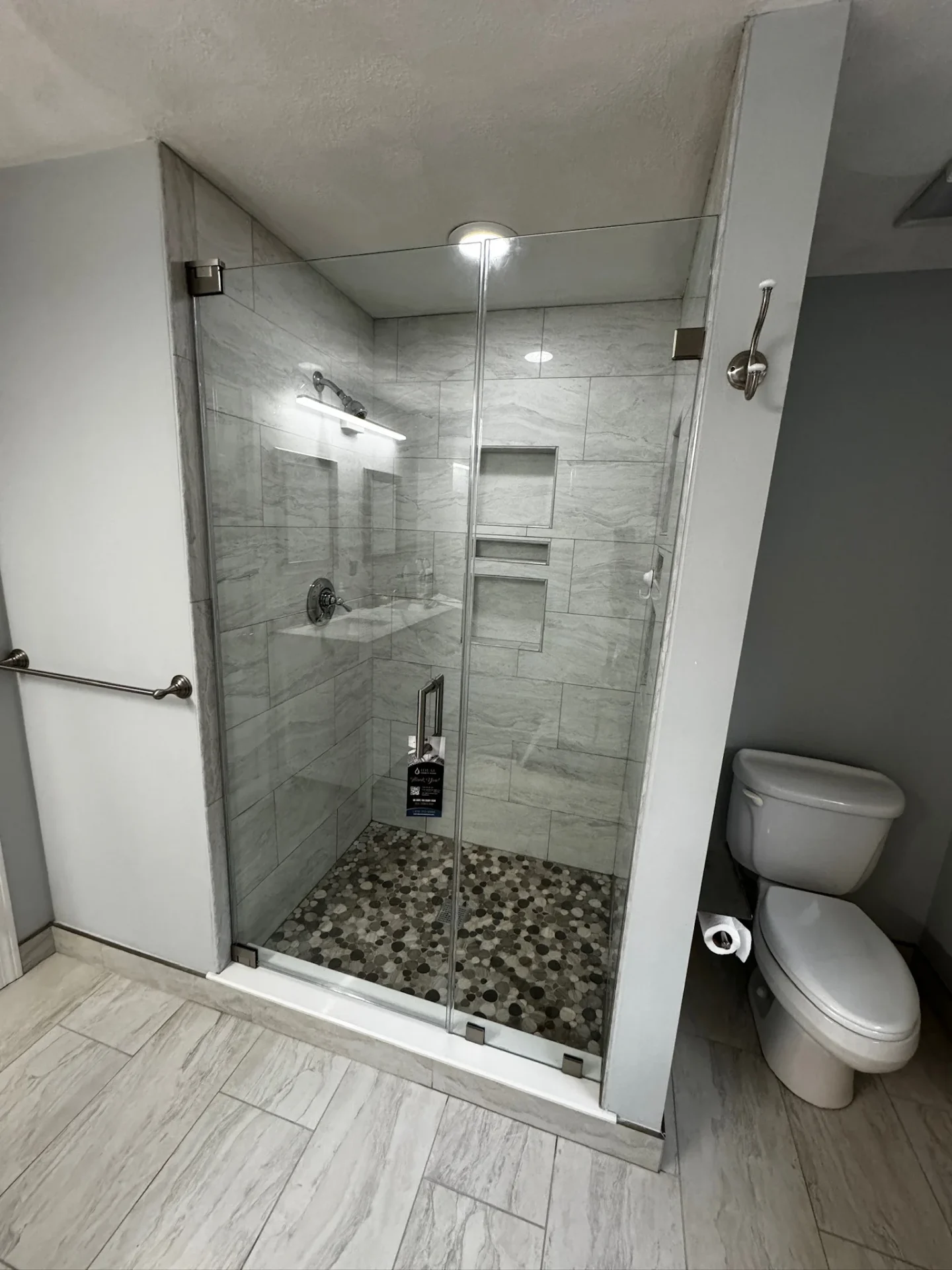

Site Prep and Hardware Fit: Brushed Nickel Pivot Door, Groveland, MA
Before the glass goes in, we check the walls. This Groveland enclosure uses a frameless door hinged directly off a tiled wall — the pivot hardware mounts flush to the tile surface, so any out-of-plumb condition in that substrate shows in the finished swing. The large-format gray marble-look tile here was flat and well-set, which made templating straightforward. We used IDEAL Crystal Clear Glass for both the door and the fixed panel, and the brushed nickel wall clamps, pivots, and handle bar were all laid out against the actual tile field before anything was drilled or cut.

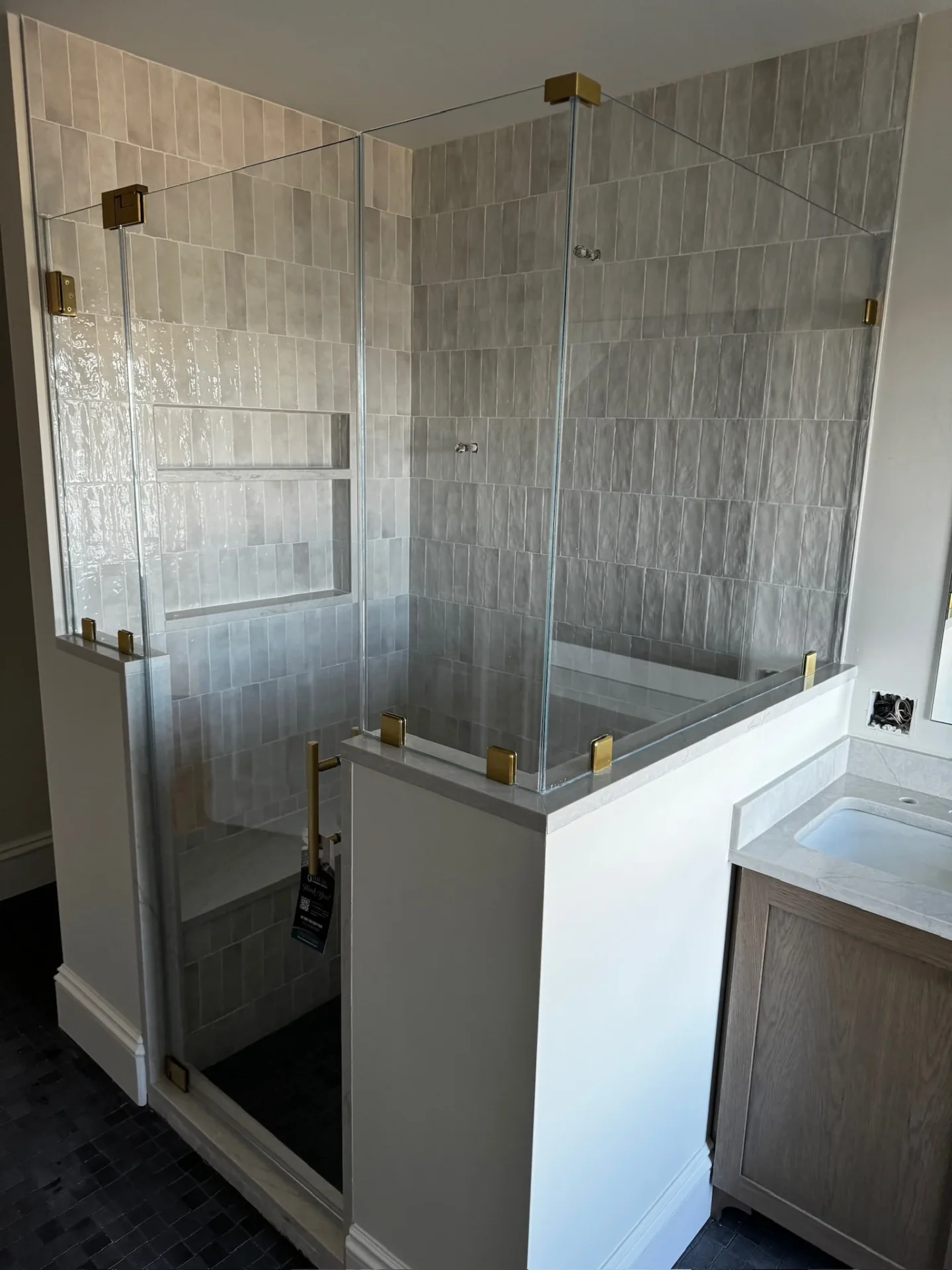

Multi-Panel Layout Over a Knee Wall: Satin Brass Hardware, Beverly, MA
This Beverly job involved more pieces: a swing door, a return panel, and fixed glass spanning a built-in half wall. That configuration requires a header bar across the top to keep every panel in line, and every clip and wall clamp you see is polished satin brass. Getting the header level when you’re bridging a full tiled wall and a knee wall cap takes precise templating — the two surfaces are rarely at the same height. The stacked vertical subway tile gave us clean reference lines, and the glass was cut to actual field dimensions, not a nominal spec.

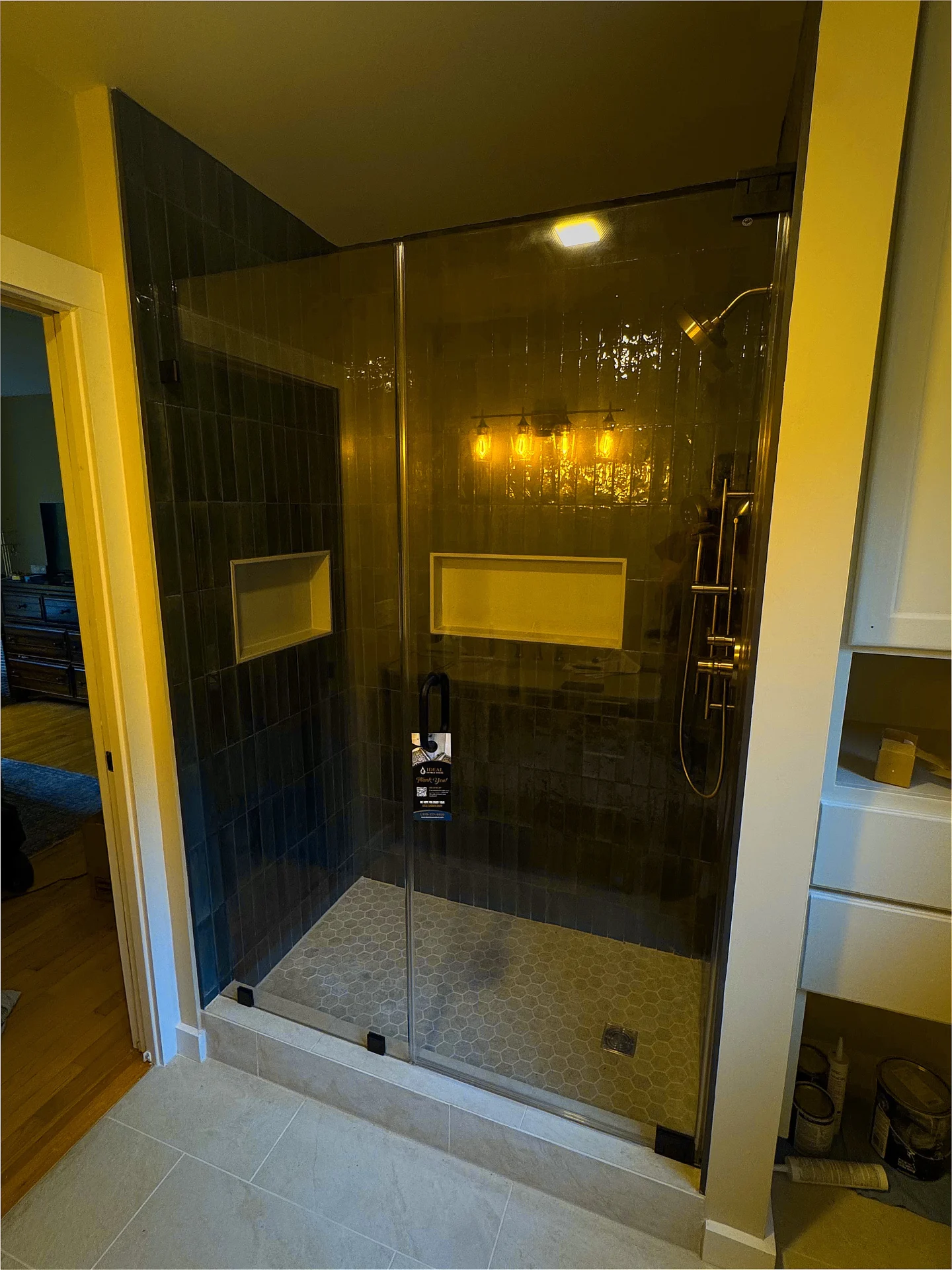

Final Adjustment and Sweep Seal: Matte Black Pivot Enclosure, Mont Vernon, NH
The last phase of any installation is hardware adjustment and sweep seal verification. This Mont Vernon enclosure uses matte black pivots at the top and bottom of the door — the upper pivot controls swing tension and the lower sets final plumb. Once locked, the sweep seal gets trimmed to the floor and checked for contact across its full width. If you want to understand how the sweep works, our post on shower door sweep seals covers the mechanics. The dark charcoal subway tile was a natural pairing for the black hardware, and the hex mosaic floor gave us a stable reference for setting threshold height.
Frequently Asked Questions
What should I prepare before your crew arrives for installation?
Clear everything out of the shower pan — no tools, grout buckets, or construction debris. Walls need to be fully tiled and grouted at least 24 hours before we arrive. We also need about three feet of clear working space in front of the opening to safely set glass.
What’s the difference between pivot and bi-fold shower door hardware?
A pivot door is a single glass lite that rotates on a top and bottom pivot pin — it swings in or out and handles heavier glass (3/8″ to 1/2″ tempered) without issue. A bi-fold folds on a central hinge to reduce the swing clearance needed. Most of the jobs we get from homeowners searching for frameless shower door installation near me in the Beverly and Danvers area end up as pivot configurations — they have the floor space, and pivot hardware is simpler, more rigid, and has fewer parts to maintain.
What does a frameless shower door installation typically cost on the North Shore?
Most jobs we do across Danvers, Beverly, Salem, and Marblehead run between $800 and $2,500 depending on configuration — a basic inline pivot door is at the lower end, while multi-panel enclosures with specialty hardware land higher. That range covers templating, glass, hardware, and installation. We offer free in-home measurements across the North Shore, so the number you get is based on your actual opening, not a rough estimate.
What You Can Expect After the Crew Leaves
Once the job is done, the enclosure is ready to use after the silicone seal cures — give it 24 hours before running the shower. Pivot tension may need a minor tweak after the first few weeks of use; a standard hex key handles it. Our crews work regularly across Danvers, Beverly, Salem, Marblehead, Swampscott, Lynn, Peabody, and Middleton, and every installation gets the same final walk-through: we check the swing, the sweep contact, and the seal before we leave. If anything shifts after install, reach out to our team and we’ll make it right.
To schedule your free in-home measurement, call us at (978) 777-9900 or fill out our contact form. Our Design Team will walk you through hardware options, glass thickness, and configuration before anything gets measured.
