Shower Door Hinge – Trento 074 Wall Mount, Short Back Plate — Polished Chrome
A square-edged wall mount hinge with a short back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

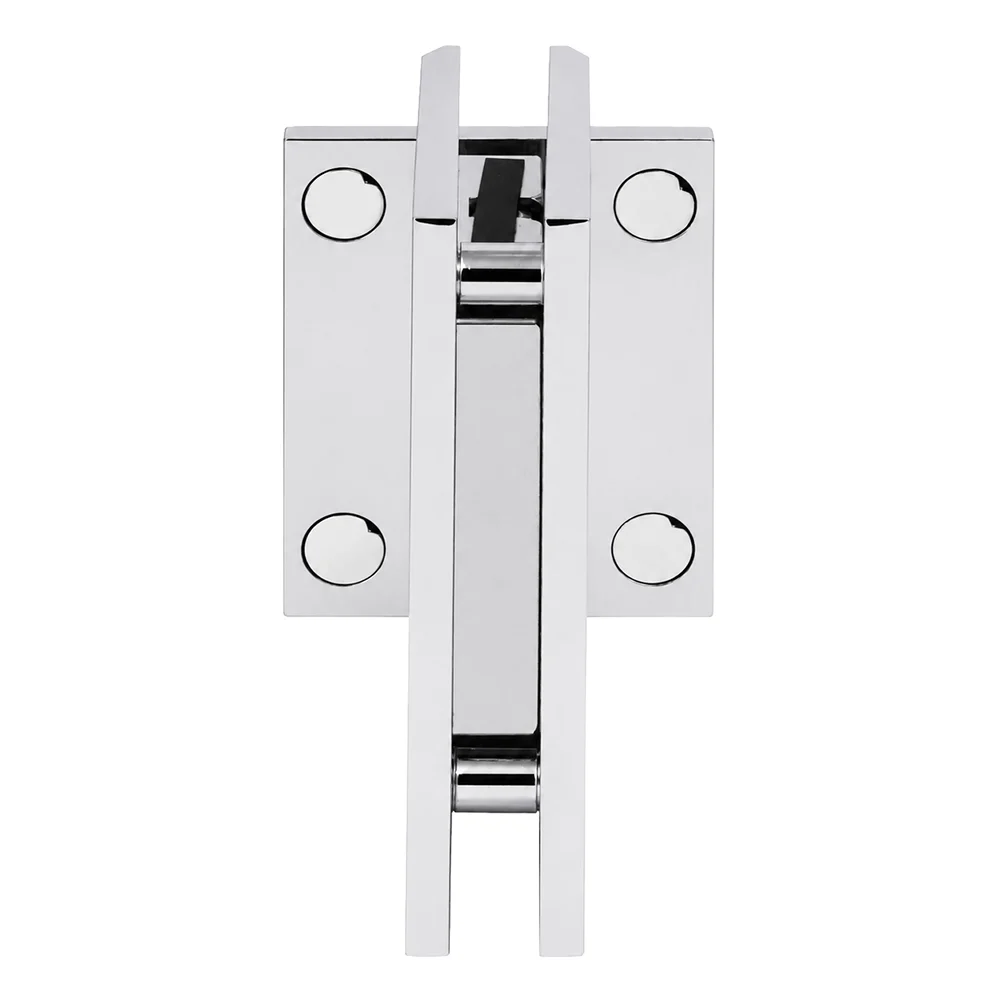

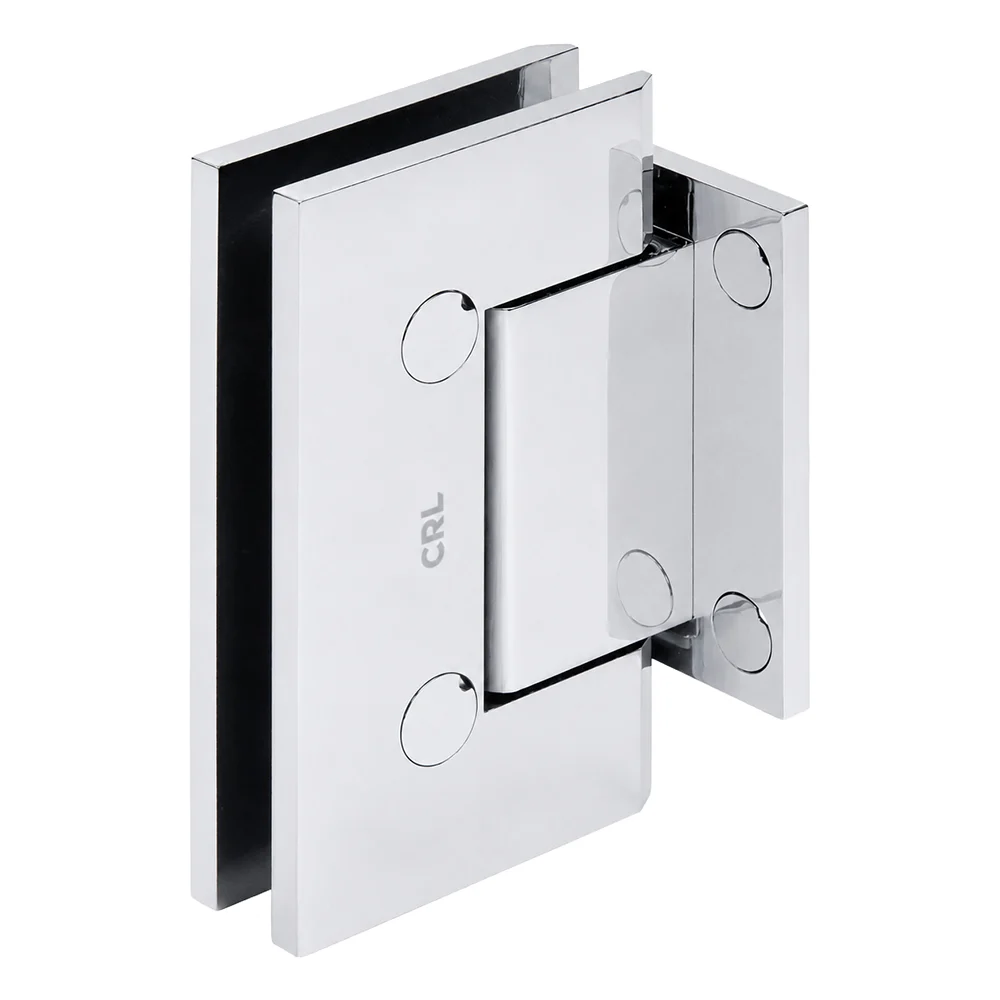

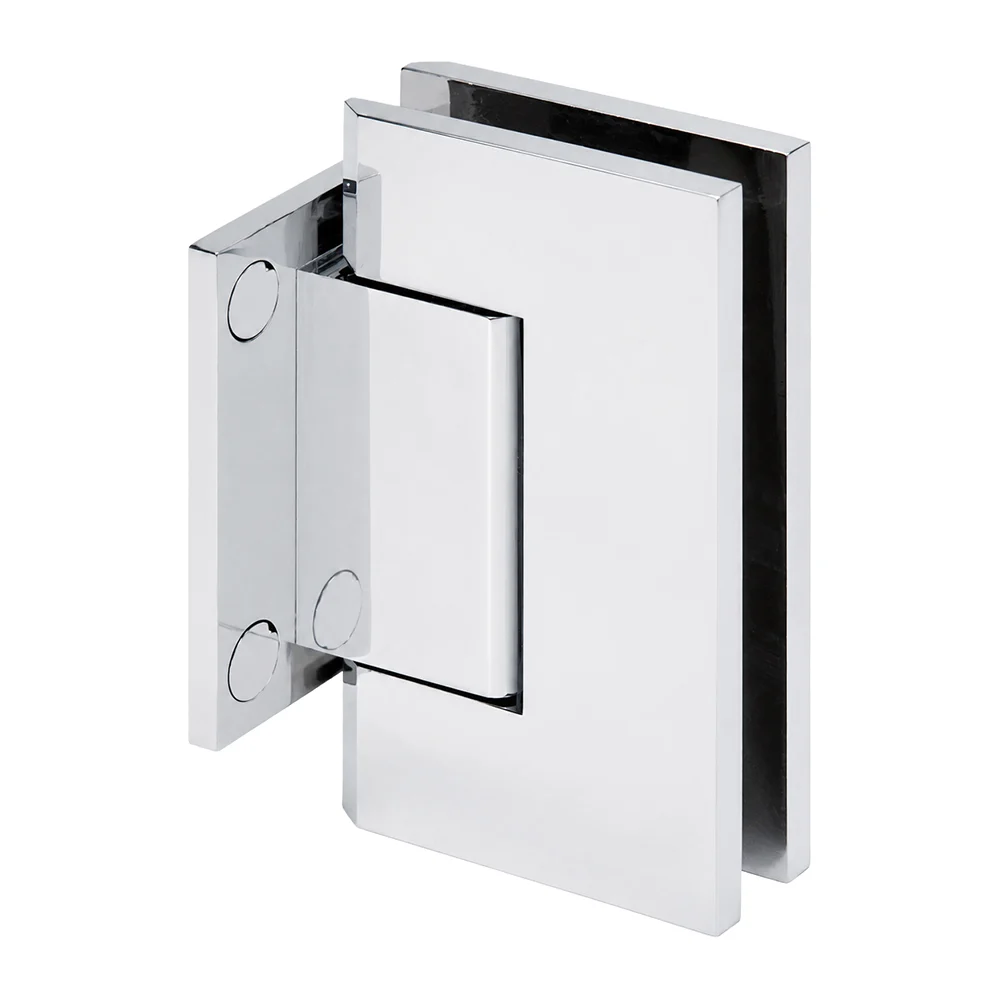

The CRL Trento 074 Series Wall Mount Short Back Plate Hinge (TNT074) is a wall mount hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
The CRL Trento 074 Series Wall Mount Short Back Plate Hinge (TNT074). It mounts the door to the wall with a short back plate. It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 150 lb and 40" wide; three hold up to 190 lb. The part that clamps onto the glass is 4" x 2-5/16" (tall x wide). The glass needs a mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart, per CRL's template. Made of brass body with stainless steel back plate.
- Fits 3/8" to 1/2" glass
- Holds a door up to 150 lb with 2 hinges
- Doors up to 40" wide
- 4" x 2-5/16" on the glass
- Glass cut-out: a mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 5 |
|---|---|
| CRL model | TNT074 |

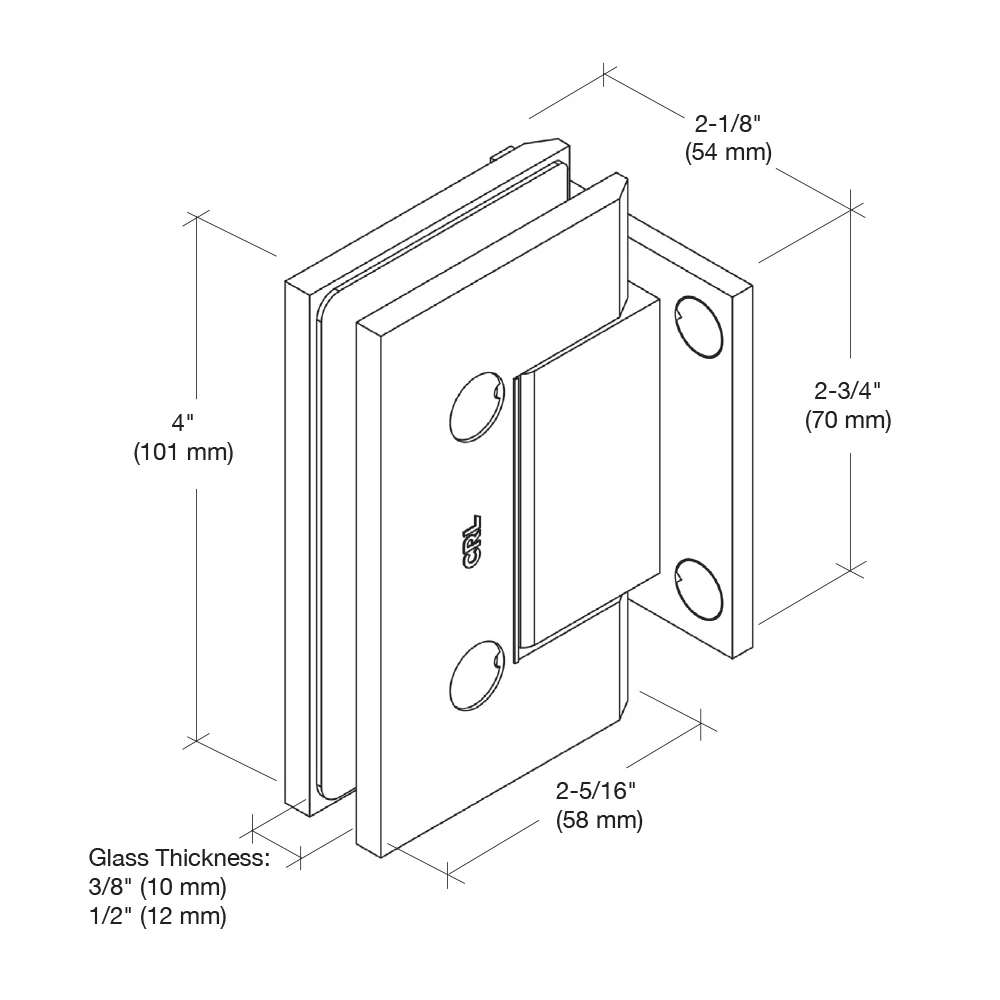

| Size on the glass (tall x wide) | 4" x 2-5/16" |
| Glass cut-out | A mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart |
| Max door weight | 150 lb with 2 hinges, 190 lb with 3 |
| Max door width | 40" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Short |
| Design Style | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |
| Height | 4 in. (102 mm) |
| Material | Brass Body with Stainless Steel Back Plate |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 150 lbs. (68 kg) |
| Maximum Door Weight - 3 Hinges | 190 lbs. (86 kg) |
| Maximum Door Width | 40 in. (1016 mm) |
| Maximum Door Width - 1/2 Glass - 2 Hinges | 150 lbs. (68 kg) |
| Maximum Door Width - 1/2 Glass - 3 Hinges | 190 lbs. (86 kg) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Positive Close | No |
| Self-Centering | Yes |
| Series | Trento |
| Width | 2-5/16 in. (58 mm) |
Glass cut-out
This hinge needs a mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL TNT074 hinge fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch or a rectangular notch 3" long x 1-15/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 4" x 2-5/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 150 lb and 40" wide, three hold up to 190 lb.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
