Shower Door Hinge – Atlas Wall Mount, Full Back Plate — Polished Chrome
A beveled wall mount hinge with a full back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.

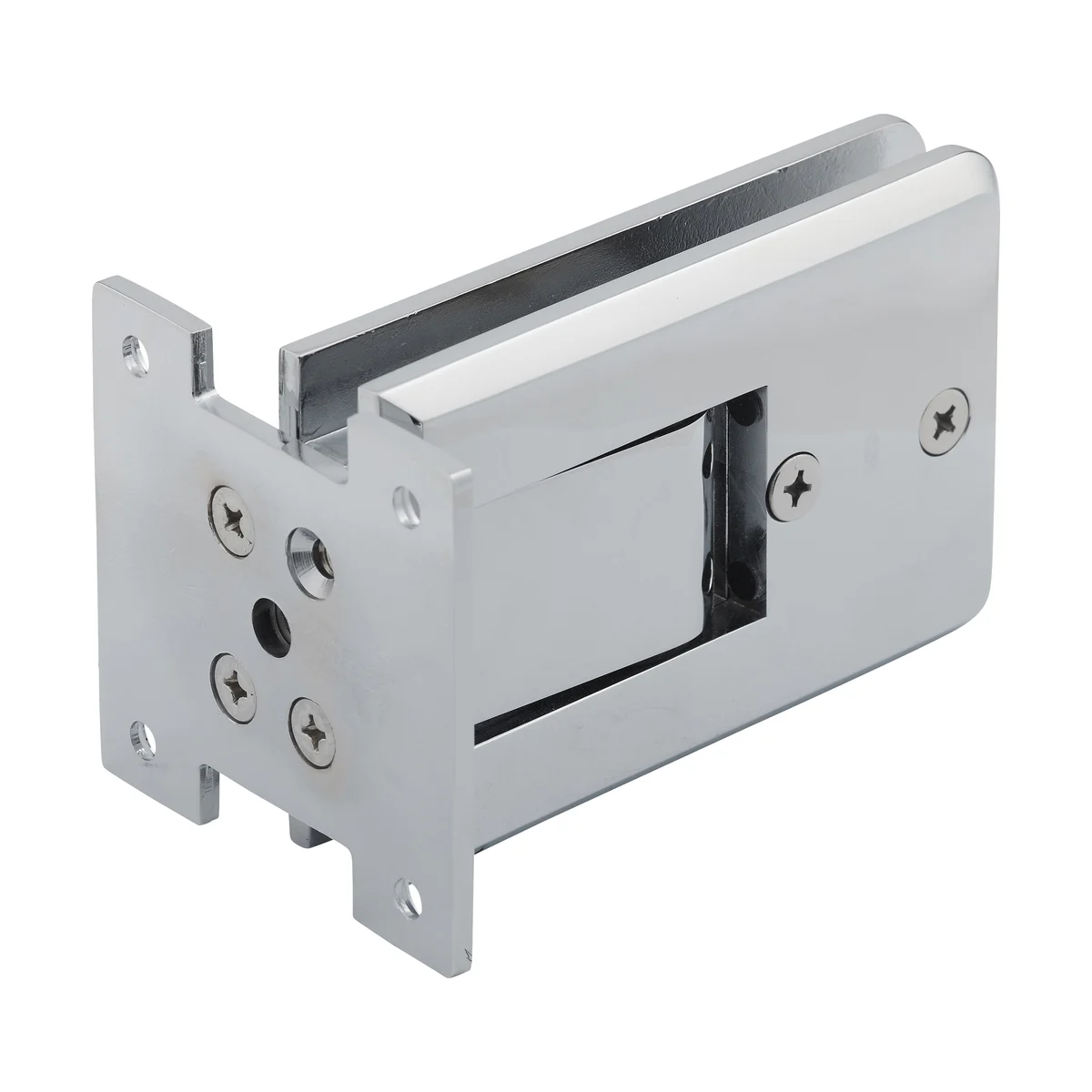

About this hinge
The CRL Atlas Glass Door Hinge (ATL01) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 1/2" glass, and needs a rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart in the glass. Made by C.R. Laurence (CRL) in 3 finishes, including polished chrome, brushed nickel, matte black.
The CRL Atlas Glass Door Hinge (ATL01). It mounts the door to the wall with a full back plate. It fits 5/16" to 1/2" thick tempered glass. Two hinges hold a door up to 140 lb and 39" wide. The part that clamps onto the glass is 3-9/16" x 5-7/8" (tall x wide). The glass needs a rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart, per CRL's template. Made of brass.
- Fits 5/16" to 1/2" glass
- Holds a door up to 140 lb with 2 hinges
- Doors up to 39" wide
- 3-9/16" x 5-7/8" on the glass
- Glass cut-out: a rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart
- Adjustable, to fine-tune the door after it is hung
Specs
| Finishes | 3 |
|---|---|
| CRL model | ATL01 |

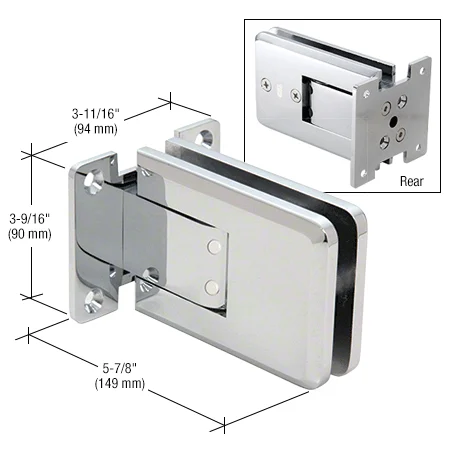

| Size on the glass (tall x wide) | 3-9/16" x 5-7/8" |
| Glass cut-out | A rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart |
| Max door weight | 140 lb with 2 hinges |
| Max door width | 39" |
| Adjustable | Yes |
| Back Plate | Full |
| Edge Profile | Beveled |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 3-9/16 in. (90 mm) |
| Material | Brass |
| Maximum Door Weight | 140 lbs. (64 kg.) |
| Maximum Door Weight - 2 Hinges | 140 lbs. (64 kg.) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Atlas |
| Width | 5-7/8 in. (149 mm) |
Glass cut-out
This hinge needs a rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL ATL01 hinge fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A rectangular notch 2-1/2" long x 3-7/8" deep, holes 1-1/2" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-9/16" x 5-7/8" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 140 lb and 39" wide.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
