Shower Door Hinge – Bellagio 344 Adjustable, Offset Back Plate — Brushed Nickel
A wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

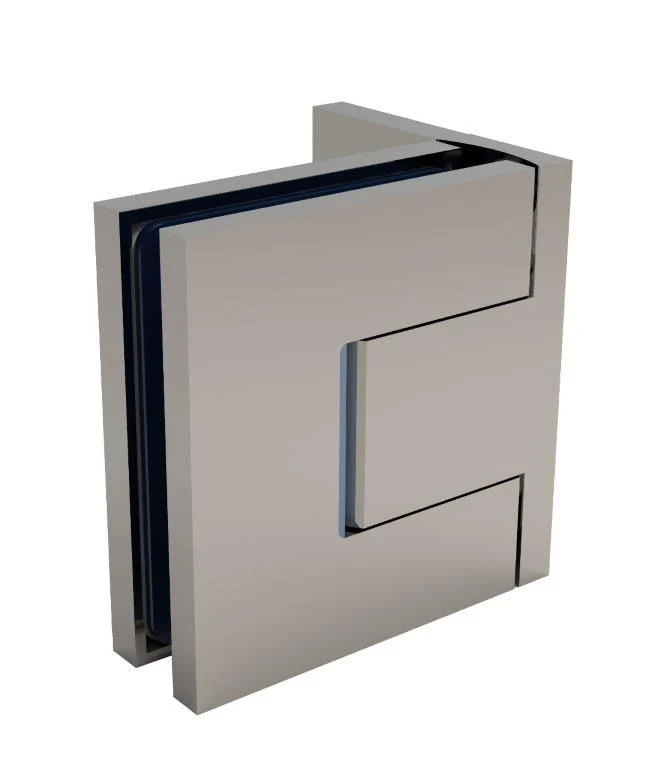

The CRL Bellagio Adjustable Wall Mount Offset Back Plate Hinge (BEL344) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs a rectangular notch 2-5/16" long x 1-7/8" deep in the glass. Made by C.R. Laurence (CRL) in 3 finishes, including brushed nickel, matte black, brushed bronze.
The CRL Bellagio Adjustable Wall Mount Offset Back Plate Hinge (BEL344). It mounts the door to the wall with an offset back plate. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 110 lb and 39" wide. The part that clamps onto the glass is 2-15/16" x 2-15/16" (tall x wide). The glass needs a rectangular notch 2-5/16" long x 1-7/8" deep, per CRL's template. It takes the same glass cut-out as the Bellagio 380. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 110 lb
- Doors up to 39" wide
- 2-15/16" x 2-15/16" on the glass
- Glass cut-out: a rectangular notch 2-5/16" long x 1-7/8" deep
Specs
| Finishes | 3 |
|---|---|
| CRL model | BEL344 |
| Size on the glass (tall x wide) | 2-15/16" x 2-15/16" |
| Glass cut-out | A rectangular notch 2-5/16" long x 1-7/8" deep |
| Max door weight | 110 lb |
| Max door width | 39" |
| Back Plate | Offset |
| Design Style | Concealed/Premium |
| Edge Profile | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height | 2-15/16 in. (75 mm) |
| Material | Brass |
| Maximum Door Weight | 110 |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Series | Bellagio |
| Width | 2-15/16 in. (75 mm) |
Glass cut-out
This hinge needs a rectangular notch 2-5/16" long x 1-7/8" deep in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (1): these fit the same glass.
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL BEL344 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A rectangular notch 2-5/16" long x 1-7/8" deep, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 2-15/16" x 2-15/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 110 lb and 39" wide.
Which other hinges use the same cut-out?
Glass to Glass Shower Door Hinge 180° – Bellagio 380. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Brushed Nickel, Matte Black, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
