Shower Door Hinge – Como 044 Outswing Wall Mount, Offset Back Plate — Polished Chrome
A wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

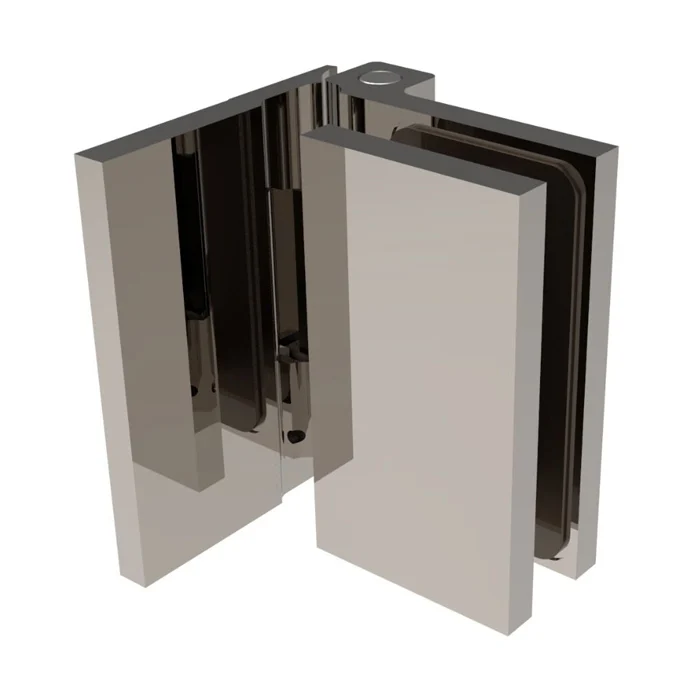

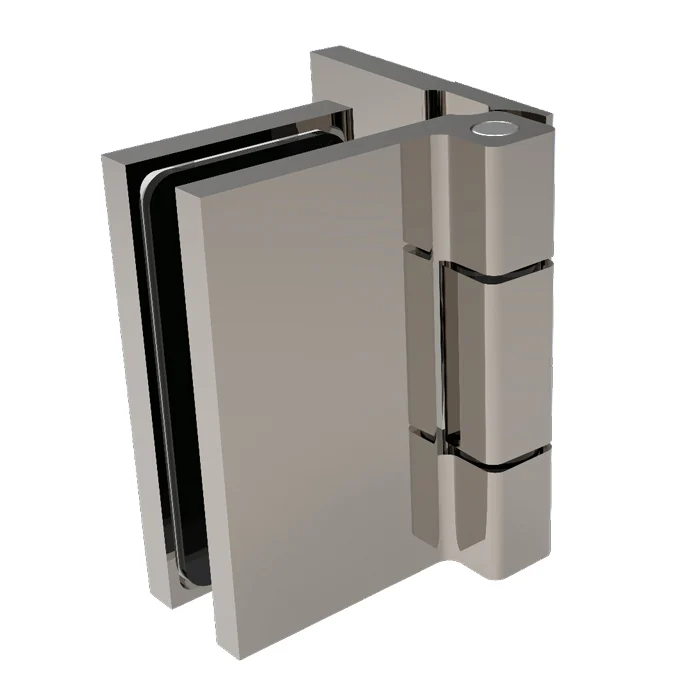

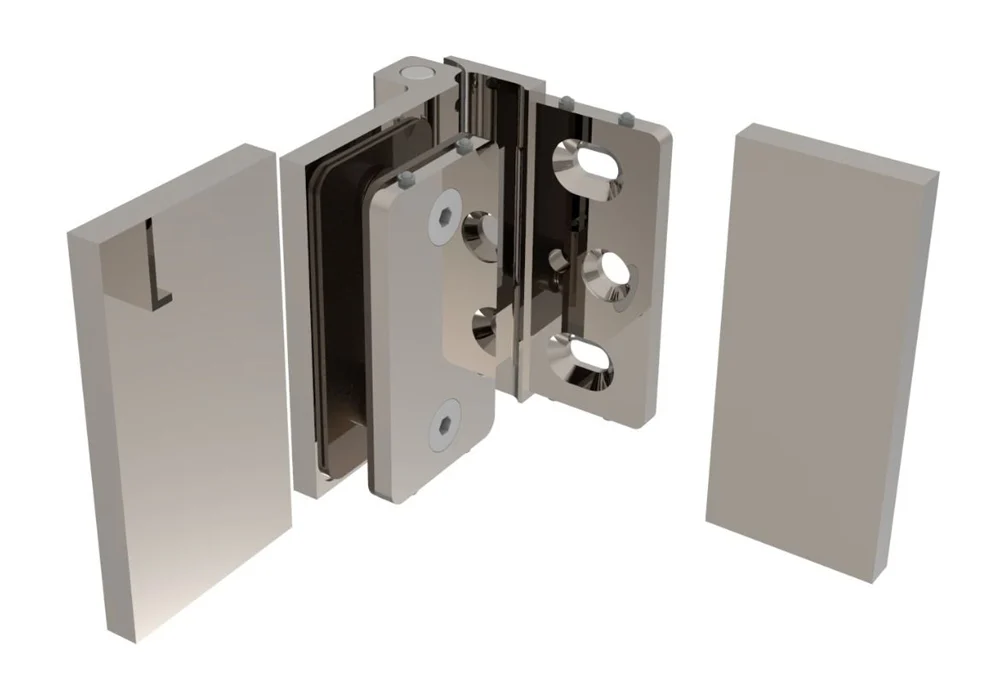

The CRL Como Series Wall Mount Outswing Hinge (C0M044) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
The CRL Como Series Wall Mount Outswing Hinge (C0M044). It mounts the door to the wall with an offset back plate. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 110 lb and 39" wide. The part that clamps onto the glass is 3-1/8" x 2-9/16" (tall x wide). Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 110 lb
- Doors up to 39" wide
- 3-1/8" x 2-9/16" on the glass
Specs
| Finishes | 5 |
|---|---|
| CRL model | C0M044 |
| Size on the glass (tall x wide) | 3-1/8" x 2-9/16" |
| Max door weight | 110 lb |
| Max door width | 39" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Design Style | Concealed/Premium |
| Edge Profile | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Door Weight | 110 lbs. (49.9 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Self-Centering | No |
| Series | Como |
| Width | 2-9/16 in. (36.5 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL C0M044 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/8" x 2-9/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 110 lb and 39" wide.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
