Glass to Glass Shower Door Hinge 180° – Como 180 — Brushed Nickel
A 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

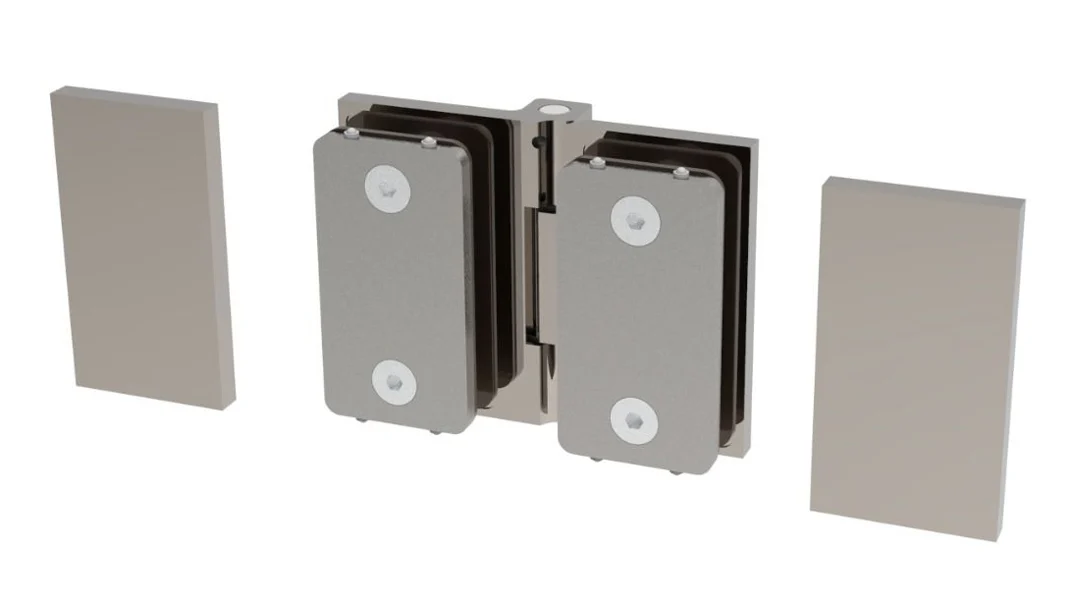

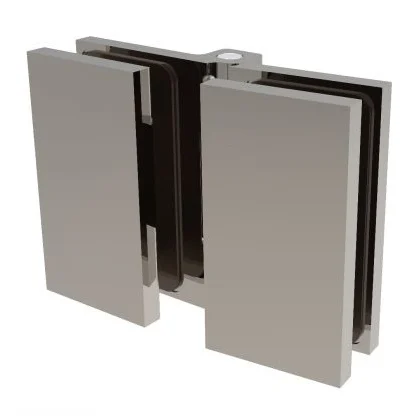

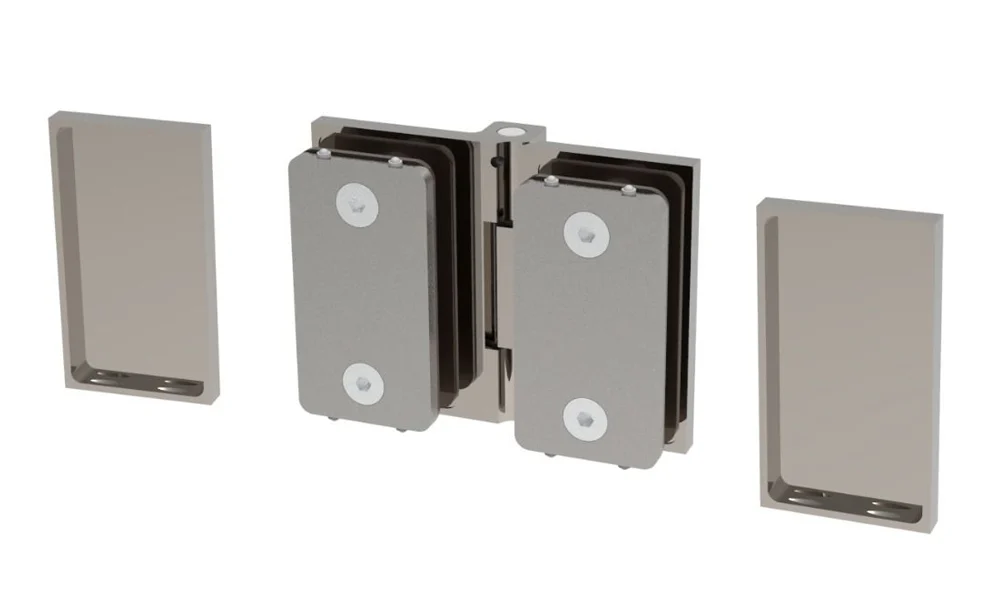

The CRL Como Series 180°Glass-to-Glass hinge (C0M180) is a glass-to-glass hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass. Made by C.R. Laurence (CRL) in 4 finishes, including brushed nickel, matte black, satin brass.
The CRL Como Series 180°Glass-to-Glass hinge (C0M180). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 110 lb and 39" wide. The part that clamps onto the glass is 3-1/8" tall. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 110 lb
- Doors up to 39" wide
- 3-1/8" tall on the glass
Specs
| Finishes | 4 |
|---|---|
| CRL model | C0M180 |
| Size on the glass (tall x wide) | 3-1/8" tall |
| Max door weight | 110 lb |
| Max door width | 39" |
| Design Style | Concealed/Premium |
| Edge Profile | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Door Weight | 110 lbs. (49.9 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Self-Centering | No |
| Series | Como |
| Swing | Outswing Only |
| Width - Door Portion | 2-1/16 in. (52 mm) |
| Width - Sidelite Portion | 2-1/16 in. (52.4 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL C0M180 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/8" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 110 lb and 39" wide.
What finishes does it come in?
Brushed Nickel, Matte Black, Satin Brass, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
