Shower Door Hinge – Half Round Light Duty, Offset Back Plate — Polished Chrome
A wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

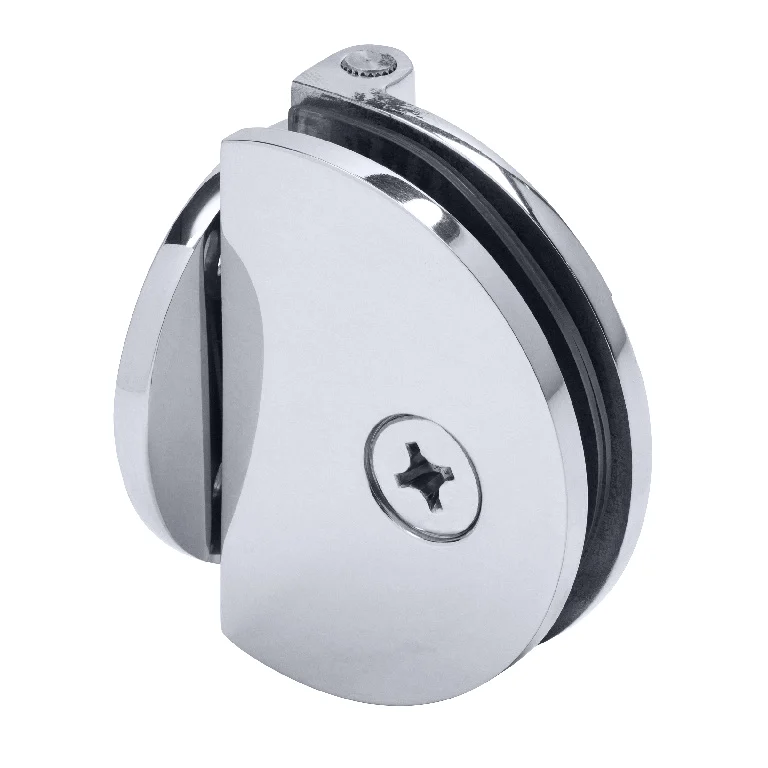

The CRL Half Round Light Duty Frameless Shower Door Hinge (EH184) is a wall mount hinge for frameless glass shower doors; it fits 1/4" to 5/16" glass. Made by C.R. Laurence (CRL) in polished chrome.

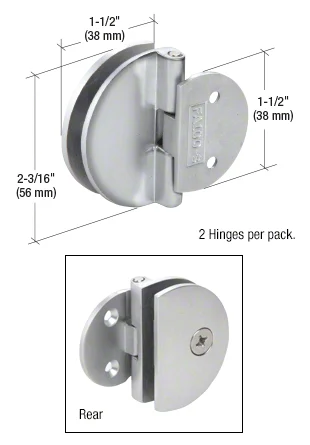

The CRL Half Round Light Duty Frameless Shower Door Hinge (EH184). It mounts the door to the wall with an offset back plate. It fits 1/4" to 5/16" thick tempered glass. Two hinges hold a door up to 50 lb and 24" wide; three hold up to 75 lb. The part that clamps onto the glass is 2-3/16" x 1-1/2" (tall x wide). Made of brass.
- Fits 1/4" to 5/16" glass
- Holds a door up to 50 lb with 2 hinges
- Doors up to 24" wide
- 2-3/16" x 1-1/2" on the glass
Specs
| Finishes | 1 |
|---|---|
| CRL model | EH184 |

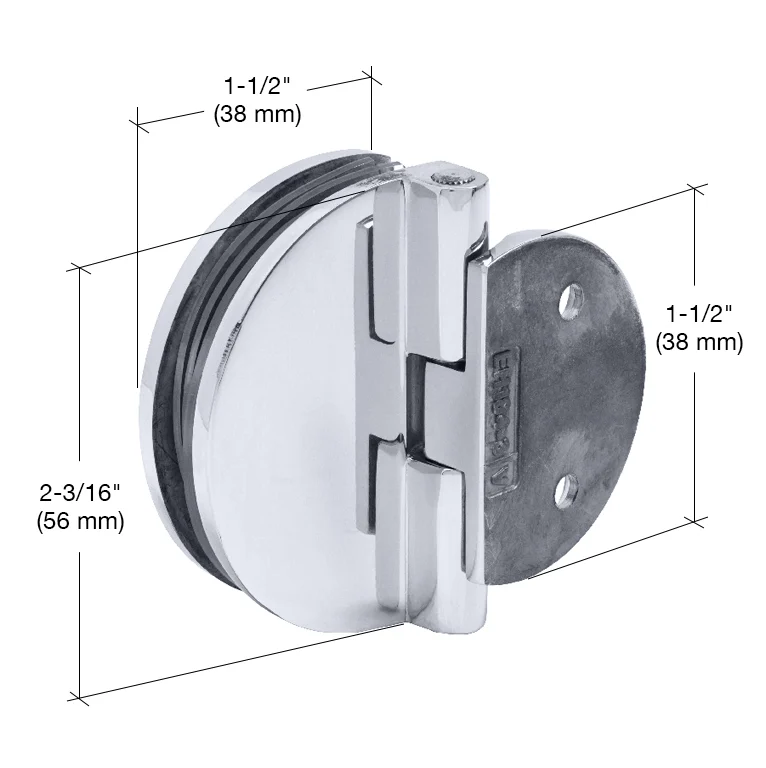

| Size on the glass (tall x wide) | 2-3/16" x 1-1/2" |
| Max door weight | 50 lb with 2 hinges, 75 lb with 3 |
| Max door width | 24" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Edge Profile | Square |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |
| Height | 2-3/16 in. (56 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges | 50 lbs. (22.7 kg) |
| Maximum Door Weight - 3 Hinges | 75 lbs. (34 kg) |
| Maximum Door Width | 24 in. (610 mm) |
| Mounting Type | Wall Mount |
| Width | 1-1/2 in. (38 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL EH184 hinge fit?
1/4" to 5/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 2-3/16" x 1-1/2" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 50 lb and 24" wide, three hold up to 75 lb.
What finishes does it come in?
Polished Chrome. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
