Shower Door Hinge – Geneva 280 Pony Wall Mount 180°, Short Back Plate — Brushed Nickel
A square-edged wall mount hinge with a short back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

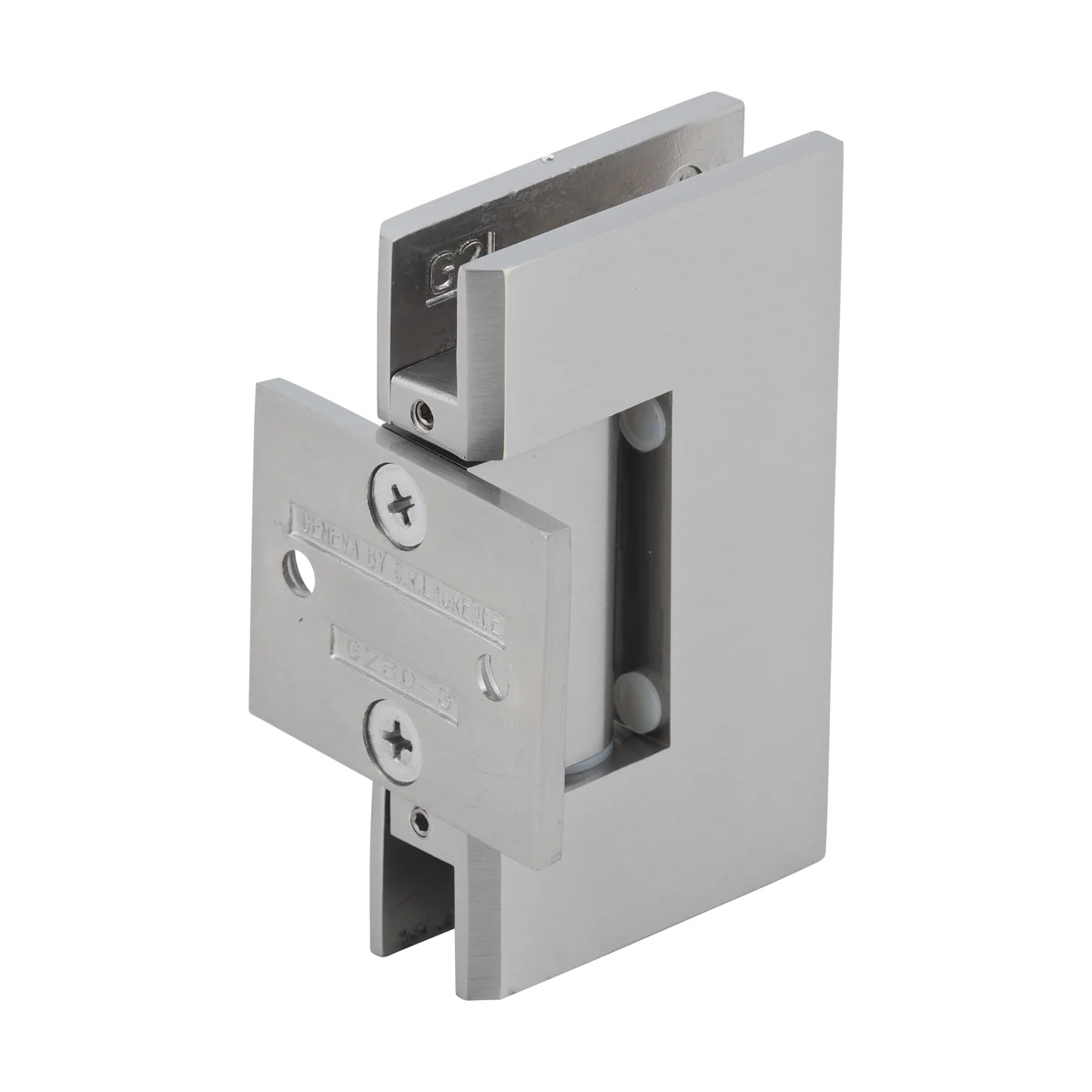

The CRL Geneva 280 Series 180 Degree Pony Wall Mount Hinge (GEN280) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 1/2" glass, and needs a mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart in the glass. Made by C.R. Laurence (CRL) in brushed nickel.

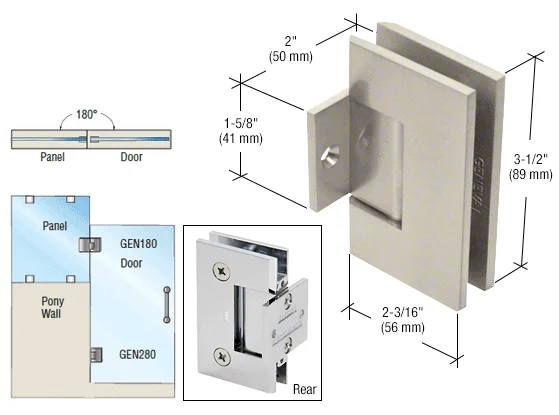

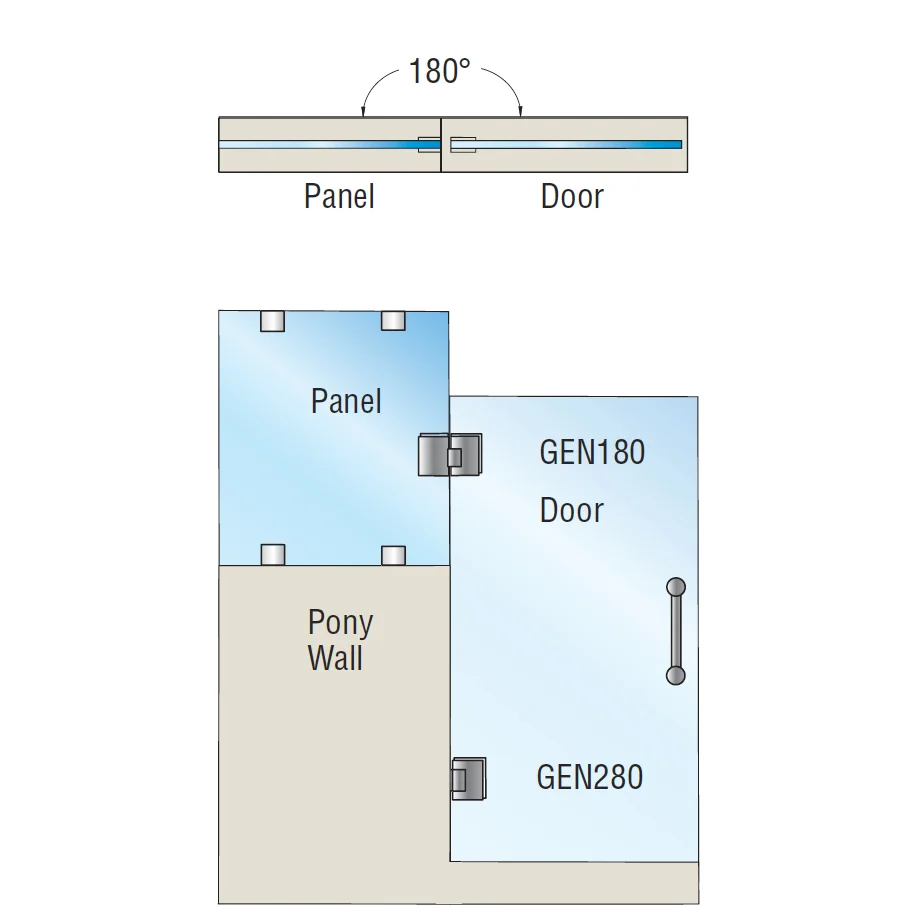

The CRL Geneva 280 Series 180 Degree Pony Wall Mount Hinge (GEN280). It mounts the door to the wall with a short back plate. It fits 5/16" to 1/2" thick tempered glass. Two hinges hold a door up to 80 lb and 28" wide; three hold up to 120 lb. The part that clamps onto the glass is 3-1/2" x 2-3/16" (tall x wide). The glass needs a mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart, per CRL's template. Made of brass.
- Fits 5/16" to 1/2" glass
- Holds a door up to 80 lb with 2 hinges
- Doors up to 28" wide
- 3-1/2" x 2-3/16" on the glass
- Glass cut-out: a mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 1 |
|---|---|
| CRL model | GEN280 |

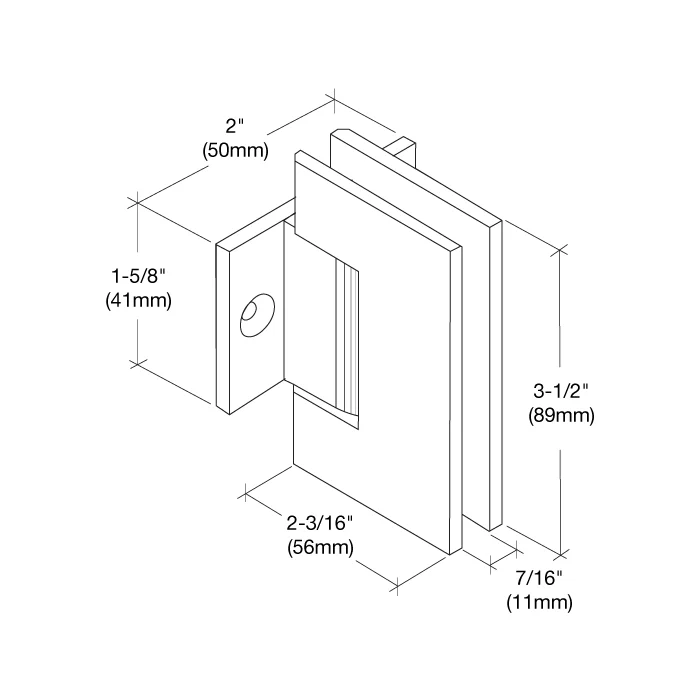

| Size on the glass (tall x wide) | 3-1/2" x 2-3/16" |
| Glass cut-out | A mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart |
| Max door weight | 80 lb with 2 hinges, 120 lb with 3 |
| Max door width | 28" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Short |
| Edge Profile | Square |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width - 2 Hinges | 28 |
| Maximum Door Width - 3 Hinges | 32 |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Geneva |
| Width | 2-3/16 in. (56 mm) |
Glass cut-out
This hinge needs a mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

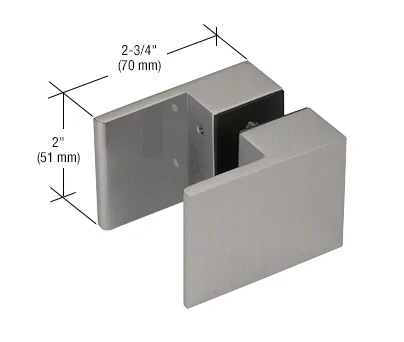

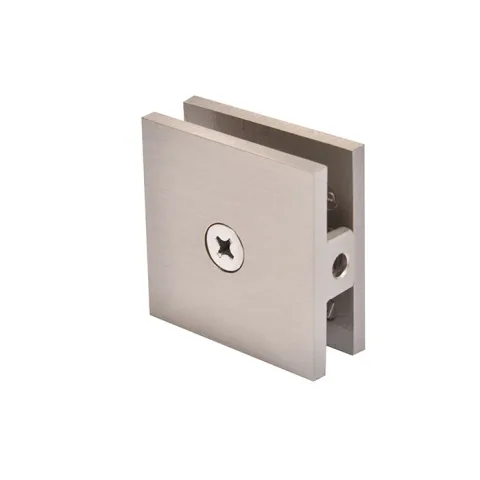

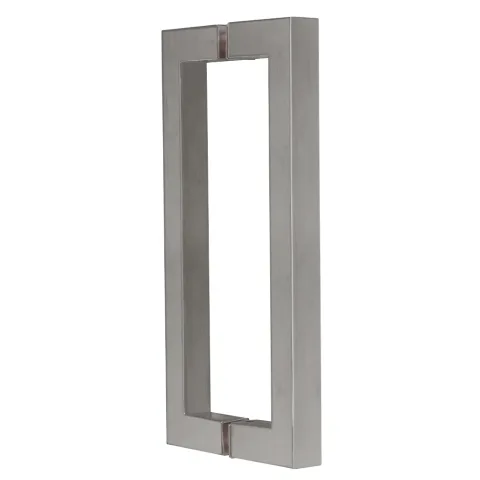

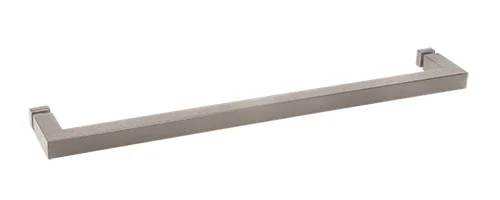

Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL GEN280 hinge fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 2-1/2" long x 1-11/16" deep, holes 2-1/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/2" x 2-3/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 80 lb and 28" wide, three hold up to 120 lb.
What finishes does it come in?
Brushed Nickel. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
