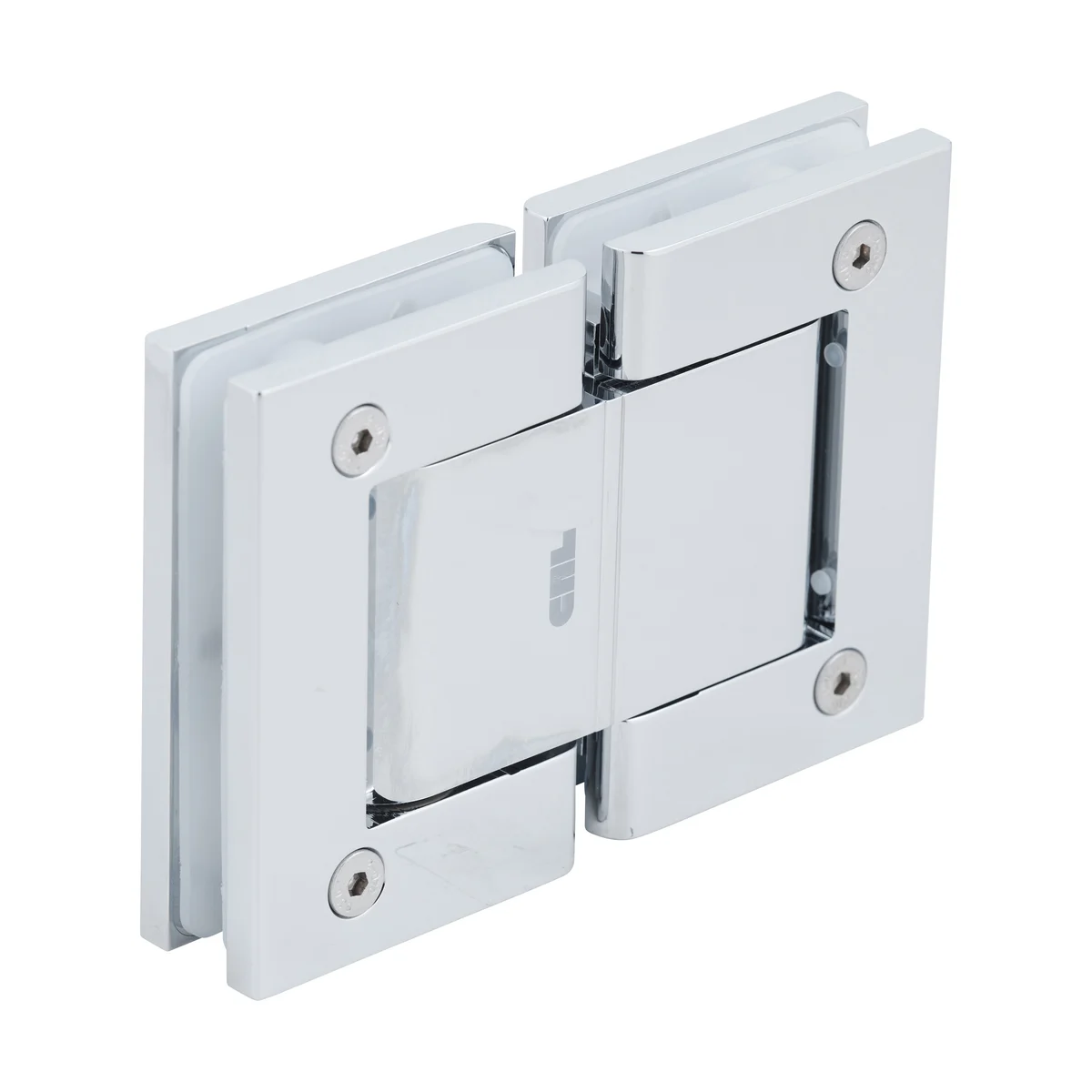

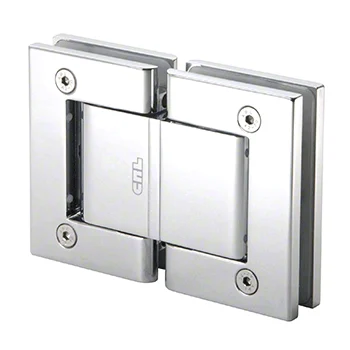

Glass to Glass Shower Door Hinge 180° – Vernon Oil Dynamic — Polished Chrome
A square-edged 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Vernon Oil Dynamic 180º Glass-to-Glass Hinge (H8015BT) is a glass-to-glass hinge for frameless glass shower doors; it fits 5/16" to 9/16" glass, and needs a mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart in the glass. Made by C.R. Laurence (CRL) in 2 finishes, including polished chrome, satin nickel.
The CRL Vernon Oil Dynamic 180º Glass-to-Glass Hinge (H8015BT). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 5/16" to 9/16" thick tempered glass. Two hinges hold a door up to 176 lb and 39" wide. The part that clamps onto the glass is 4-1/4" tall. The glass needs a mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart, per CRL's template. It takes the same glass cut-out as the Vernon 8010. Made of aluminum.
- Fits 5/16" to 9/16" glass
- Holds a door up to 176 lb with 2 hinges
- Doors up to 39" wide
- 4-1/4" tall on the glass
- Glass cut-out: a mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart
- Self-closing with adjustable closing speed
Specs
| Finishes | 2 |
|---|---|
| CRL model | H8015BT |
| Size on the glass (tall x wide) | 4-1/4" tall |
| Glass cut-out | A mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart |
| Max door weight | 176 lb with 2 hinges |
| Max door width | 39" |
| Adjustable Closing Speed | Yes |
| Edge Profile | Square |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 9/16 in. (8 mm To 14 mm) |
| Height | 4-1/4 in. (108 mm) |
| Hold Open | Yes |
| Material | Aluminum |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 176 lbs. (79.8 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Glass To Glass |
| Self-Closing | Yes |
| Series | Vernon |
| Width - Door Portion | 2-7/8 in. (73 mm) |
| Width - Sidelite Portion | 2-7/8 |
Glass cut-out
This hinge needs a mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (1): these fit the same glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL H8015BT hinge fit?
5/16" to 9/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 3-5/16" long x 2-3/8" deep, holes 3-1/16" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 4-1/4" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 176 lb and 39" wide.
Which other hinges use the same cut-out?
Shower Door Hinge – Vernon Oil Dynamic Wall Mount, Full Back Plate. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Satin Nickel. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
