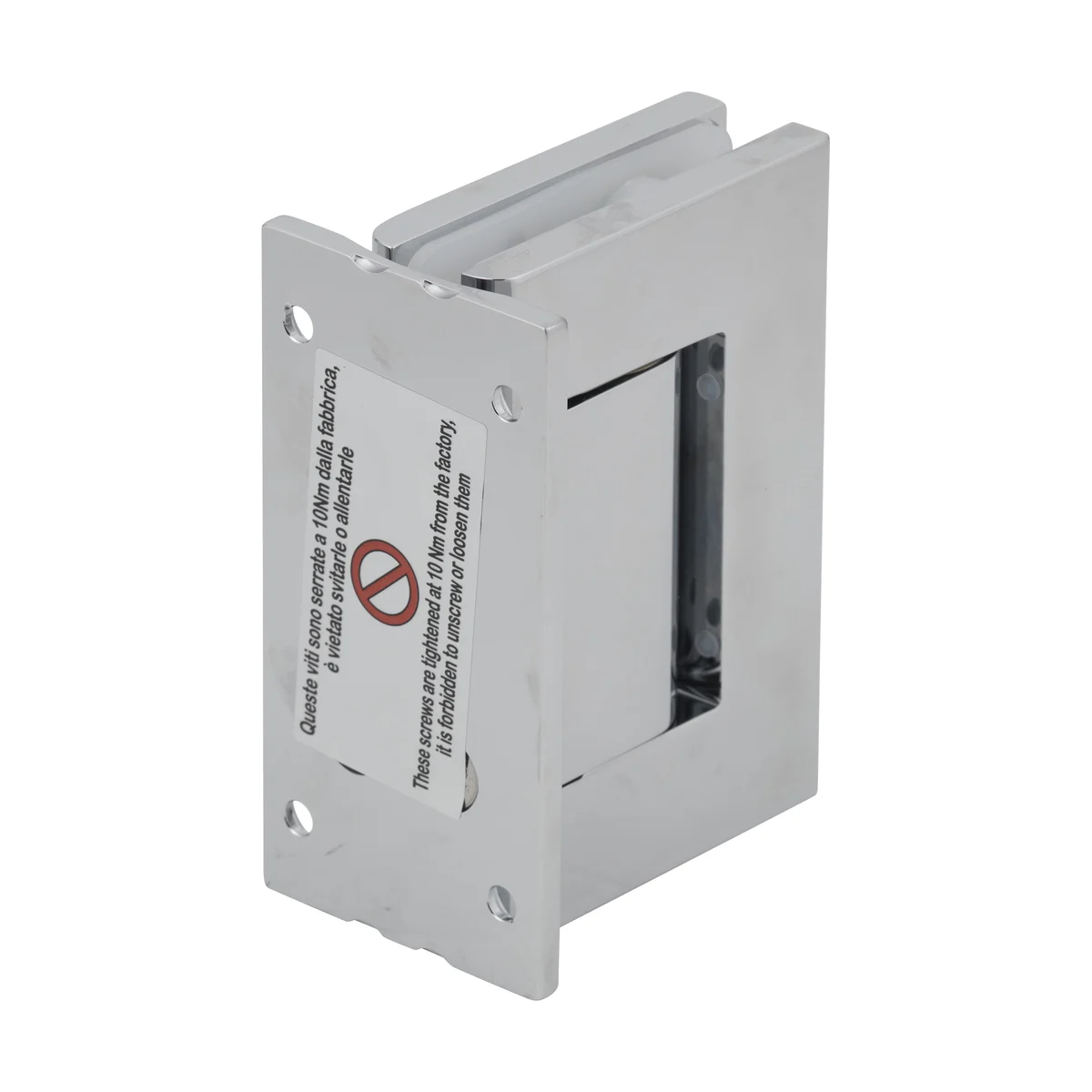

Shower Door Hinge – Vernon Wall Mount, Full Back Plate — Polished Chrome
A square-edged self-closing hydraulic wall mount hinge with a full back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Vernon Wall Mount Full Back Plate Hinge (H8210BT) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 9/16" glass. Made by C.R. Laurence (CRL) in 4 finishes, including polished chrome, matte black, satin nickel.
The CRL Vernon Wall Mount Full Back Plate Hinge (H8210BT). It mounts the door to the wall with a full back plate. It fits 5/16" to 9/16" thick tempered glass. Two hinges hold a door up to 220 lb and 39" wide. The part that clamps onto the glass is 4-1/4" x 2-7/8" (tall x wide). Made of aluminum.
- Fits 5/16" to 9/16" glass
- Holds a door up to 220 lb with 2 hinges
- Doors up to 39" wide

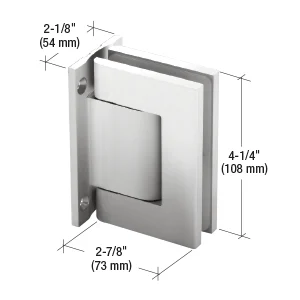

- 4-1/4" x 2-7/8" on the glass
- Self-closing with adjustable closing speed
Specs
| Finishes | 4 |
|---|---|
| CRL model | H8210BT |
| Size on the glass (tall x wide) | 4-1/4" x 2-7/8" |
| Max door weight | 220 lb with 2 hinges |
| Max door width | 39" |
| Adjustable Closing Speed | Yes |
| Back Plate | Full |
| Construction | Solid |
| Edge Profile | Square |
| Glazing Thickness | 5/16 in. To 9/16 in. (8 mm To 14 mm) |
| Height | 4-1/4 |
| Hold Open | No |
| Material | Aluminum |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 220 lbs. (99.8 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Self-Closing | Yes |
| Series | Vernon |
| Width | 2-7/8 in. (73 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL H8210BT hinge fit?
5/16" to 9/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 4-1/4" x 2-7/8" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 220 lb and 39" wide.
What finishes does it come in?
Polished Chrome, Matte Black, Satin Nickel, Satin Anodized. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
