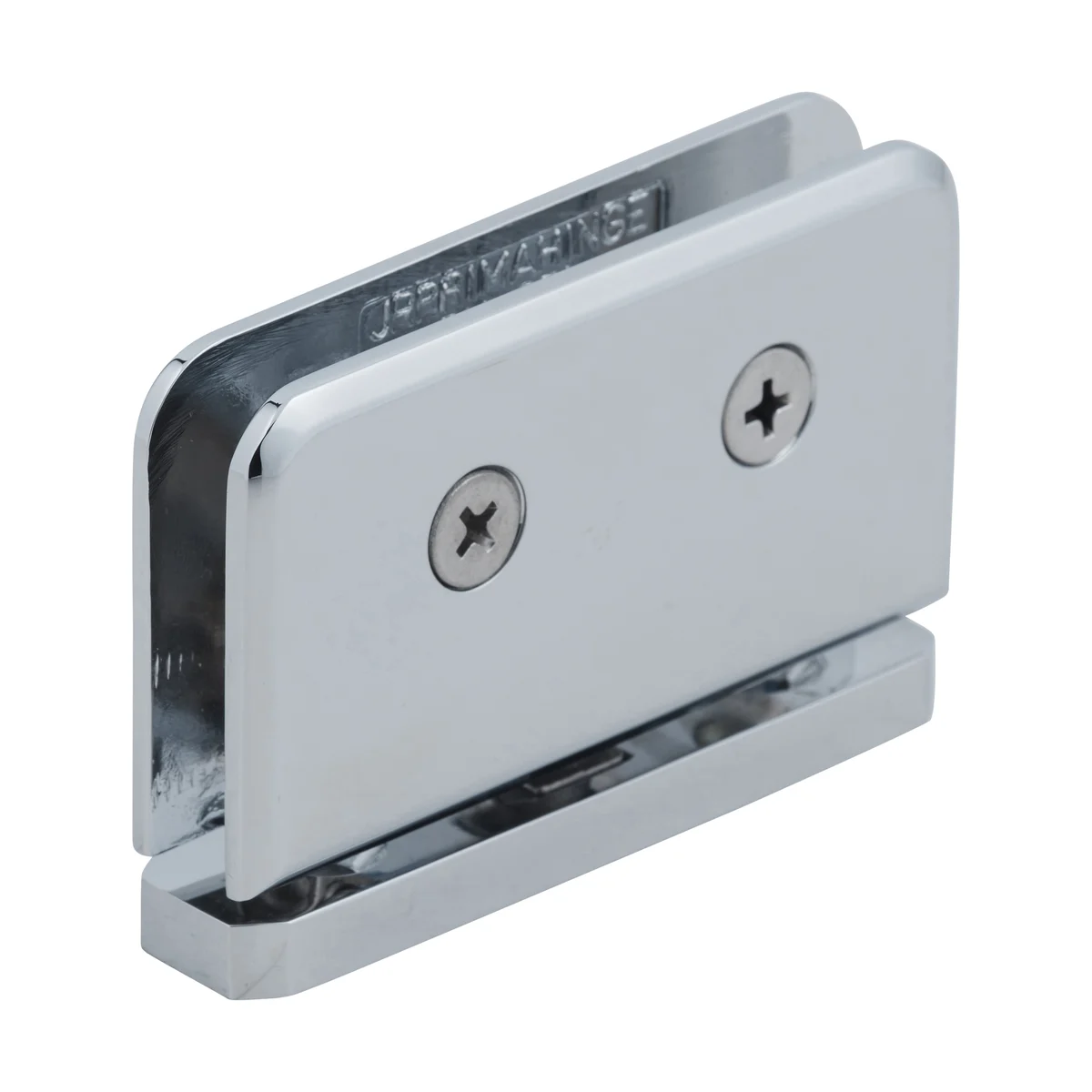

Pivot Shower Door Hinge – Junior Prima 01 Top or Bottom Mount — Polished Chrome
A beveled pivot hinge for frameless shower doors that mounts at the top or bottom of the door (header and floor or curb).
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Junior Prima 01 Series Top or Bottom Mount Hinge (JRPPH01) is a pivot hinge for frameless glass shower doors; it fits 1/4" glass, and needs a corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart in the glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, satin brass.
The CRL Junior Prima 01 Series Top or Bottom Mount Hinge (JRPPH01). It is a pivot hinge: the door turns on a pin instead of hanging from the side, and this one mounts at the top or bottom of the door (header and floor or curb). It fits 1/4" thick tempered glass. It holds a door up to 62 lb and 28" wide. The glass needs a corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart, per CRL's template. Made of brass.
- Fits 1/4" glass
- Holds a door up to 62 lb
- Doors up to 28" wide
- Glass cut-out: a corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 5 |
|---|---|
| CRL model | JRPPH01 |
| Glass cut-out | A corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart |
| Max door weight | 62 lb |
| Max door width | 28" |
| Edge Profile | Beveled |
| Glazing Thickness | 1/4 in. (6 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 62 lbs. (28.1 kg) |
| Maximum Door Width | 28 in. (711 mm) |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Junior Prima |
Glass cut-out
This hinge needs a corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL JRPPH01 hinge fit?
1/4" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A corner notch 2-3/8" long x 1-1/4" deep, holes 1-1/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How many hinges do I need?
This is one pivot hinge. A pivot door turns on two: one at the top and one at the bottom of the door.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
