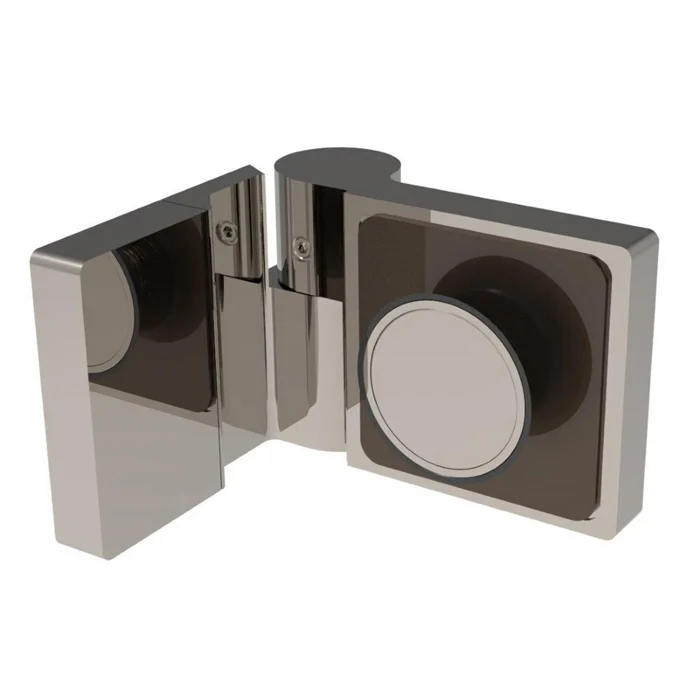

Shower Door Hinge – Lugano 044, Offset Back Plate, Left Hand Door — Brushed Nickel
A wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Lugano Series Wall Mount Hinge - For Left Hand Door (LUG044R) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep in the glass. Made by C.R. Laurence (CRL) in 2 finishes, including brushed nickel, satin brass.

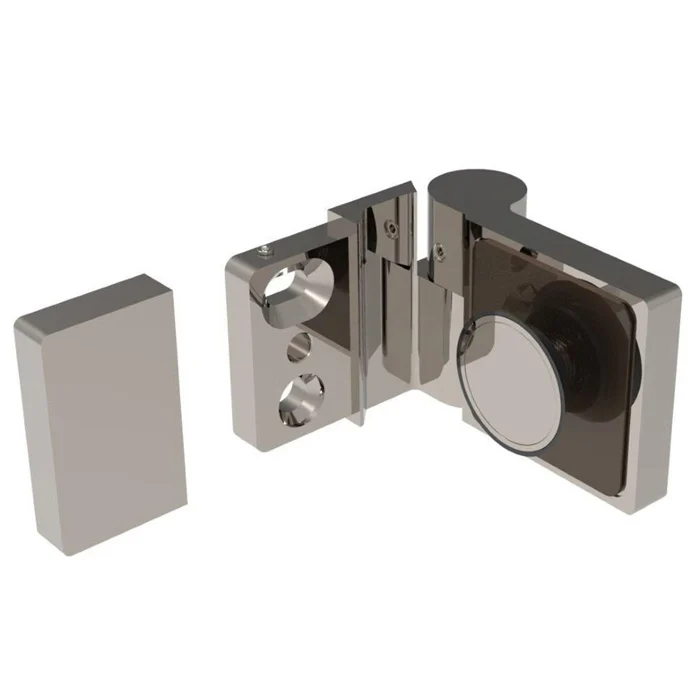

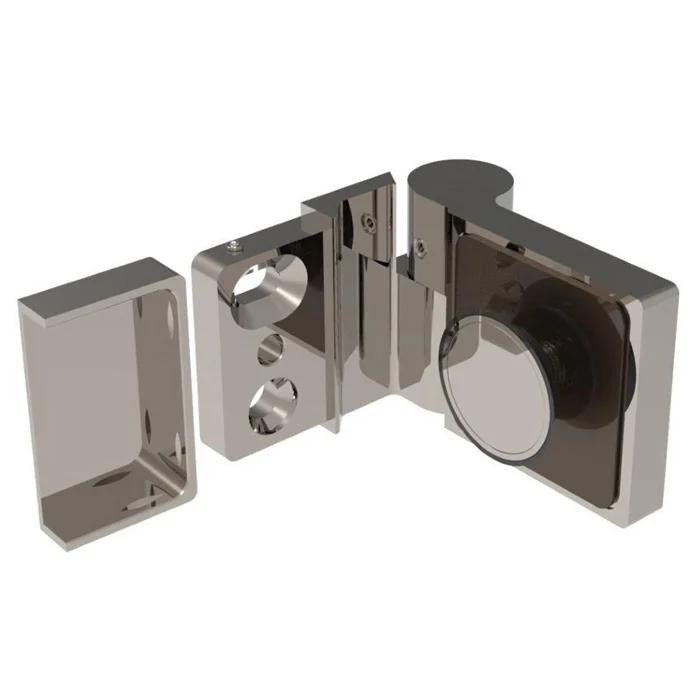

The CRL Lugano Series Wall Mount Hinge - For Left Hand Door (LUG044R). It mounts the door to the wall with an offset back plate. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 99 lb and 35" wide. The part that clamps onto the glass is 1-31/32" x 1-31/32" (tall x wide). The glass needs holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep, per CRL's template. It takes the same glass cut-out as the Lugano 044. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 99 lb
- Doors up to 35" wide
- 1-31/32" x 1-31/32" on the glass
- Glass cut-out: holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep
Specs
| Finishes | 2 |
|---|---|
| CRL model | LUG044R |

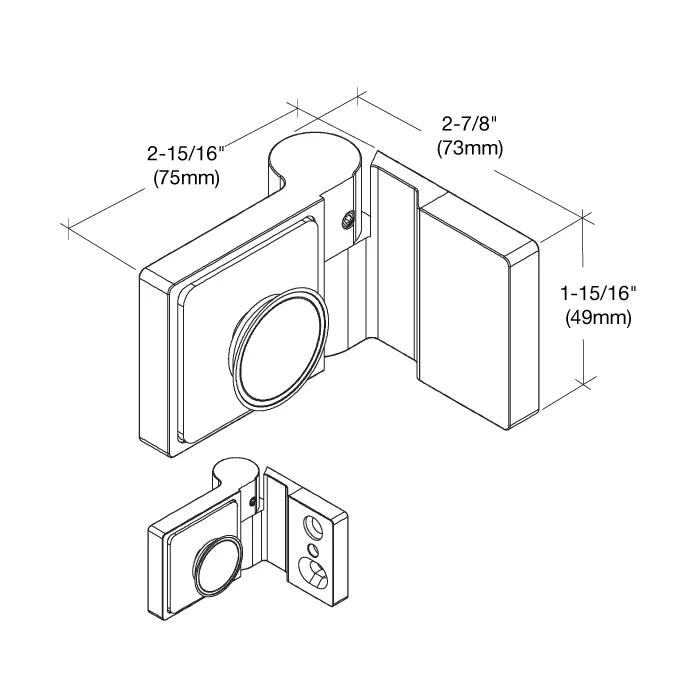

| Size on the glass (tall x wide) | 1-31/32" x 1-31/32" |
| Glass cut-out | Holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep |
| Max door weight | 99 lb |
| Max door width | 35" |
| Back Plate | Offset |
| Design Style | Concealed/Premium |
| Edge Profile | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Left Hand |
| Height | 1-31/32 in. (50 mm) |
| Material | Brass |
| Maximum Door Weight | 99 lbs. (44.9 kg) |
| Maximum Door Width | 35 in. (889 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Series | Lugano |
| Width | 1-31/32 in. (50 mm) |
Glass cut-out
This hinge needs holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (1): these fit the same glass.
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL LUG044R hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
Holes only (no notch) or a rectangular notch 2-7/16" long x 1-13/16" deep, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 1-31/32" x 1-31/32" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 99 lb and 35" wide.
Which other hinges use the same cut-out?
Shower Door Hinge – Lugano 044 Outswing, Offset Plate, Right Hand Door. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Brushed Nickel, Satin Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
