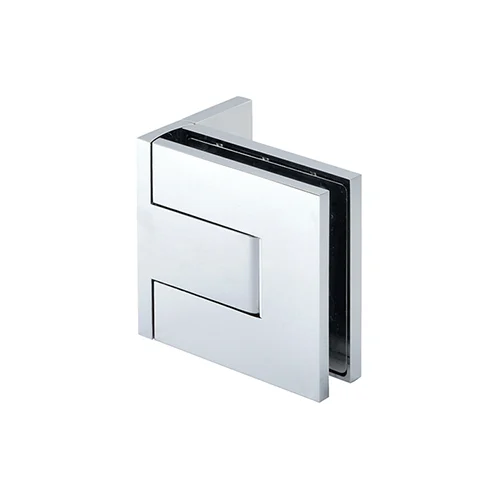

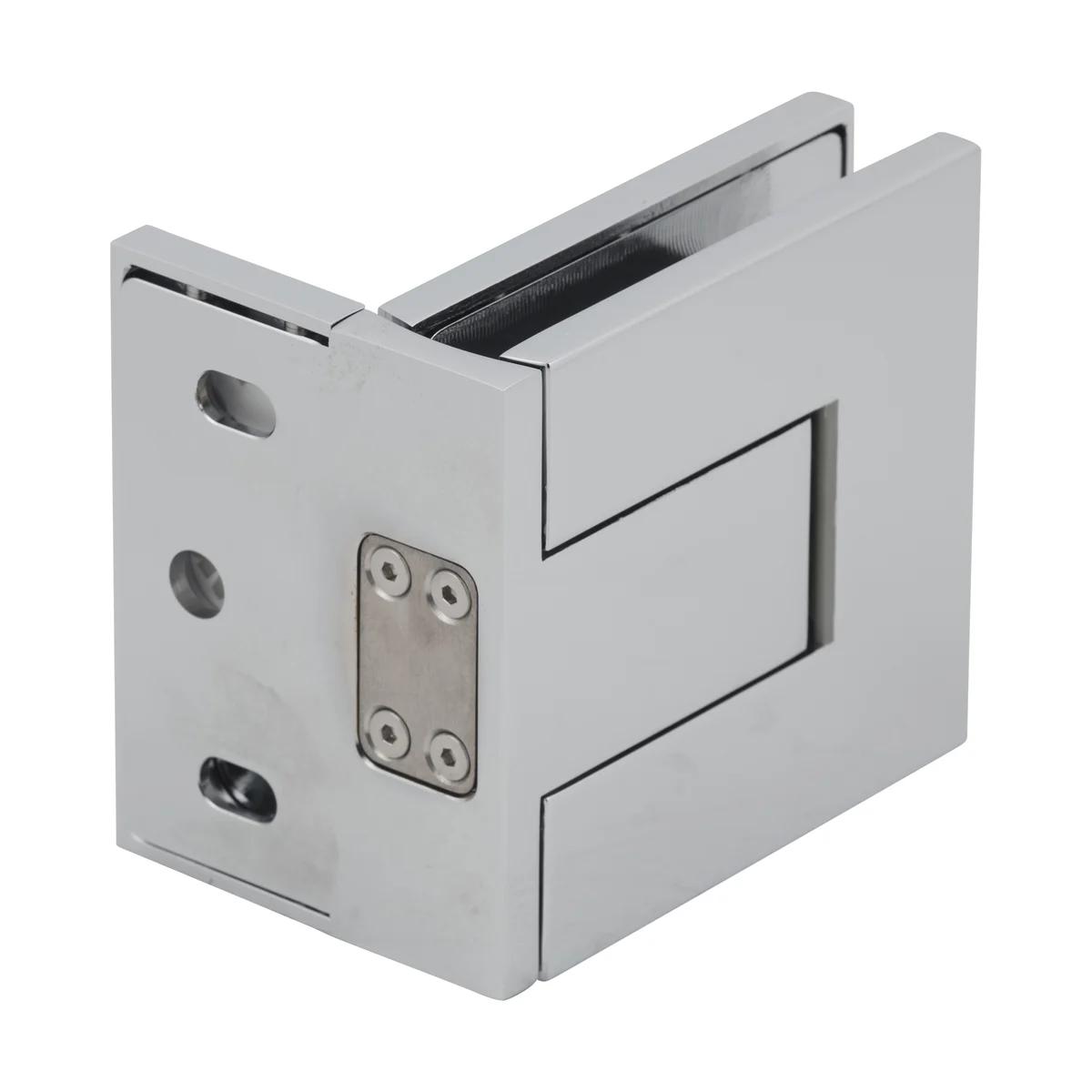

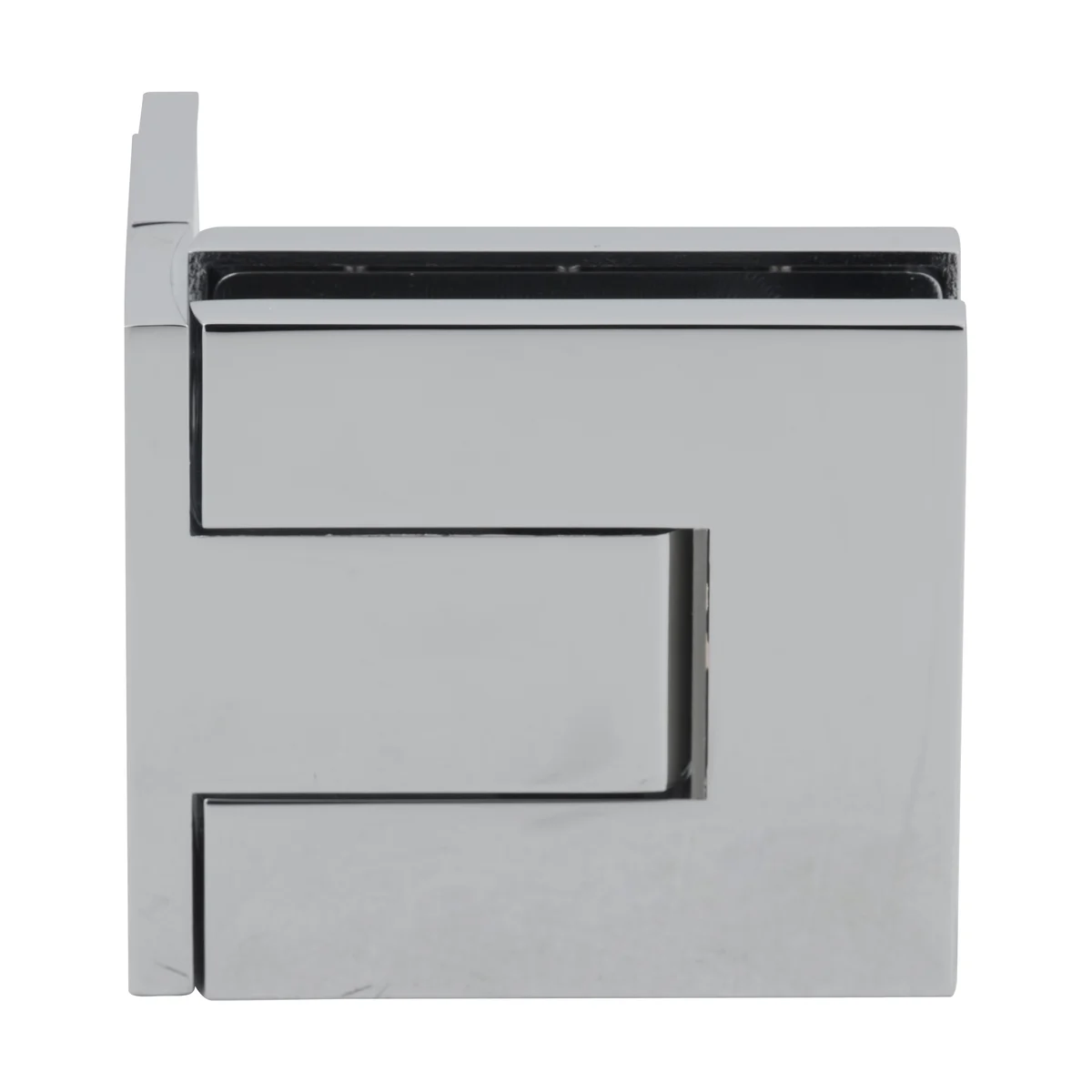

Shower Door Hinge – Palermo 044 Adjustable, Offset Back Plate — Polished Chrome
A square-edged wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Palermo Adjustable Wall Mount Offset Back Plate Hinge (PAL044) is a wall mount hinge for frameless glass shower doors; it fits 3/8" - 1/2" glass, and needs a rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart in the glass. Made by C.R. Laurence (CRL) in 3 finishes, including polished chrome, brushed nickel, matte black.
The CRL Palermo Adjustable Wall Mount Offset Back Plate Hinge (PAL044). It mounts the door to the wall with an offset back plate. It fits 3/8" - 1/2" thick tempered glass. It holds a door up to 110 lb and 39" wide. The part that clamps onto the glass is 3-1/8" x 3-1/2" (tall x wide). The glass needs a rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart, per CRL's template. It takes the same glass cut-out as the Chrome 180. Made of brass.
- Fits 3/8" - 1/2" glass
- Holds a door up to 110 lb
- Doors up to 39" wide
- 3-1/8" x 3-1/2" on the glass
- Glass cut-out: a rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart
Specs
| Finishes | 3 |
|---|---|
| CRL model | PAL044 |

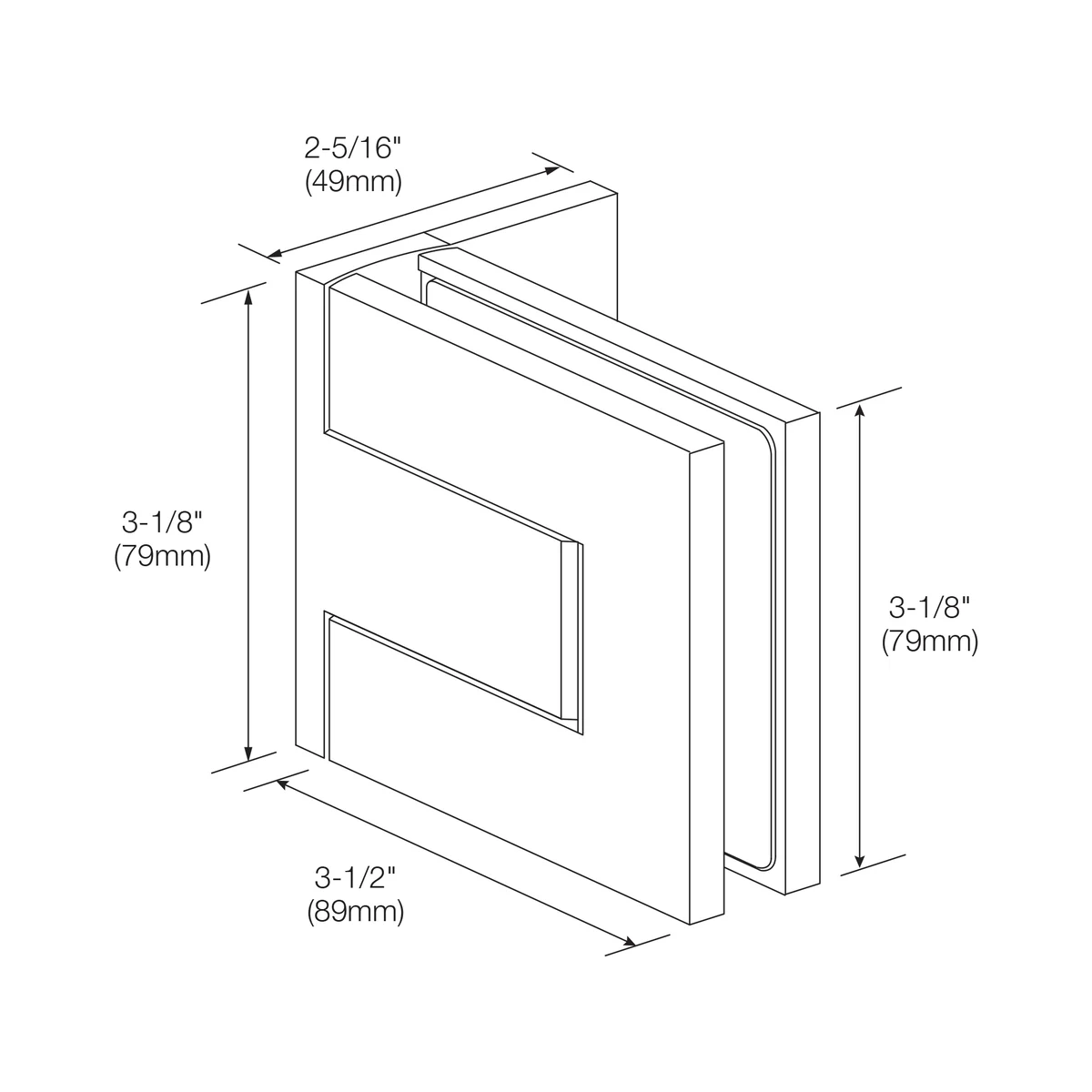

| Size on the glass (tall x wide) | 3-1/8" x 3-1/2" |
| Glass cut-out | A rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart |
| Max door weight | 110 lb |
| Max door width | 39" |
| Back Plate | Offset |
| Edge Profile | Square |
| Glazing Thickness | 3/8 in. - 1/2 in. (10mm - 12mm) |
| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 110 lbs. (49.9 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Width | 3-1/2 in. (89 mm) |
Glass cut-out
This hinge needs a rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (1): these fit the same glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL PAL044 hinge fit?
3/8" - 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A rectangular notch 2-13/16" long x 2-1/2" deep, holes 2-5/16" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/8" x 3-1/2" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 110 lb and 39" wide.
Which other hinges use the same cut-out?
Glass to Glass Shower Door Hinge 180° – Palermo 180. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
