Glass to Glass Shower Door Hinge 180° – Petite 182 Inswing — Brass
A beveled 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL 182 Series 180 Degree Glass-to-Glass Hinge Swings In Only (PET182) is a glass-to-glass hinge for frameless glass shower doors; it fits 1/4" to 5/16" glass, and needs holes only (no notch), 2-3/16" apart in the glass. Made by C.R. Laurence (CRL) in brass.
The CRL 182 Series 180 Degree Glass-to-Glass Hinge Swings In Only (PET182). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 1/4" to 5/16" thick tempered glass. Two hinges hold a door up to 55 lb and 31" wide; three hold up to 82 lb. The part that clamps onto the glass is 3-1/2" tall. The glass needs holes only (no notch), 2-3/16" apart, per CRL's template. Made of brass.
- Fits 1/4" to 5/16" glass
- Holds a door up to 55 lb with 2 hinges
- Doors up to 31" wide
- 3-1/2" tall on the glass
- Glass cut-out: holes only (no notch), 2-3/16" apart
Specs
| Finishes | 1 |
|---|---|
| CRL model | PET182 |

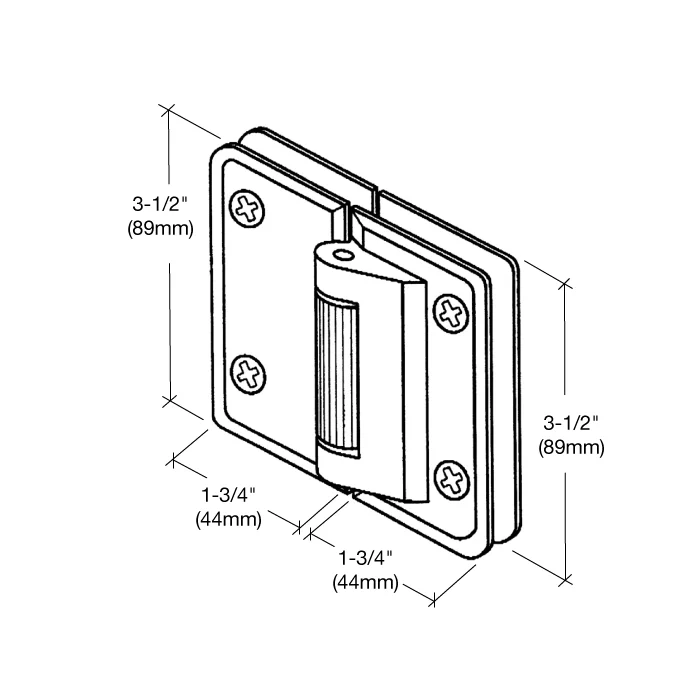

| Size on the glass (tall x wide) | 3-1/2" tall |
| Glass cut-out | Holes only (no notch), 2-3/16" apart |
| Max door weight | 55 lb with 2 hinges, 82 lb with 3 |
| Max door width | 31" |
| Edge Profile | Beveled |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges | 55 lbs. (24.9 kg) |
| Maximum Door Weight - 3 Hinges | 82 lbs. (37.2 kg) |
| Maximum Door Width - 2 Hinges | 31 |
| Maximum Door Width - 3 Hinges | 34 |
| Mounting Type | Glass To Glass |
| Series | Petite |
| Swing | In Only |
| Width - Door Portion | 1-3/4 in. (44 mm) |
| Width - Sidelite Portion | 1-3/4 |
Glass cut-out
This hinge needs holes only (no notch), 2-3/16" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Common questions
What glass thickness does the CRL PET182 hinge fit?
1/4" to 5/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
Holes only (no notch), 2-3/16" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/2" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 55 lb and 31" wide, three hold up to 82 lb.
What finishes does it come in?
Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
