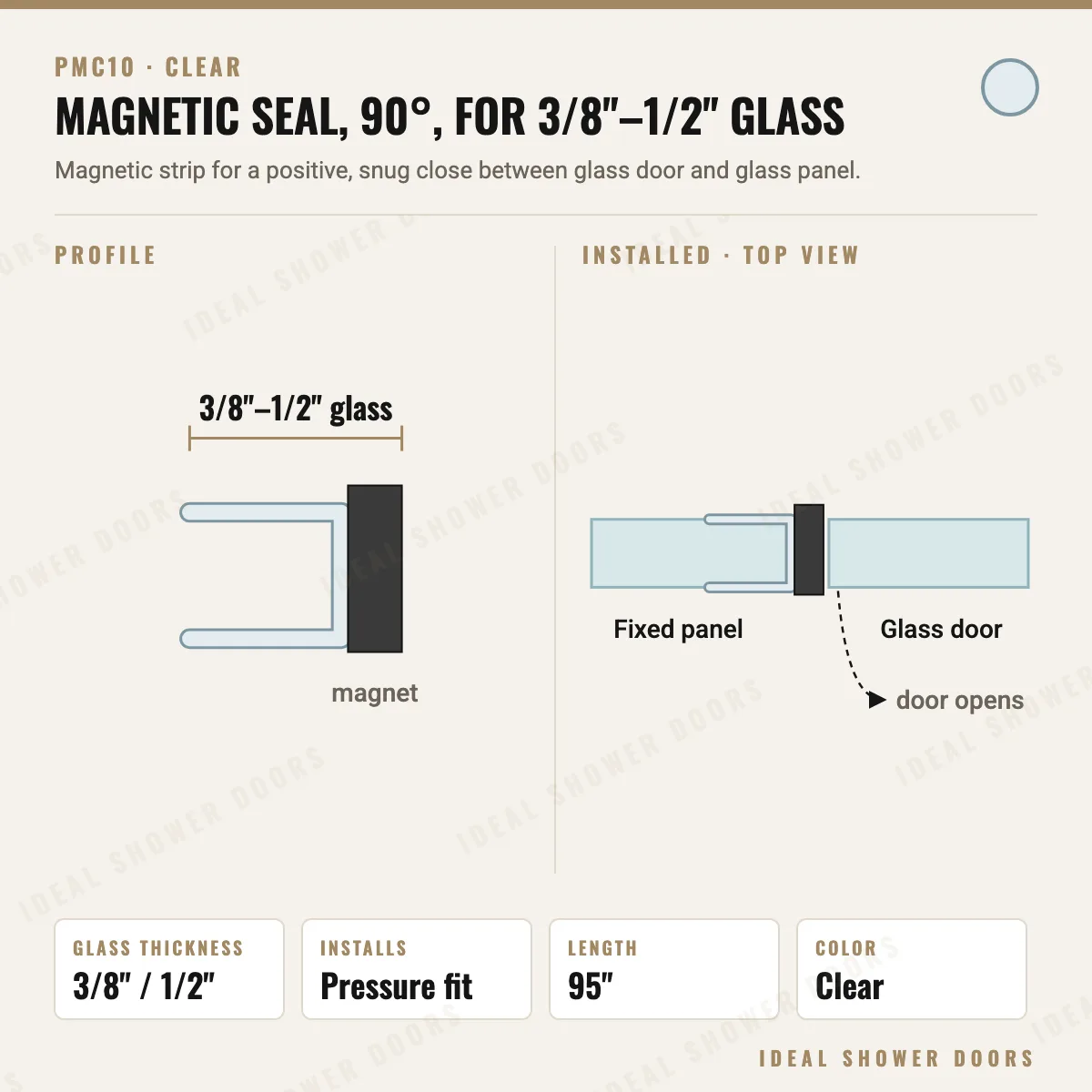

Magnetic Seal, 90°, for 3/8"–1/2" Glass
Magnetic strip for a positive, snug close between glass door and glass panel.
The CRL PMC10 is a 95-inch magnetic seal, 90°, for 3/8"–1/2" glass for 3/8-inch and 1/2-inch glass. Made by C.R. Laurence (CRL); available in clear.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
- Magnetic, positive close
- Fits 3/8"–1/2" glass
- Pair profiles to suit your door
- 95" length, cut to fit
Related guides
About this seal

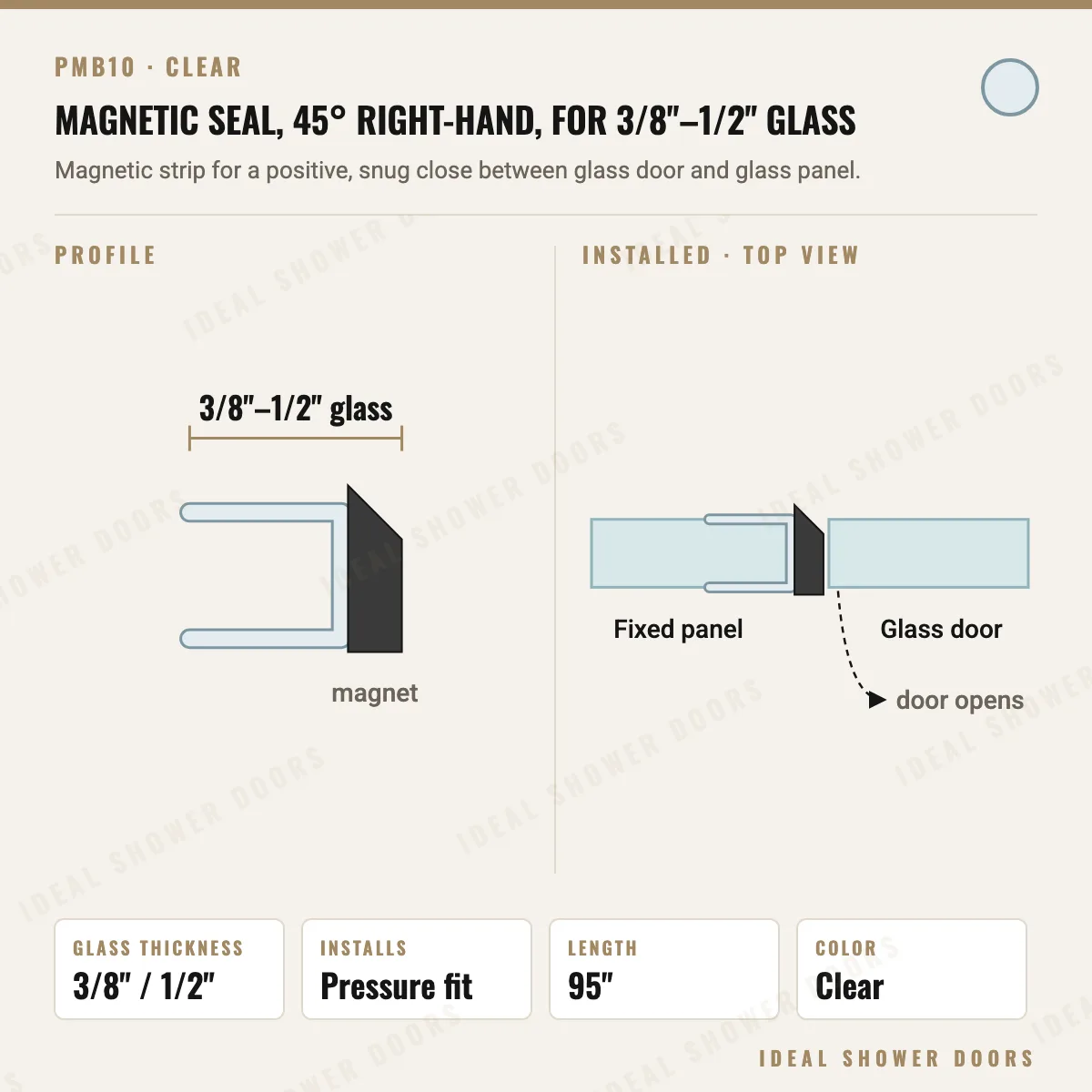

Co-extruded plastic with a soft magnetic receiver that pulls the door closed and holds it. Pressure fits onto the glass edge. Mix and match profiles for your layout. How to pair them: for a door that swings one way in a straight line (180°), use one 45° left-hand + one 45° right-hand. For a door that swings both ways, use two 90° profiles. Fits 3/8"–1/2" glass. 95" length, cut to fit.
Fit & specs
| Glass thickness | 3/8", 1/2" |
|---|---|
| Installs by | Pressure fits onto the glass |
| Used for | Door to fixed glass panel (straight line) 135° neo-angle Latch (strike) side |
| Length | 95 in. (2413 mm) |
| Material | Polycarbonate |
| Pre-Applied Tape | No |
Common questions
What glass thickness does the CRL PMC10 fit?
The CRL PMC10 fits 3/8" and 1/2" glass. Measure your glass at the edge before ordering; a seal made for a different thickness will not stay on.
How do I install the CRL PMC10?
It pressure fits onto the edge of the glass; no glue or tape needed. Clean and dry the edge first.
How do I cut the CRL PMC10 to length?
Measure the glass edge where the seal goes, then cut the seal to that length with plastic trim snips like the CRL PTS89 or a fine-tooth hacksaw. The snips give a clean, straight or angled cut in one squeeze.
How long is the PMC10?
It comes in a 95" length that you cut to fit your door.
Can I return the PMC10?
No. All sales are final: due to the nature of shipping these long seals, items cannot be returned. Measure your glass thickness and check the suggested gap before you order; our measuring guide shows how.
