Shower Door Hinge – Regal 037 Wall Mount, Offset Back Plate — Brushed Nickel
A square-edged wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

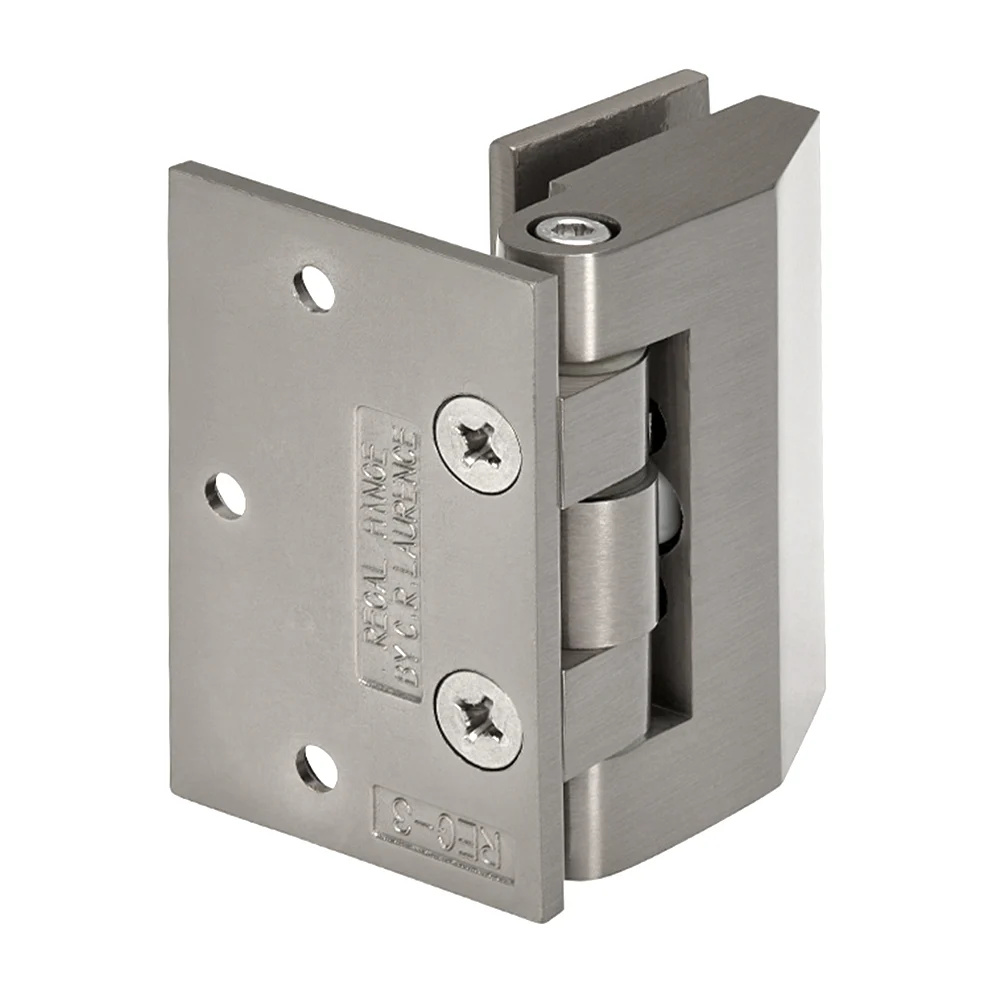

The CRL Regal 037 Series Wall Mount Offset Back Plate Hinge (REG037) is a wall mount hinge for frameless glass shower doors, and needs holes only (no notch), 1-7/16" apart in the glass. Made by C.R. Laurence (CRL) in 2 finishes, including brushed nickel, oil rubbed bronze.
The CRL Regal 037 Series Wall Mount Offset Back Plate Hinge (REG037). It mounts the door to the wall with an offset back plate. It fits 5/16" to 3/8" thick tempered glass. Two hinges hold a door up to 90 lb and 30" wide; three hold up to 130 lb. The part that clamps onto the glass is 3-1/8" x 2-9/16" (tall x wide). The glass needs holes only (no notch), 1-7/16" apart, per CRL's template. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 90 lb with 2 hinges
- Doors up to 30" wide
- 3-1/8" x 2-9/16" on the glass
- Glass cut-out: holes only (no notch), 1-7/16" apart
- Adjustable, to fine-tune the door after it is hung
Specs
| Finishes | 2 |
|---|---|
| CRL model | REG037 |

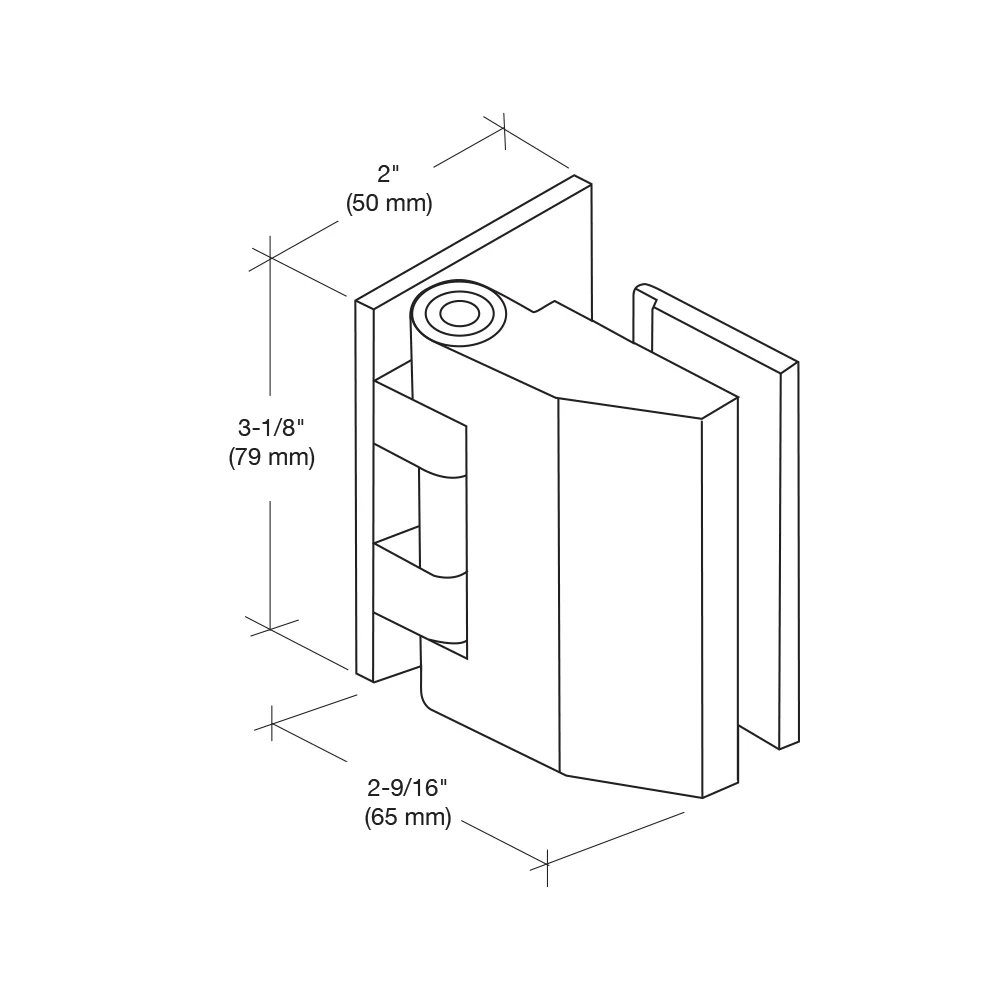

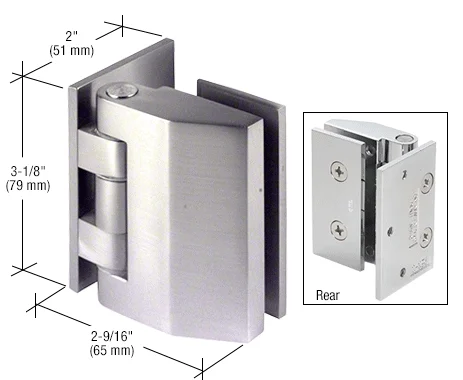

| Size on the glass (tall x wide) | 3-1/8" x 2-9/16" |
| Glass cut-out | Holes only (no notch), 1-7/16" apart |
| Max door weight | 90 lb with 2 hinges, 130 lb with 3 |
| Max door width | 30" |
| Adjustable | Yes |
| Back Plate | Offset |
| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges | 90 lbs. (40.8 kg) |
| Maximum Door Weight - 3 Hinges | 130 lbs. (59 kg) |
| Maximum Door Width - 2 Hinges | 30 |
| Maximum Door Width - 3 Hinges | 34 |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Width | 2-9/16 in. (65 mm) |
Glass cut-out
This hinge needs holes only (no notch), 1-7/16" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Brushed Nickel
Common questions
What glass cut-out does it need?
Holes only (no notch), 1-7/16" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/8" x 2-9/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 90 lb and 30" wide, three hold up to 130 lb.
What finishes does it come in?
Brushed Nickel, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
