Glass to Glass Shower Door Hinge 180° – Concord 180 — Antique Brass
A square-edged 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

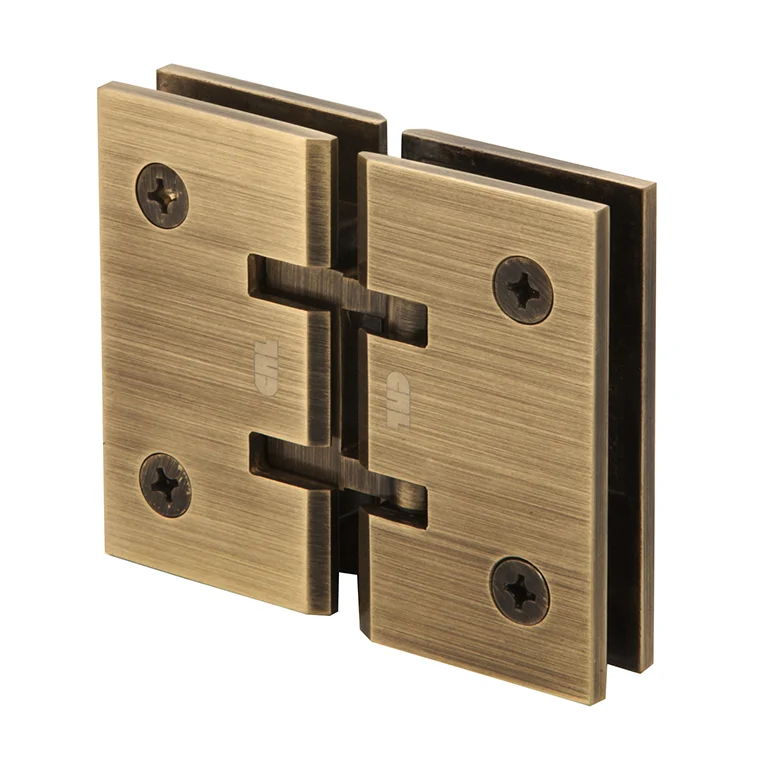

The CRL Concord 180 Series 180 Degree Glass-to-Glass Hinge (SDH180) is a glass-to-glass hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart in the glass. Made by C.R. Laurence (CRL) in antique brass.
The CRL Concord 180 Series 180 Degree Glass-to-Glass Hinge (SDH180). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 80 lb; three hold up to 120 lb. The part that clamps onto the glass is 3-1/2" tall. The glass needs a mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart, per CRL's template. Made of brass.
- Fits 3/8" to 1/2" glass
- Holds a door up to 80 lb with 2 hinges
- 3-1/2" tall on the glass
- Glass cut-out: a mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 1 |
|---|---|
| CRL model | SDH180 |

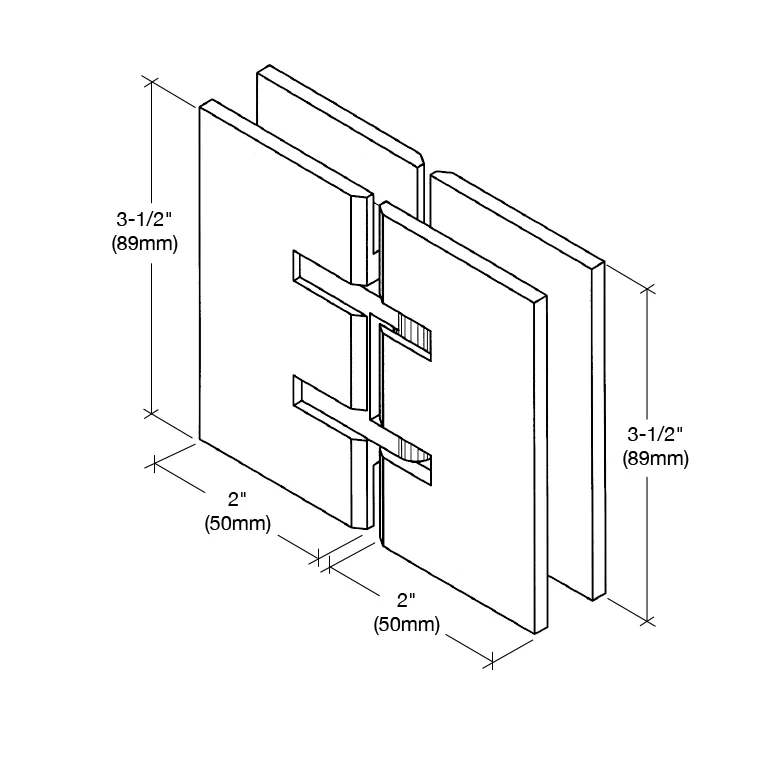

| Size on the glass (tall x wide) | 3-1/2" tall |
| Glass cut-out | A mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart |
| Max door weight | 80 lb with 2 hinges, 120 lb with 3 |
| Edge Profile | Square |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Mounting Type | Glass To Glass |
| Self-Centering | Yes |
| Series | Concord |
| Width - Door Portion | 2 in. (51 mm) |
| Width - Sidelite Portion | 2 |
Glass cut-out
This hinge needs a mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

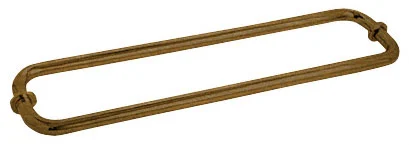

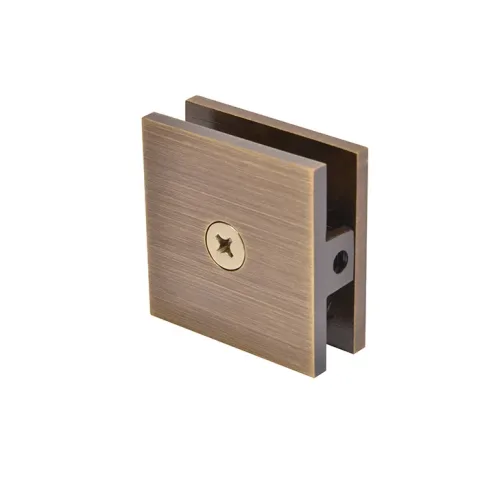

Complete the look in Antique Brass
Common questions
What glass thickness does the CRL SDH180 hinge fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 2-3/8" long x 1-3/4" deep, holes 2-1/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/2" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 80 lb, three hold up to 120 lb.
What finishes does it come in?
Antique Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
