Bow-Tie Back-to-Back Shower Door Knob — Polished Chrome
A knob that narrows toward the glass like a bow tie, for an eye-catching touch on a frameless door. Solid brass, with a knob on each side.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this knob
The CRL Bow-Tie Back-to-Back Shower Door Knob is a back-to-back knob for frameless glass shower doors that fits 1/4" to 1/2" glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
The Bow-Tie Style knob tapers in toward the glass and flares out at the end, so it looks distinctive and gives you a sturdy grip. It's made of solid brass and mounts back to back, with a matching knob on the inside and outside of the door. Each knob is 1-1/4" across and stands 1-1/2" off the glass. It works on sliding, folding, swinging and pivot doors in 1/4" to 1/2" tempered glass. You'll need one hole through the glass, 3/8" or 1/2" in diameter.
- Back-to-back pair: one knob for each side of the door

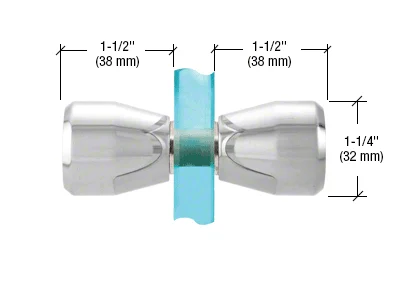

- 1-1/4" (32 mm) diameter, stands 1-1/2" (38 mm) from the glass
- Solid brass construction
- Fits 1/4" to 1/2" (6 to 12 mm) tempered glass
- Needs one 3/8" or 1/2" (10 or 12 mm) hole
Specs
| Finishes | 5 |
|---|---|
| Design Style | Beveled |
| Diameter | 1-1/4 in. (32 mm) |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Height | 1-1/2 in. (38 mm) |
| Material | Brass |
| Mounting Type | Glass Mount - Back To Back |
| Opening Style | Slide, Fold, Swing(side), Pivot(floor) |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Bow-Tie Back-to-Back Shower Door Knob fit?
1/4" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many holes does it need?
One. The two knobs bolt together through a single 3/8" or 1/2" (10 or 12 mm) hole in the glass.
Is it one knob or a pair?
A back-to-back pair: one for the inside of the door and one for the outside, with the hardware to join them through the glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, hole spacing and finish before you order.
More like this
8" Back-to-Back Tubular Pull Handle
Traditional Back-to-Back Shower Door Knobs
24" Ladder Style Pull Handle
8" Back-to-Back Square Pull Handle
Round Thru-Glass Finger Pull
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
