Pivot Shower Door Hinge – Senior Prima 06 EZ-Adjust Top Mount — Polished Chrome
A beveled pivot hinge for frameless shower doors that mounts at the top or bottom of the door (header and floor or curb).
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Senior Prima 06 Series EZ-Adjust Top Mount Hinge (SRPPH06) is a pivot hinge for frameless glass shower doors; it fits 1/2" glass. Made by C.R. Laurence (CRL) in 4 finishes, including polished chrome, brushed nickel, matte black.
The CRL Senior Prima 06 Series EZ-Adjust Top Mount Hinge (SRPPH06). It is a pivot hinge: the door turns on a pin instead of hanging from the side, and this one mounts at the top or bottom of the door (header and floor or curb). It fits 1/2" thick tempered glass. It holds a door up to 145 lb and 36" wide. The part that clamps onto the glass is 2-5/8" x 4-3/4" (tall x wide). Made of brass.
- Fits 1/2" glass
- Holds a door up to 145 lb
- Doors up to 36" wide

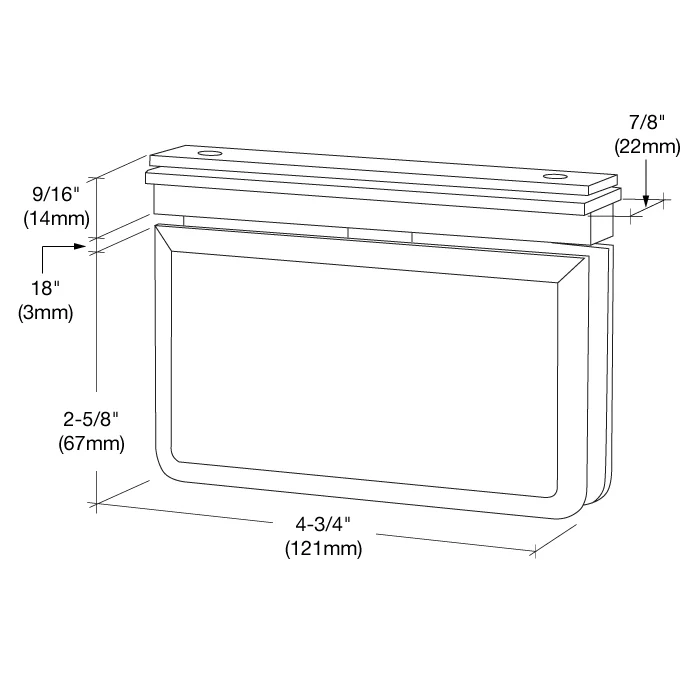

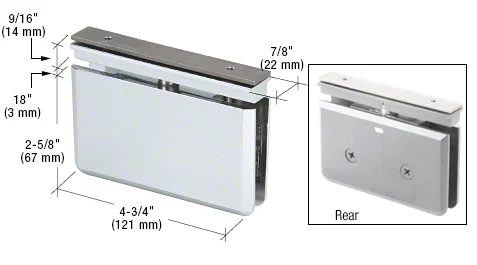

- 2-5/8" x 4-3/4" on the glass
- Self-centering: returns the door to closed
Specs
| Finishes | 4 |
|---|---|
| CRL model | SRPPH06 |
| Size on the glass (tall x wide) | 2-5/8" x 4-3/4" |
| Max door weight | 145 lb |
| Max door width | 36" |
| Edge Profile | Beveled |
| Glazing Thickness | 1/2 in. (12 mm) |
| Height | 2-5/8 in. (67 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 145 lbs. (65.8 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Head & Sill Mount |
| Self-Centering | Yes |
| Series | Senior Prima |
| Width | 4-3/4 in. (121 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL SRPPH06 hinge fit?
1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 2-5/8" x 4-3/4" (tall x wide).
How many hinges do I need?
This is one pivot hinge. A pivot door turns on two: one at the top and one at the bottom of the door.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
