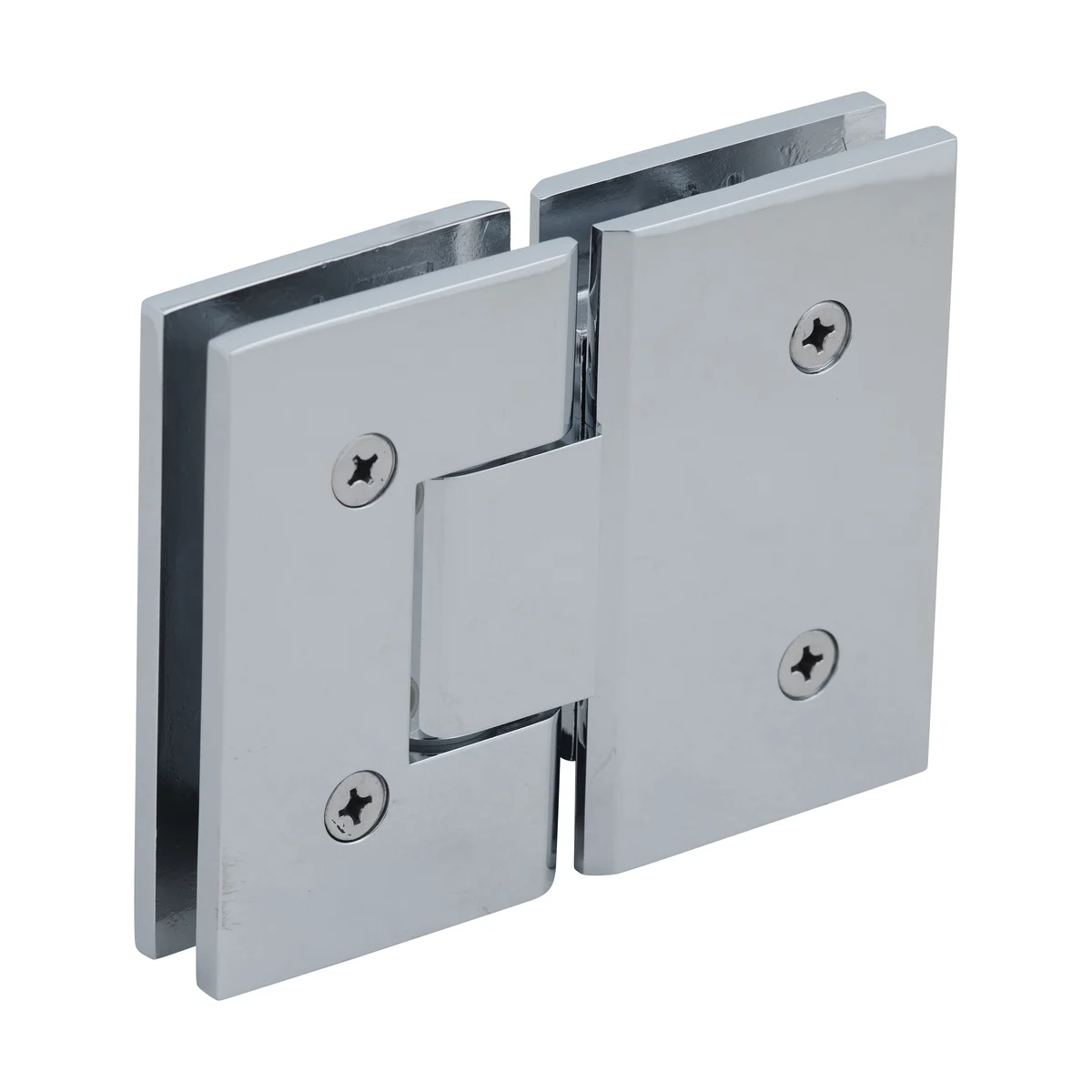

Glass to Glass Shower Door Hinge 180° – Victoria 180 — Polished Chrome
A square-edged 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Victoria 180 Degree Glass-to-Glass Series Hinge (VCT180) is a glass-to-glass hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart in the glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
The CRL Victoria 180 Degree Glass-to-Glass Series Hinge (VCT180). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 3/8" to 1/2" thick tempered glass. It holds a door up to 140 lb and 39" wide. The part that clamps onto the glass is 4-3/8" tall. The glass needs a mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart, per CRL's template. It takes the same glass cut-out as the Plymouth 037, Plymouth 180, Victoria 037. Made of brass.
- Fits 3/8" to 1/2" glass
- Holds a door up to 140 lb
- Doors up to 39" wide
- 4-3/8" tall on the glass
- Glass cut-out: a mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 5 |
|---|---|
| CRL model | VCT180 |

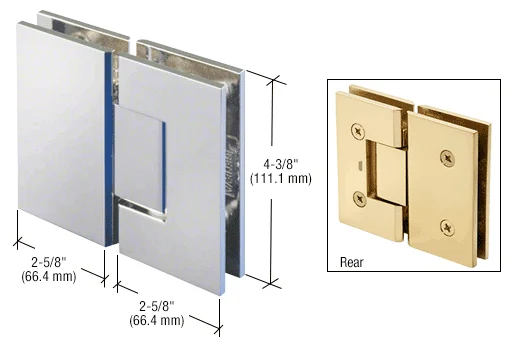

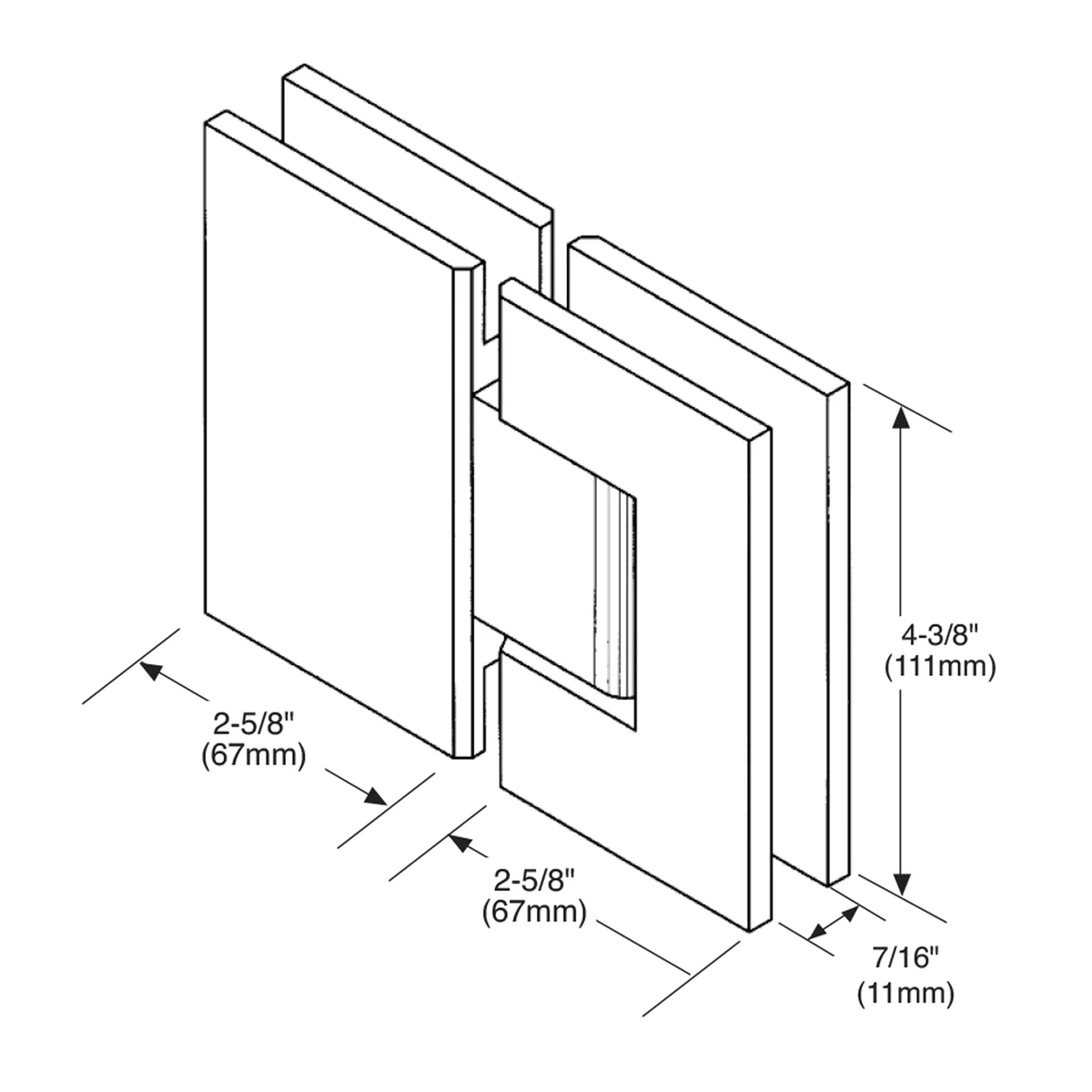

| Size on the glass (tall x wide) | 4-3/8" tall |
| Glass cut-out | A mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart |
| Max door weight | 140 lb |
| Max door width | 39" |
| Edge Profile | Square |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 4-3/8 in. (111 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 140 lbs. (63.5 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Glass To Glass |
| Self-Centering | Yes |
| Series | Victoria |
| Width - Door Portion | 2-5/8 in. (67 mm) |
| Width - Sidelite Portion | 2-5/8 |
Glass cut-out
This hinge needs a mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (3): these fit the same glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL VCT180 hinge fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 3-1/4" long x 2-1/16" deep, holes 2-7/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 4-3/8" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 140 lb and 39" wide.
Which other hinges use the same cut-out?
Shower Door Hinge – Victoria 037 Wall Mount, Full Back Plate; Shower Door Hinge – Plymouth 037 Wall Mount, H Back Plate; Glass to Glass Shower Door Hinge 180° – Plymouth 180. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Unlacquered Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
