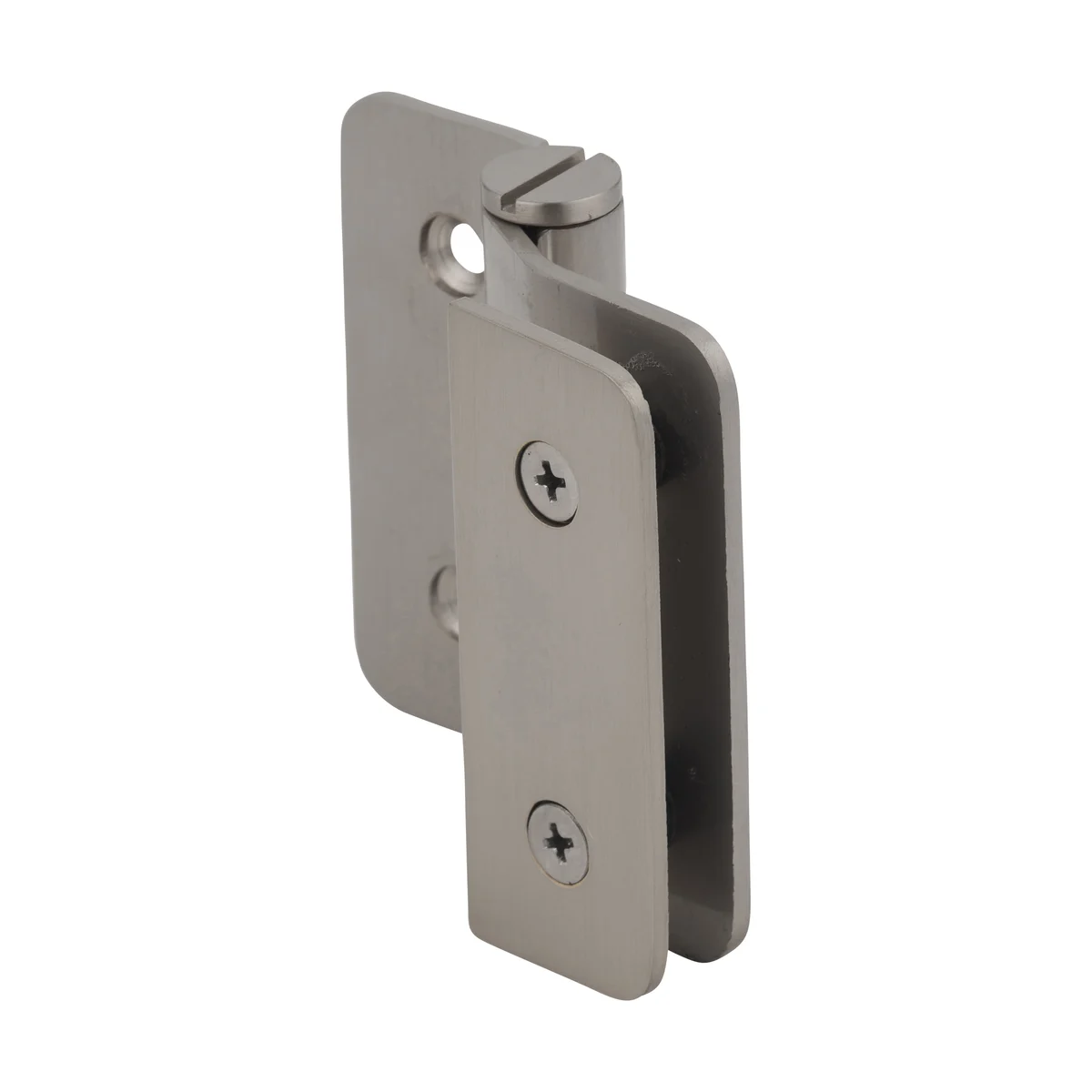

Shower Door Hinge – Zurich 05 Outswing Wall Mount, Offset Back Plate — Brushed Nickel
A square-edged wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Zurich 05 Series Wall Mount Outswing Hinge (ZUR05) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs holes only (no notch), 1-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 4 finishes, including brushed nickel, oil rubbed bronze, brushed stainless steel.
The CRL Zurich 05 Series Wall Mount Outswing Hinge (ZUR05). It mounts the door to the wall with an offset back plate. It fits 5/16" to 3/8" thick tempered glass. Two hinges hold a door up to 100 lb and 36" wide; three hold up to 150 lb. The part that clamps onto the glass is 3-1/8" x 1-3/16" (tall x wide). The glass needs holes only (no notch), 1-3/4" apart, per CRL's template. It takes the same glass cut-out as the Zurich 01, Zurich 02, Zurich 03, Zurich 07. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 100 lb with 2 hinges
- Doors up to 36" wide

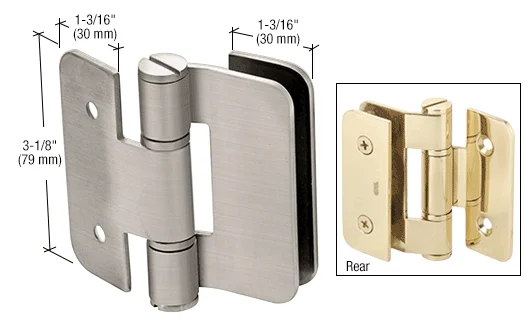

- 3-1/8" x 1-3/16" on the glass
- Glass cut-out: holes only (no notch), 1-3/4" apart
Specs
| Finishes | 4 |
|---|---|
| CRL model | ZUR05 |
| Size on the glass (tall x wide) | 3-1/8" x 1-3/16" |
| Glass cut-out | Holes only (no notch), 1-3/4" apart |
| Max door weight | 100 lb with 2 hinges, 150 lb with 3 |
| Max door width | 36" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 100 lbs. (45.4 kg) |
| Maximum Door Weight - 3 Hinges | 150 lbs. (68 kg) |
| Maximum Door Width - 2 Hinges | 36 in. (914 mm) |
| Maximum Door Width - 3 Hinges | 40 in. (1016 mm) |
| Mounting Type | Wall Mount |
| Self-Centering | No |
| Series | Zurich |
| Width | 1-3/16 in. (30 mm) |
Glass cut-out
This hinge needs holes only (no notch), 1-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (4): these fit the same glass.
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL ZUR05 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
Holes only (no notch), 1-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/8" x 1-3/16" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 100 lb and 36" wide, three hold up to 150 lb.
Which other hinges use the same cut-out?
Glass to Glass Shower Door Hinge 180° – Zurich 07 Inline Outswing; Shower Door Hinge – Zurich 03 Inswing Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Zurich 01 Inswing Bi-Fold; Glass to Glass Shower Door Hinge 180° – Zurich 02 Outswing Bi-Fold. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Brushed Nickel, Oil Rubbed Bronze, Brushed Stainless Steel, Polished Stainless Steel. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
