Glass to Glass Shower Door Hinge 180° – Lugano 180, Left Hand Door — Satin Brass
A 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

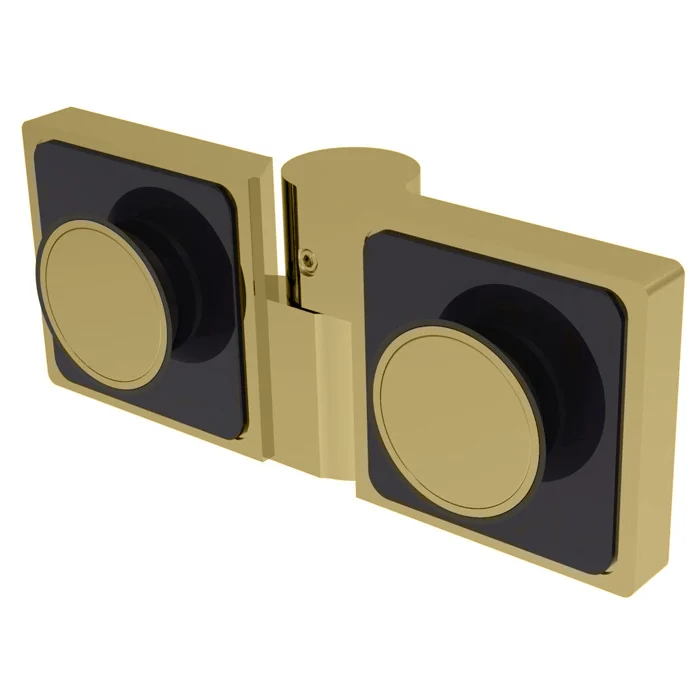

The CRL Lugano Series Glass to Glass 180 Degree Hinge - For Left Hand Door (LUG180R) is a glass-to-glass hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass. Made by C.R. Laurence (CRL) in satin brass.

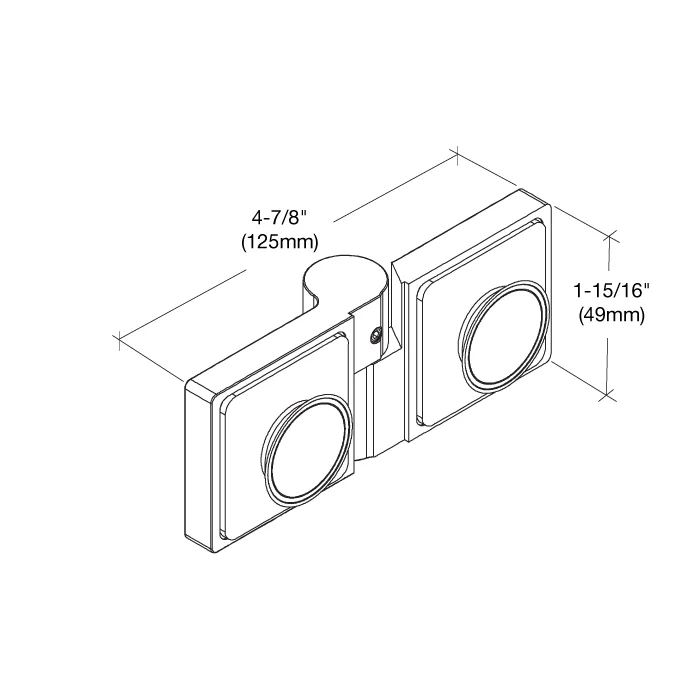

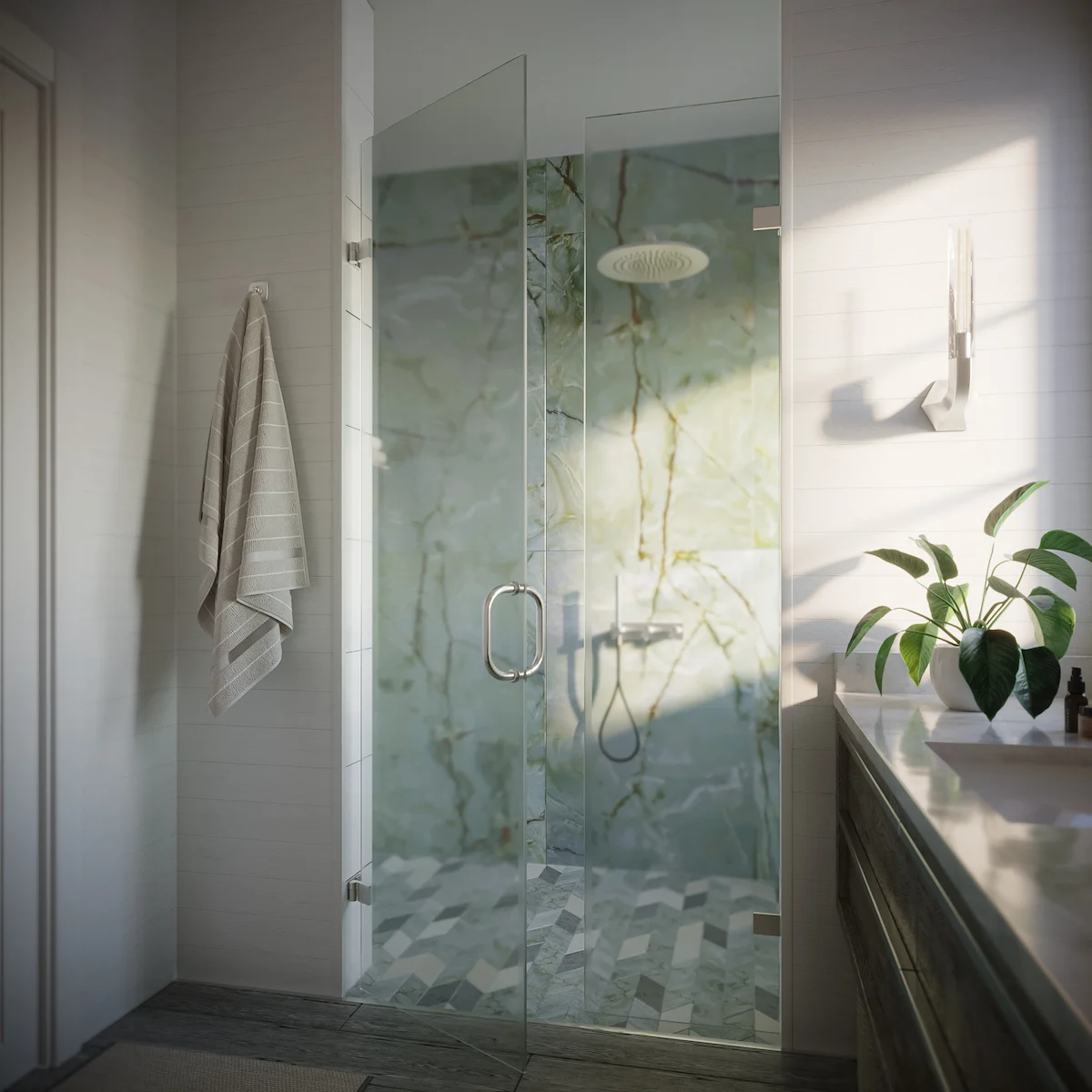

The CRL Lugano Series Glass to Glass 180 Degree Hinge - For Left Hand Door (LUG180R). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 99 lb and 35" wide. The part that clamps onto the glass is 1-31/32" x 1-31/32" (tall x wide). Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 99 lb
- Doors up to 35" wide
- 1-31/32" x 1-31/32" on the glass
Specs
| Finishes | 1 |
|---|---|
| CRL model | LUG180R |
| Size on the glass (tall x wide) | 1-31/32" x 1-31/32" |
| Max door weight | 99 lb |
| Max door width | 35" |
| Design Style | Concealed/Premium |
| Edge Profile | Square |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Left Hand |
| Height | 1-31/32 in. (50 mm) |
| Material | Brass |
| Maximum Door Weight | 99 lbs. (44.9 kg) |
| Maximum Door Width | 35 in. (889 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Series | Lugano |
| Width | 1-31/32 in. (50 mm) |
Glass cut-out
CRL does not publish a cut-out drawing for this hinge. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

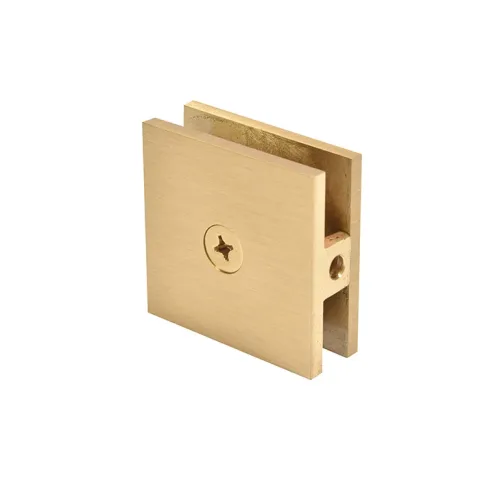

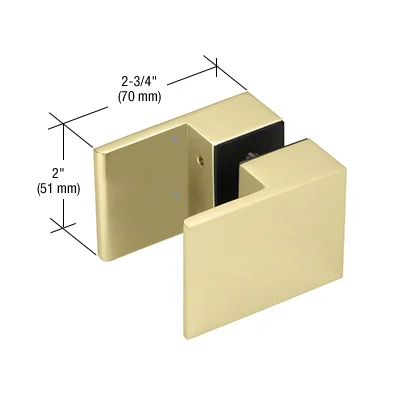

Complete the look in Satin Brass
Common questions
What glass thickness does the CRL LUG180R hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How big is the hinge on the glass?
The part that clamps onto the glass is 1-31/32" x 1-31/32" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; it holds a door up to 99 lb and 35" wide.
What finishes does it come in?
Satin Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
