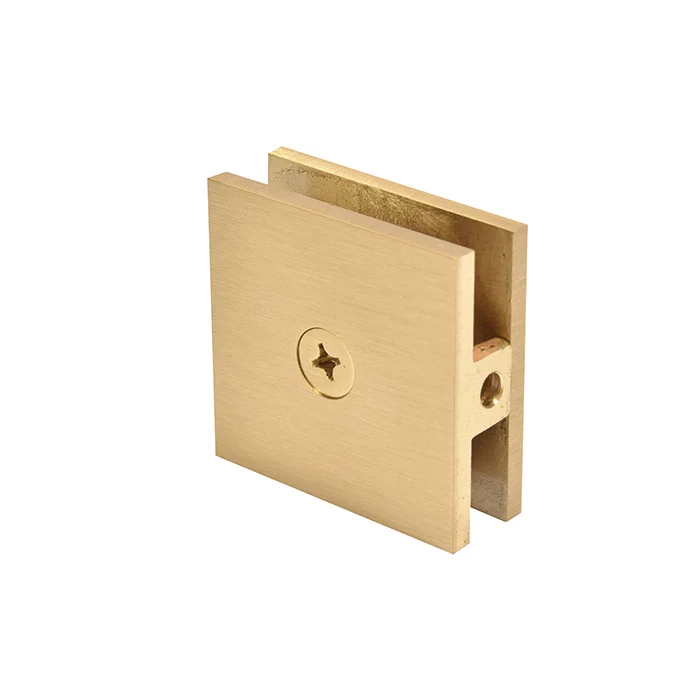

Square Hole-in-Glass Fixed Panel U-Clamp — Satin Brass
A square-edged U-clamp that holds the bottom or side of a fixed glass panel to the wall, floor or ceiling.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Square Hole-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 21 finishes, including polished chrome, brushed nickel, matte black.
This square-style clamp mounts to the wall, ceiling or floor and holds a vertical fixed glass panel through a hole drilled in the glass. It leaves a 3/16" (5 mm) gap between the glass and the wall, which you can fill with clear silicone for a watertight look. Made of solid brass for 3/8" to 1/2" (10 to 12 mm) tempered glass; mounting screws and gaskets are included.

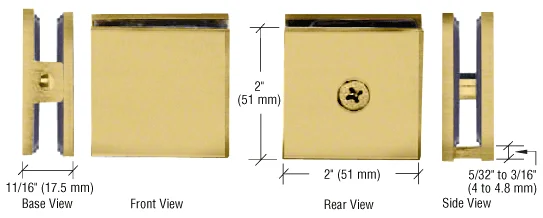

- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a 3/4" (19 mm) hole in the glass
- 3/16" (5 mm) gap between glass and wall

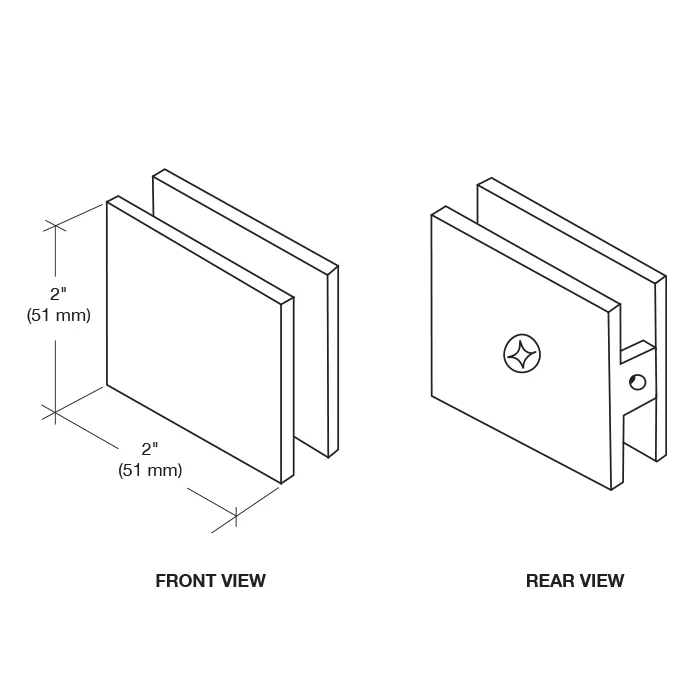

- 2" x 2" (51 x 51 mm)
- Mounting screws and gaskets included
Specs
| Finishes | 21 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Bathtub, Corner, Niche |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Replacement Clamping Screw | P615CH |
| Width | 2 in. (51 mm) |
Complete the look in Satin Brass
Common questions
What glass thickness does the CRL Square Hole-in-Glass Fixed Panel U-Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Satin Chrome, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Vintage Brass, Rose Gold, Gun Metal, Matte Gun Metal, Gloss White, Antique Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
