Oversized Fixed Panel U-Clamp — Polished Chrome
A larger U-clamp for fixed panels, recommended for 1/2" glass where the hole has to sit farther from the edge.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Oversized Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in 9 finishes, including polished chrome, brushed nickel, matte black.
This clamp does the same job as the standard U-clamp but is bigger, so the hole can sit one and a half times the glass thickness from the edge, as tempering plants often require for 1/2" (12 mm) glass. It mounts to the wall, ceiling or floor. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass.
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Recommended for 1/2" (12 mm) glass

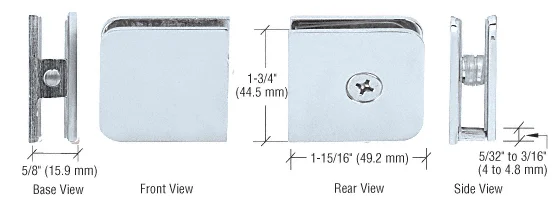

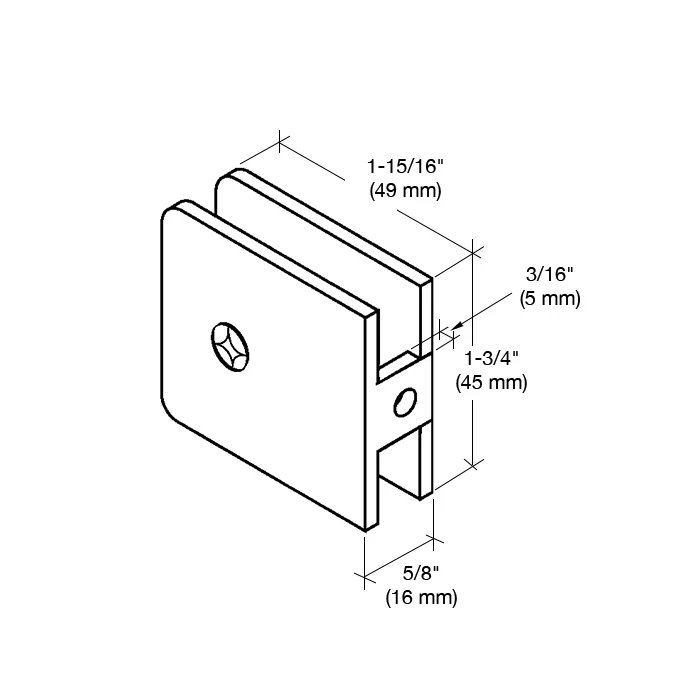

- 1-15/16" x 1-3/4" (49 x 44 mm)
- Mounts to wall, floor or ceiling
- Solid brass
Specs
| Finishes | 9 |
|---|---|
| Edge Profile | Beveled |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 1-15/16 in. (49 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Width | 1-3/4 in. (44 mm) |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Oversized Fixed Panel U-Clamp fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Polished Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
