Shower Glass Traditional Fixed Panel U-Clamp, Polished Chrome – CRL UC77CH
CRL · Part UC77CHIn stock

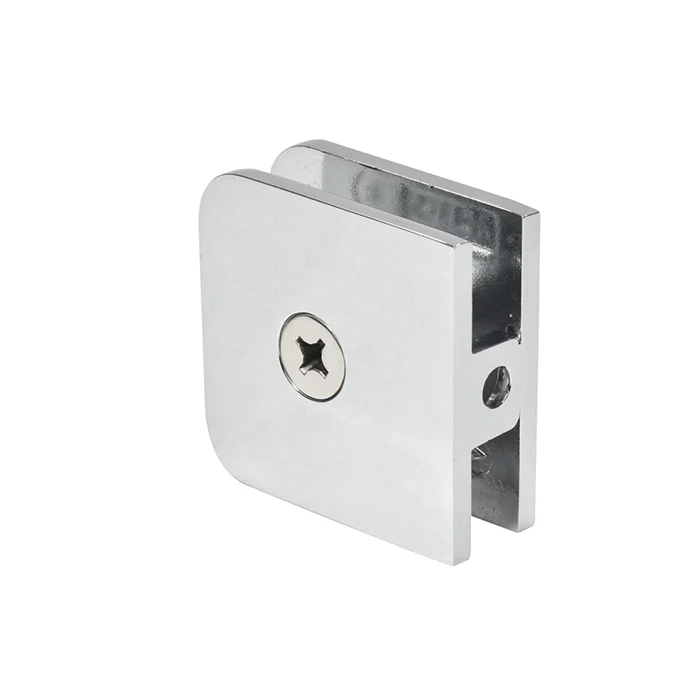

Traditional Fixed Panel U-Clamp — Polished Chrome

The classic rounded-corner U-clamp that holds a fixed glass panel to the wall, floor or ceiling.

Polished Chrome ·
$18.19
+ Free shipping
5.02 reviews
5/16"–1/2"Glass thickness
Wall MountMounting
Finish: Polished Chrome
Ships free to your doorFree to the lower 48 states and DC. Usually ships in 3–7 business days.
Free shippingLower 48 & DC
All sales finalCheck your glass thickness.
How-to guidesWritten by installers
OverviewSpecsFAQ

About this clamp

The CRL Traditional Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in 10 finishes, including polished chrome, brushed nickel, matte black.

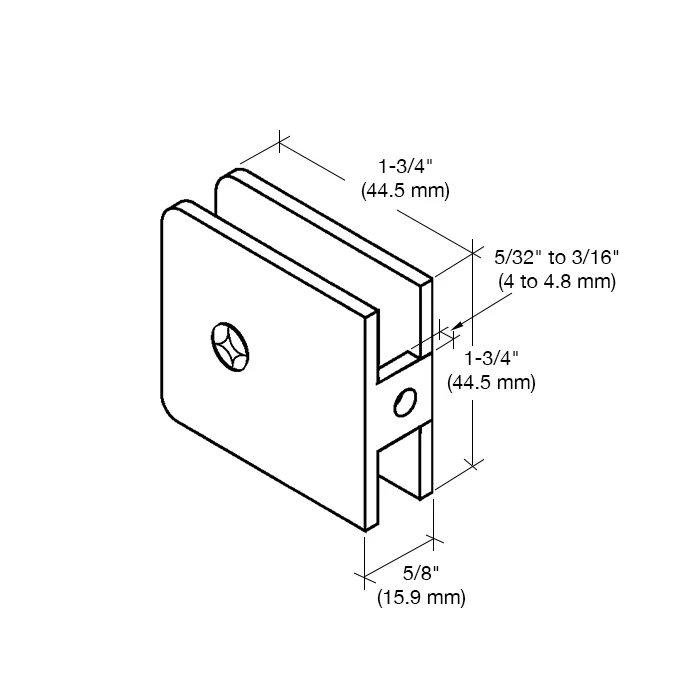

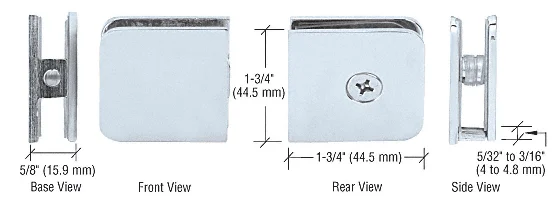

This traditional-style clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel through a hole in the glass. It leaves a 5/32" to 3/16" (4 to 5 mm) gap that you can seal with clear silicone. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass.

  • Fits 5/16" to 1/2" (8 to 12 mm) glass
  • 1-3/4" x 1-3/4" (44 x 44 mm)
  • 5/32" to 3/16" (4 to 5 mm) gap to the wall
  • Mounts to wall, floor or ceiling
  • Solid brass

Specs

Finishes10
Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)
Height1-3/4 in. (44 mm)
Length1-3/4 in. (44 mm)
MaterialBrass
Mounting TypeWall Mount
Matching hardware

Complete the look in Polished Chrome

Customer reviews

5.0 out of 52 reviews

I really like the traditional design and elegant...

I really like the traditional design and elegant oil-rubbed bronze finish of this U-clamp. Clean professional look that works beautifully with frameless shower enclosures. Practical fixed-panel mounting design.

Jerry Collins

Solid hinge, smooth action

Solid hinge with a clean finish. Door swings smoothly and closes reliably. Very satisfied with the quality.

Richard Evans

Common questions

What glass thickness does the CRL Traditional Fixed Panel U-Clamp fit?

5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.

How many clamps do I need?

This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.

What finishes does it come in?

Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.

Can I return it?

No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
