Shower Glass Beveled Hole-in-Glass Fixed Panel U-Clamp, Polished Chrome – CRL BCU4CH
CRL · Part BCU4CHIn stock

Beveled Hole-in-Glass Fixed Panel U-Clamp — Polished Chrome

A heavy-duty beveled U-clamp that holds a fixed glass panel to the wall, floor or ceiling.

Polished Chrome ·
$12.35
+ Free shipping
4.34 reviews
3/8"–1/2"Glass thickness
Wall / Ceiling MountMounting
Finish: Polished Chrome
Ships free to your doorFree to the lower 48 states and DC. Usually ships in 3–7 business days.
Free shippingLower 48 & DC
All sales finalCheck your glass thickness.
How-to guidesWritten by installers
OverviewSpecsFAQ

About this clamp

The CRL Beveled Hole-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 18 finishes, including polished chrome, brushed nickel, matte black.

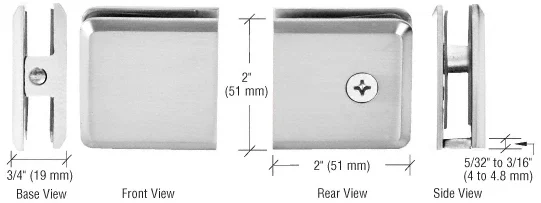

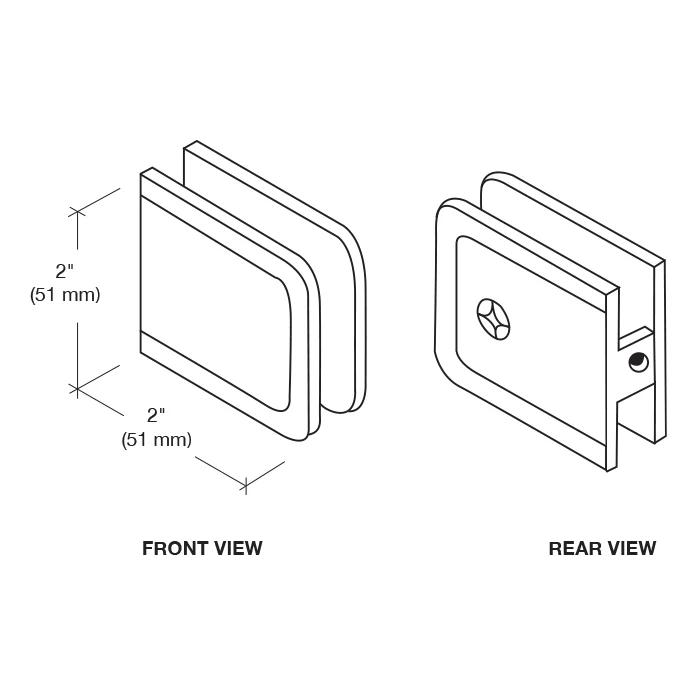

This beveled-edge clamp mounts to the wall, ceiling or floor and holds a vertical fixed glass panel through a hole drilled in the glass. It leaves a 3/16" (5 mm) gap between the glass and the wall, which you can fill with clear silicone. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass, with mounting screws and gaskets included.

  • Fits 3/8" to 1/2" (10 to 12 mm) glass
  • Needs a 3/4" (19 mm) hole in the glass
  • Beveled edges match beveled hinges
  • 3/16" (5 mm) gap between glass and wall
  • Mounting screws and gaskets included

Specs

Finishes18
Design StyleBeveled
Enclosure TypeBathtub, Corner, Niche
Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)
MaterialBrass
Mounting TypeWall / Ceiling Mount
Replacement Clamping ScrewP615CH
Matching hardware

Complete the look in Polished Chrome

Customer reviews

4.3 out of 54 reviews

This clamp is solid and looks clean once installed

This clamp is solid and looks clean once installed. No movement in the glass panel at all.

Michelle Diaz

Really good quality clamp

Really good quality clamp. Holds everything securely and the finish matches my other hardware well.

Katherine Wood

Holds glass firmly

Sturdy clamp that holds the glass firmly. Clean finish and straightforward installation. Recommend it.

Carol Parker

Clean modern appearance

Happy with this clamp. Solid construction and a clean modern appearance.

Katherine Stewart

Common questions

What glass thickness does the CRL Beveled Hole-in-Glass Fixed Panel U-Clamp fit?

3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.

How many clamps do I need?

This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.

What finishes does it come in?

Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Rose Gold, Matte Gun Metal, Dark Brushed Bronze, Antique Brushed Nickel. Match the finish of the hinges and other hardware on your shower.

Can I return it?

No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
