Secure hold
Really good quality clamp. Holds everything securely and the finish matches my other hardware well.

A square-edged U-clamp that holds the bottom or side of a fixed glass panel to the wall, floor or ceiling.
The CRL Square Hole-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 21 finishes, including polished chrome, brushed nickel, matte black.

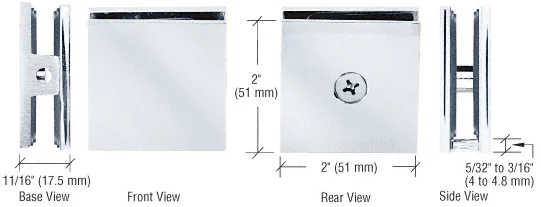

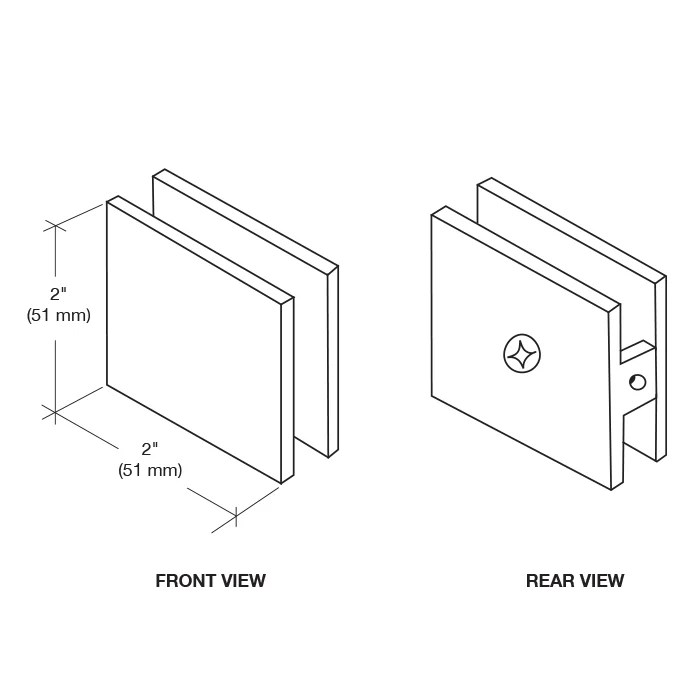

This square-style clamp mounts to the wall, ceiling or floor and holds a vertical fixed glass panel through a hole drilled in the glass. It leaves a 3/16" (5 mm) gap between the glass and the wall, which you can fill with clear silicone for a watertight look. Made of solid brass for 3/8" to 1/2" (10 to 12 mm) tempered glass; mounting screws and gaskets are included.
| Finishes | 21 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Bathtub, Corner, Niche |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Replacement Clamping Screw | P615CH |
| Width | 2 in. (51 mm) |
Really good quality clamp. Holds everything securely and the finish matches my other hardware well.
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Satin Chrome, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Vintage Brass, Rose Gold, Gun Metal, Matte Gun Metal, Gloss White, Antique Brass. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
