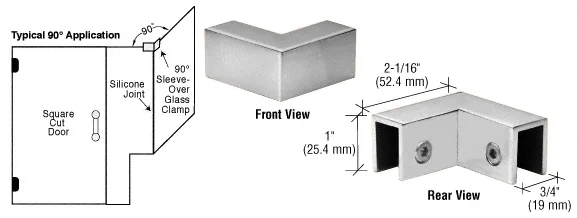

90° "Sleeve Over" Glass Clamp — Polished Chrome
Slides over the corner where two glass panels meet at 90° and locks on with set screws. No holes in the glass.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL 90° "Sleeve Over" Glass Clamp is a glass clamp for frameless glass showers; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in 11 finishes, including polished chrome, brushed nickel, matte black.
Sleeve over clamps fit over the edge of the glass and tighten with nylon-tipped set screws, so the glass doesn't need holes or notches. They hold the panels in place while the silicone in the joint cures and take the shear load after that; the silicone is what seals the joint and holds the panels together. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass.
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Joins two panels at 90°
- No holes or notches needed
- Tightens with nylon-tipped set screws
- Solid brass
Specs
| Finishes | 11 |
|---|---|
| Glass To Glass Angle | 90 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL 90° "Sleeve Over" Glass Clamp fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Unlacquered Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
