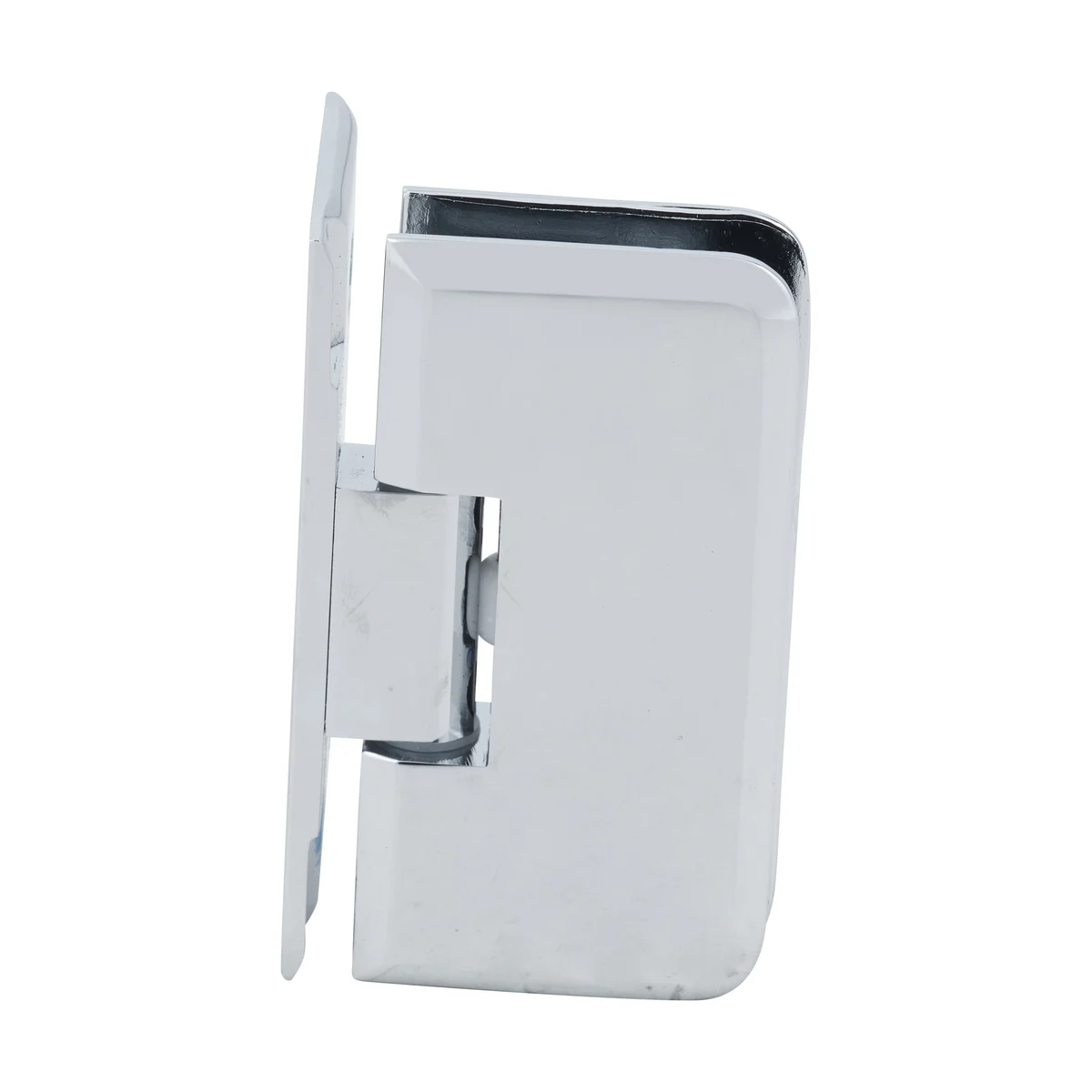

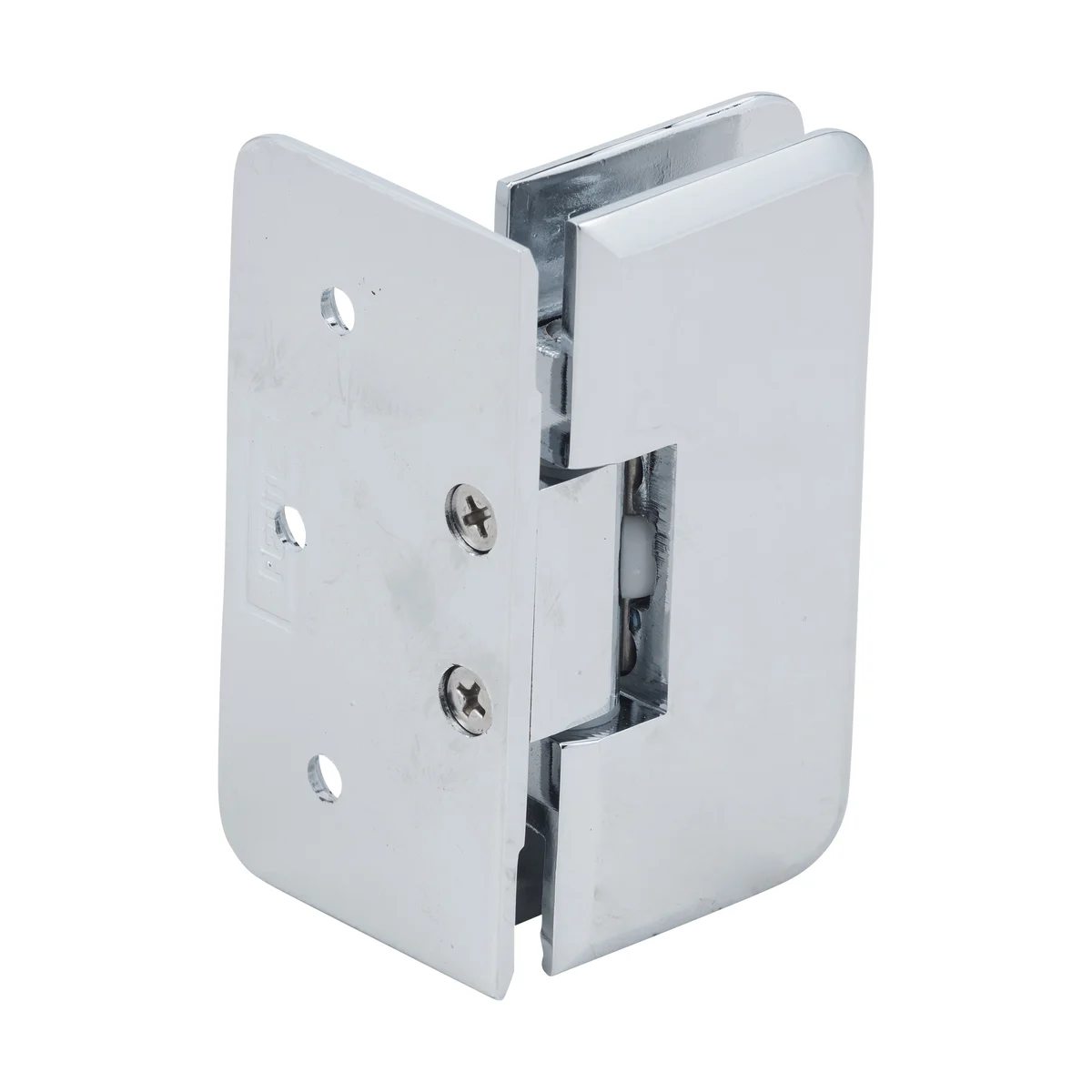

Shower Door Hinge – Petite 044 Wall Mount, Offset Back Plate — Polished Chrome
A beveled wall mount hinge with an offset back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Petite 044 Series Wall Mount Offset Back Plate Hinge (PET044) is a wall mount hinge for frameless glass shower doors; it fits 1/4" to 5/16" glass, and needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart in the glass. Made by C.R. Laurence (CRL) in 3 finishes, including polished chrome, brushed nickel, oil rubbed bronze.
The CRL Petite 044 Series Wall Mount Offset Back Plate Hinge (PET044). It mounts the door to the wall with an offset back plate. It fits 1/4" to 5/16" thick tempered glass. Two hinges hold a door up to 55 lb and 31" wide; three hold up to 82 lb. The part that clamps onto the glass is 3-1/2" x 1-3/4" (tall x wide). The glass needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart, per CRL's template. It takes the same glass cut-out as the 090 090, Petite 037. Made of brass.
- Fits 1/4" to 5/16" glass
- Holds a door up to 55 lb with 2 hinges
- Doors up to 31" wide
- 3-1/2" x 1-3/4" on the glass
- Glass cut-out: a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart
Specs
| Finishes | 3 |
|---|---|
| CRL model | PET044 |

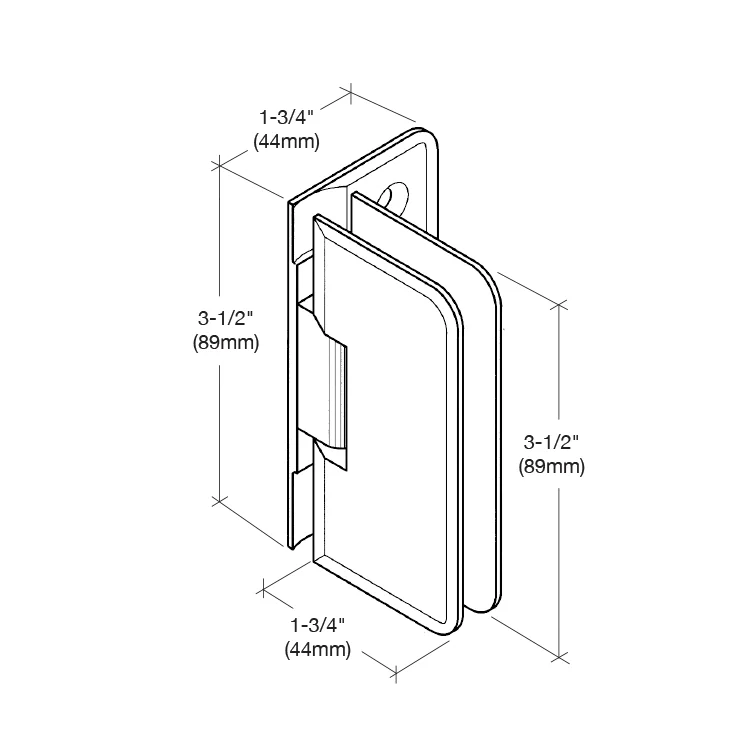

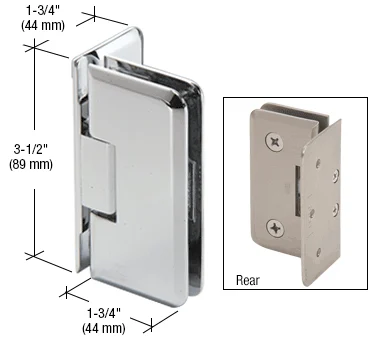

| Size on the glass (tall x wide) | 3-1/2" x 1-3/4" |
| Glass cut-out | A mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart |
| Max door weight | 55 lb with 2 hinges, 82 lb with 3 |
| Max door width | 31" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Edge Profile | Beveled |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges | 55 lbs. (24.9 kg) |
| Maximum Door Weight - 3 Hinges | 82 lbs. (37.2 kg) |
| Maximum Door Width - 2 Hinges | 31 |
| Maximum Door Width - 3 Hinges | 34 |
| Mounting Type | Wall Mount |
| Series | Petite |
| Width | 1-3/4 in. (44 mm) |
Glass cut-out
This hinge needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (2): these fit the same glass.
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL PET044 hinge fit?
1/4" to 5/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/2" x 1-3/4" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 55 lb and 31" wide, three hold up to 82 lb.
Which other hinges use the same cut-out?
Shower Door Hinge – Petite 037 Wall Mount, H Back Plate; Glass to Glass Shower Door Hinge 90° – 090 Series. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
