Glass to Glass Shower Door Hinge 90° – 090 Series — Satin Chrome
A beveled 90° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge

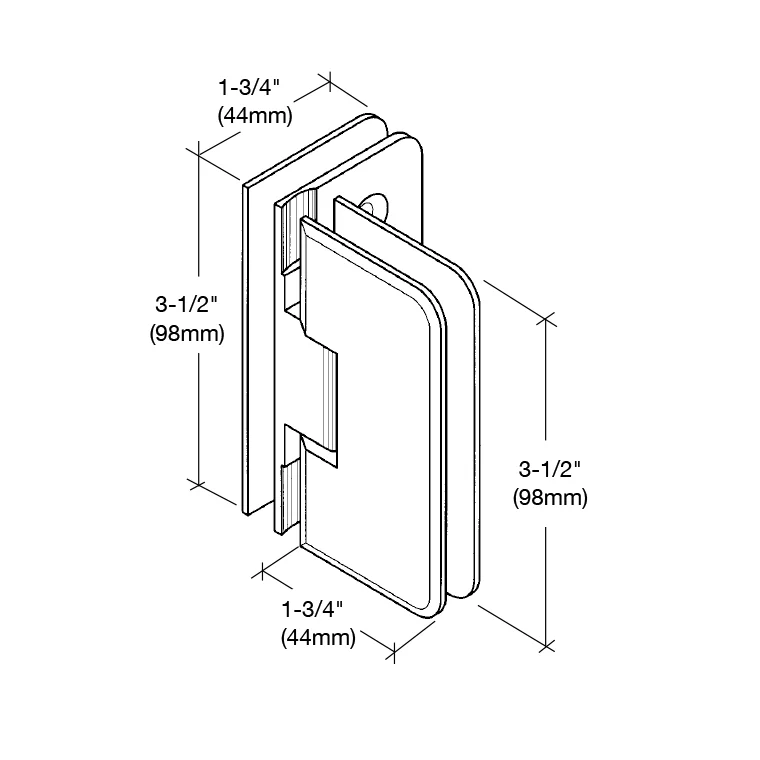

The CRL 090 Series 90 Degree Glass-to-Glass Hinge (PET090) is a glass-to-glass hinge for frameless glass shower doors; it fits 1/4" to 5/16" glass, and needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart in the glass. Made by C.R. Laurence (CRL) in satin chrome.
The CRL 090 Series 90 Degree Glass-to-Glass Hinge (PET090). It hangs the door from a fixed glass panel at 90°. It fits 1/4" to 5/16" thick tempered glass. Two hinges hold a door up to 55 lb and 31" wide; three hold up to 82 lb. The glass needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart, per CRL's template. It takes the same glass cut-out as the Petite 037, Petite 044.
- Fits 1/4" to 5/16" glass
- Holds a door up to 55 lb with 2 hinges
- Doors up to 31" wide
- Glass cut-out: a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart
Specs
| Finishes | 1 |
|---|---|
| CRL model | PET090 |
| Glass cut-out | A mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart |
| Max door weight | 55 lb with 2 hinges, 82 lb with 3 |
| Max door width | 31" |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |
| Maximum Door Weight - 2 Hinges | 55 lbs. (24.9 kg) |
| Maximum Door Weight - 3 Hinges | 82 lbs. (37.2 kg) |
| Maximum Door Width - 2 Hinges | 31 |
| Maximum Door Width - 3 Hinges | 34 |
| Mounting Type | Glass To Glass |
| Swing | In Or Out |
Glass cut-out
This hinge needs a mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (2): these fit the same glass.
Complete the look in Satin Chrome
Common questions
What glass thickness does the CRL PET090 hinge fit?
1/4" to 5/16" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 2-3/8" long x 1-3/8" deep, holes 2-1/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 55 lb and 31" wide, three hold up to 82 lb.
Which other hinges use the same cut-out?
Shower Door Hinge – Petite 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Petite 037 Wall Mount, H Back Plate. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Satin Chrome. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
