Clear Vinyl Bulb Seal, 1/8" to 5/32" Gap
Most popular hinge-side seal. The bulb compresses as the door closes.
The CRL SDTJ is a 95-inch clear vinyl bulb seal, 1/8" to 5/32" gap, closing gaps 1/8" to 5/32". Made by C.R. Laurence (CRL); available in clear.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
- Closes gaps 1/8" to 5/32"
- Most popular for the hinge side
- Inswing or outswing
- Tape not included
- Minimum order: 5
About this seal

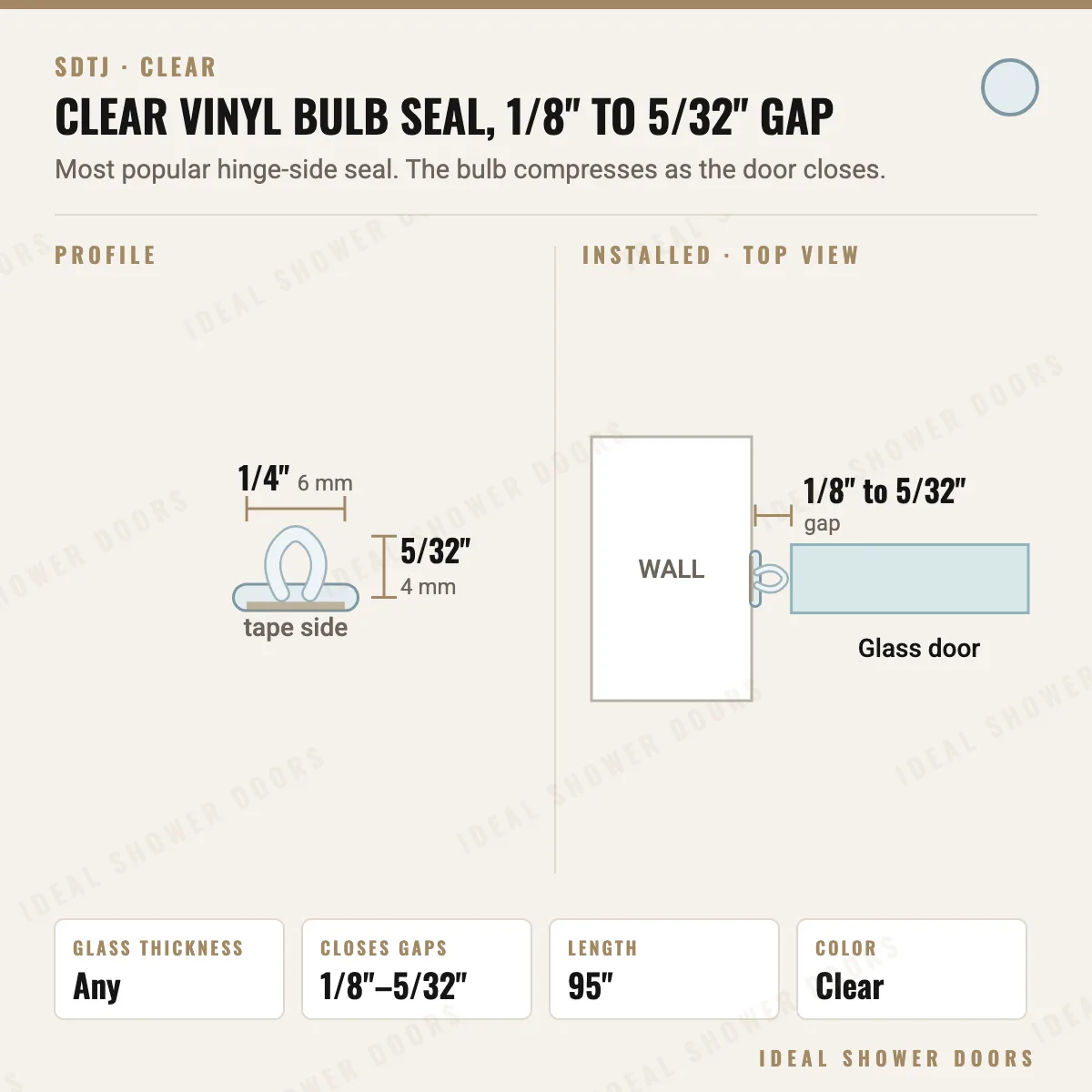

The flat base mounts to the glass edge or wall, and the hollow bulb squeezes shut as the door closes, sealing gaps from 1/8" to 5/32". Works on inswing or outswing doors. Mount with clear double-sided VHB tape (not included). 95" length, cut to fit. Sold in a minimum of 5.
Fit & specs
| Glass thickness | Any |
|---|---|
| Gap | 1/8" to 5/32" |
| Door swing | Inswing or outswing |
| Installs by | Clear VHB tape (not included) |
| Used for | Hinge or pivot side Door against a wall Latch (strike) side |
| Length | 95 in. (2413 mm) |
| Material | Vinyl |
| Pre-Applied Tape | No |
Common questions
Does the SDTJ depend on glass thickness?
No. The SDTJ mounts to the glass edge or wall, so choose it by the gap it closes (1/8" to 5/32") rather than by glass thickness.
What gap does the SDTJ seal?
It closes gaps from 1/8" to 5/32". Measure with the door closed.
How do I install the CRL SDTJ?
Mount it with clear double-sided VHB tape (sold separately) on a clean, dry glass edge or wall.
How do I cut the CRL SDTJ to length?
Measure the glass edge where the seal goes, then cut the seal to that length with plastic trim snips like the CRL PTS89 or a fine-tooth hacksaw. The snips give a clean, straight or angled cut in one squeeze.
How long is the SDTJ?
It comes in a 95" length that you cut to fit your door.
Can I return the SDTJ?
No. All sales are final: due to the nature of shipping these long seals, items cannot be returned. Measure your glass thickness and check the suggested gap before you order; our measuring guide shows how.
