Common questions
What glass thickness does the CRL GEN380 hinge fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

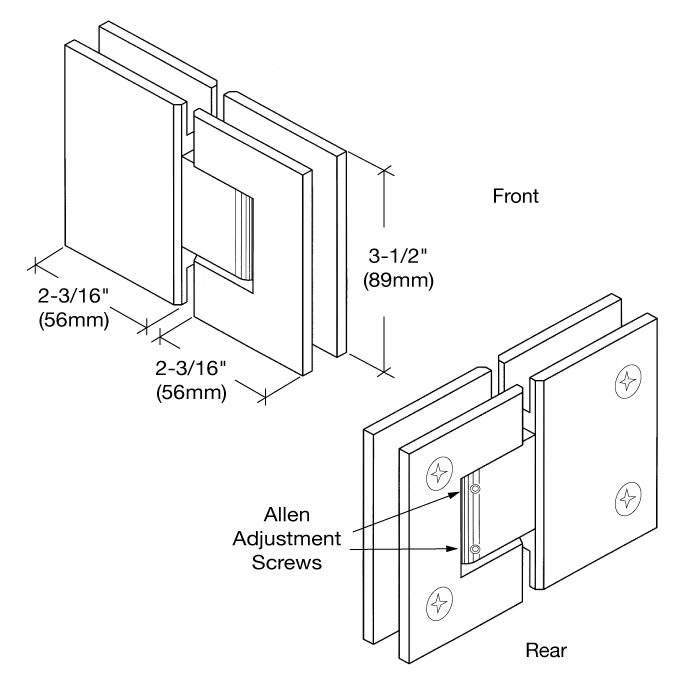

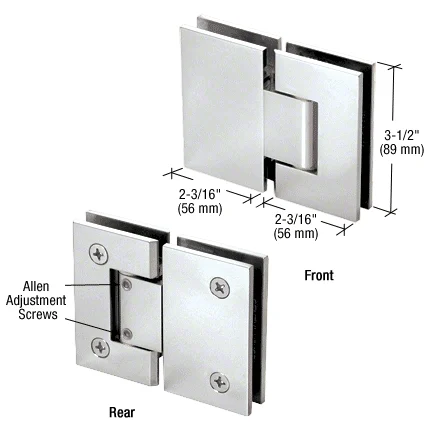

How big is the hinge on the glass?
The part that clamps onto the glass is 3-1/2" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 80 lb and 28" wide, three hold up to 120 lb.
Which other hinges use the same cut-out?
Shower Door Hinge – Geneva 037 Wall Mount, Full Back Plate; Shower Door Hinge – Pinnacle 037 Wall Mount, H Back Plate; Shower Door Hinge – Geneva 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Geneva 074 Wall Mount, Short Back Plate; Shower Door Hinge – Pinnacle 044 Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Geneva 180, and 18 more. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Polished Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
