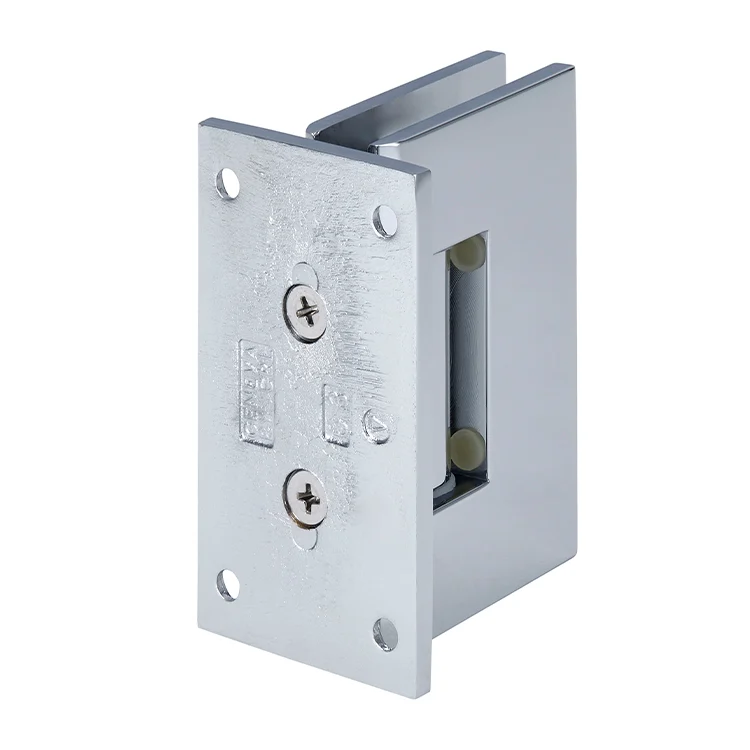

A square-edged wall mount hinge with a full back plate for frameless glass shower doors.
The CRL Geneva 537 Series Wall Mount Full Back Plate Standard Hinge With 5 Degree Offset (GEN537) is a wall mount hinge for frameless glass shower doors; it fits 5/16" to 1/2" glass, and needs a mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart in the glass. Made by C.R. Laurence (CRL) in 7 finishes, including polished chrome, brushed nickel, matte black.
The CRL Geneva 537 Series Wall Mount Full Back Plate Standard Hinge With 5 Degree Offset (GEN537). It mounts the door to the wall with a full back plate. It fits 5/16" to 1/2" thick tempered glass. Two hinges hold a door up to 80 lb and 28" wide; three hold up to 120 lb. The part that clamps onto the glass is 3-1/2" x 2-3/16" (tall x wide). The glass needs a mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart, per CRL's template. It takes the same glass cut-out as the Geneva 037, Geneva 044, Geneva 074, Geneva 092 and others. Made of brass.
| Finishes | 7 |
|---|---|
| CRL model | GEN537 |
| Size on the glass (tall x wide) | 3-1/2" x 2-3/16" |
| Glass cut-out | A mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart |
| Max door weight | 80 lb with 2 hinges, 120 lb with 3 |
| Max door width | 28" |
| 5 Degree Pre-Set | Yes |
| Adjustable | No |
| Back Plate | Full |
| Edge Profile | Square |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width - 2 Hinges | 28 |
| Maximum Door Width - 3 Hinges | 32 |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Geneva |
| Width | 2-3/16 in. (56 mm) |
This hinge needs a mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (24): these fit the same glass.
Happy with the quality and how clean it looks once installed. No issues at all.
This hinge does exactly what it should. Sturdy, smooth, and a nice finish.
Quality feels excellent. The hinge is solid, the finish is even, and installation went smoothly.
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
A mouse-ear notch 2-1/2" long x 1-3/4" deep, holes 2-1/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

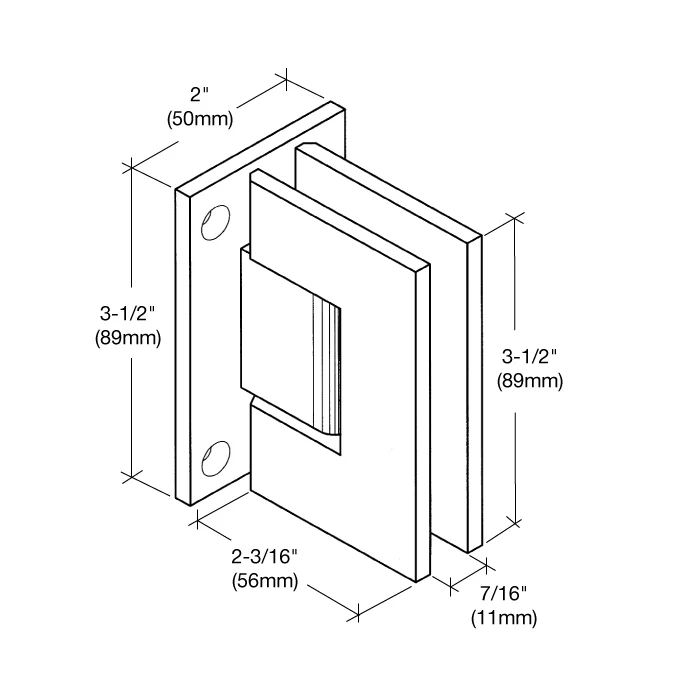

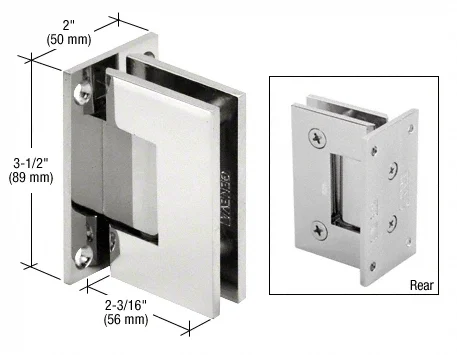

The part that clamps onto the glass is 3-1/2" x 2-3/16" (tall x wide).
This is one hinge. Most doors hang on two; two of these hold a door up to 80 lb and 28" wide, three hold up to 120 lb.
Shower Door Hinge – Geneva 037 Wall Mount, Full Back Plate; Shower Door Hinge – Pinnacle 037 Wall Mount, H Back Plate; Shower Door Hinge – Geneva 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Geneva 074 Wall Mount, Short Back Plate; Shower Door Hinge – Pinnacle 044 Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Geneva 180, and 18 more. Hinges that share a cut-out can replace each other on the same glass.
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Polished Brass. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
