Beveled 90° Glass-to-Glass Clamp — Polished Chrome
Joins two fixed glass panels at a 90° corner, with beveled edges that match beveled hinges.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Beveled 90° Glass-to-Glass Clamp is a glass clamp for frameless glass showers that joins two panels of glass at 90°; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 16 finishes, including polished chrome, brushed nickel, matte black.

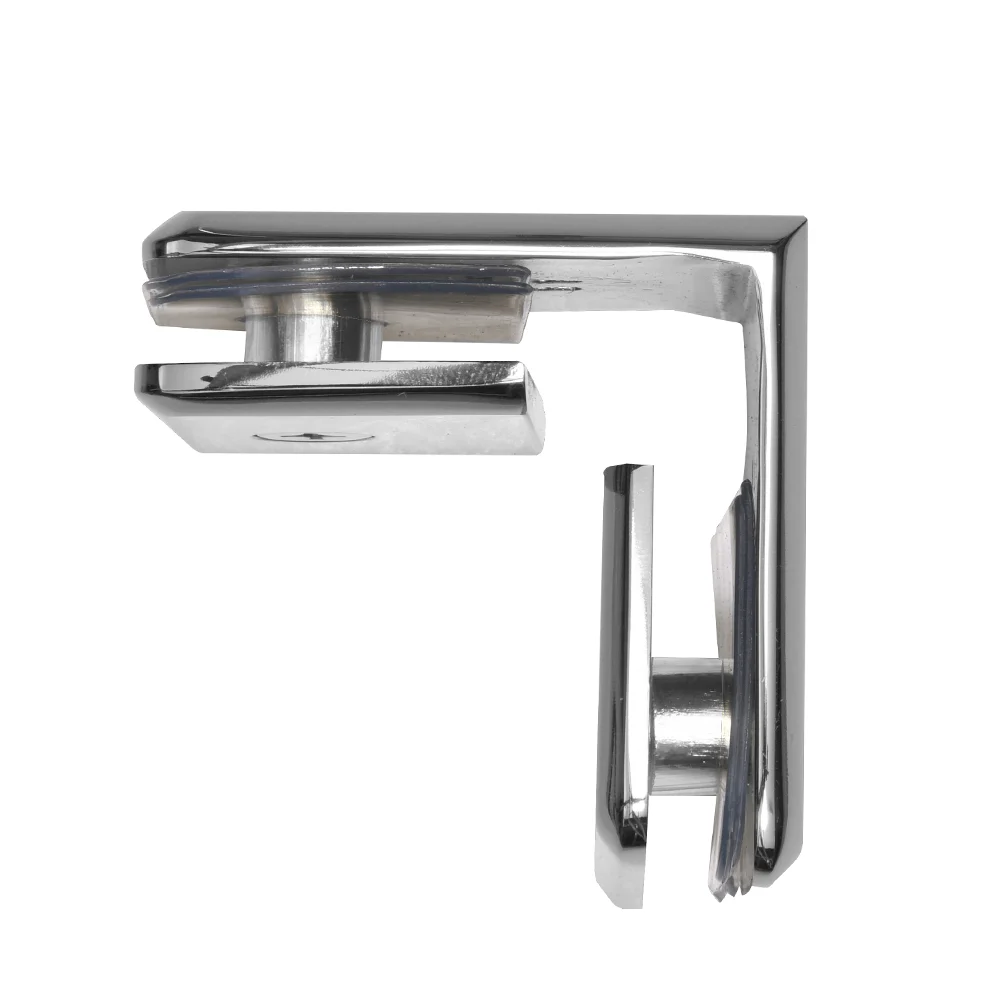

This beveled clamp connects two fixed panels that meet at 90°. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; each panel needs a 3/4" (19 mm) hole. Gaskets are included.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Joins two panels at 90°
- Needs a 3/4" (19 mm) hole in the glass (each panel)
- Beveled edges match beveled hinges
- Gaskets included
Specs
| Finishes | 16 |
|---|---|
| Design Style | Beveled |
| Enclosure Type | Bathtub, Corner, Niche |
| Glass To Glass Angle | 90 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Beveled 90° Glass-to-Glass Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Matte Gun Metal, Matte Gun Metal, Dark Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Square Hole-in-Glass Fixed Panel U-Clamp
Beveled Hole-in-Glass Fixed Panel U-Clamp
Square 90° Glass-to-Glass Clamp
90° "Sleeve Over" Glass Clamp
Oversized Fixed Panel U-Clamp
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
