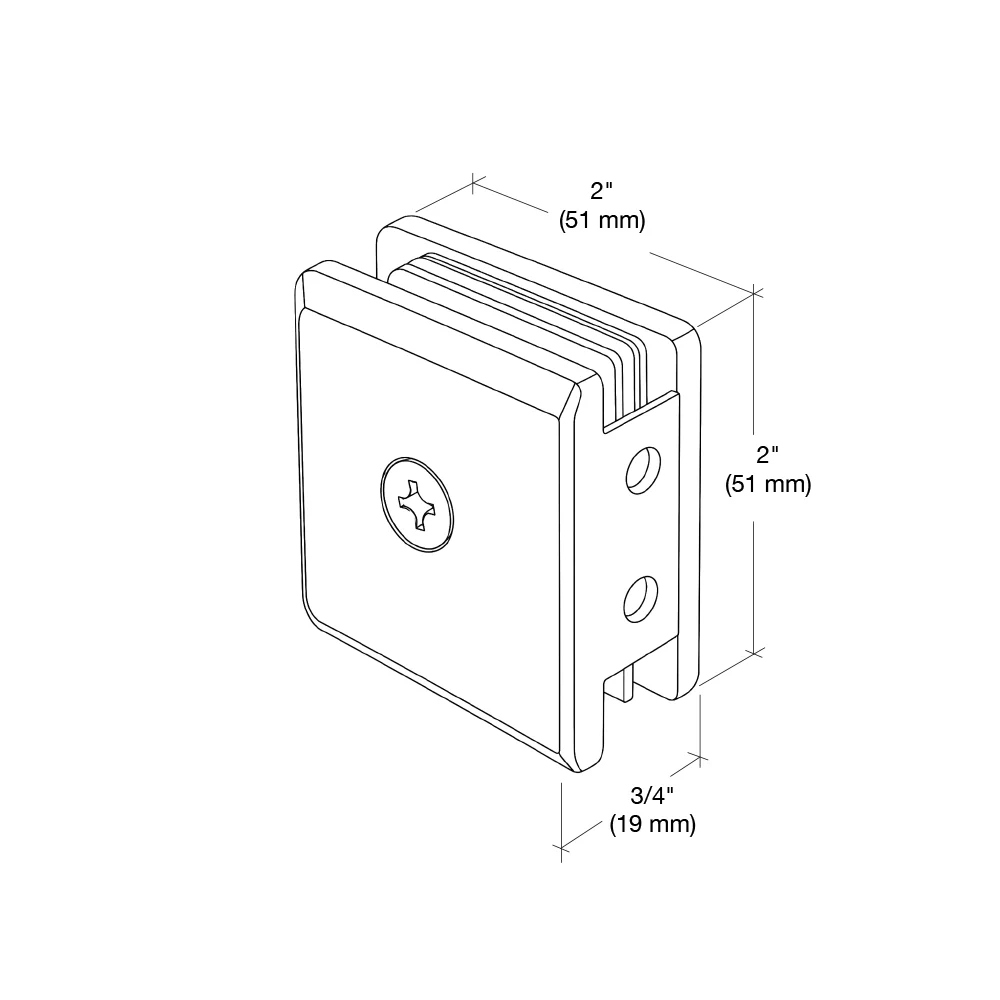

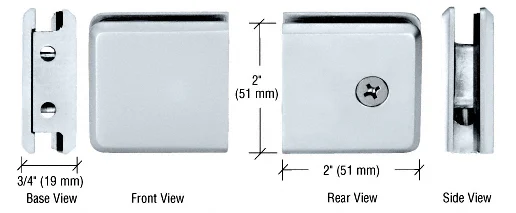

Beveled Notch-in-Glass Fixed Panel U-Clamp — Polished Chrome
A beveled U-clamp for fixed panels with a notch cut in the glass edge instead of a hole.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Beveled Notch-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 11 finishes, including polished chrome, brushed nickel, matte black.
This beveled clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel that has a notch cut in its edge. It leaves only a 1/16" (2 mm) gap to the wall. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; mounting screws and gaskets are included.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a notch in the glass edge
- Beveled edges match beveled hinges
- 1/16" (2 mm) gap to the wall
- Mounting screws and gaskets included
Specs
| Finishes | 11 |
|---|---|
| Design Style | Beveled |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Wall / Ceiling Mount |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Beveled Notch-in-Glass Fixed Panel U-Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Unlacquered Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
