Traditional 180° Split Face and "Y" Inline Clamp — Polished Chrome
Joins two panels inline, or holds a panel flush with the edge of a tile or marble wall.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp

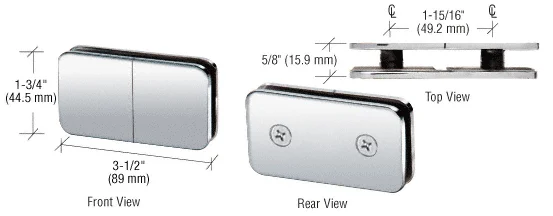

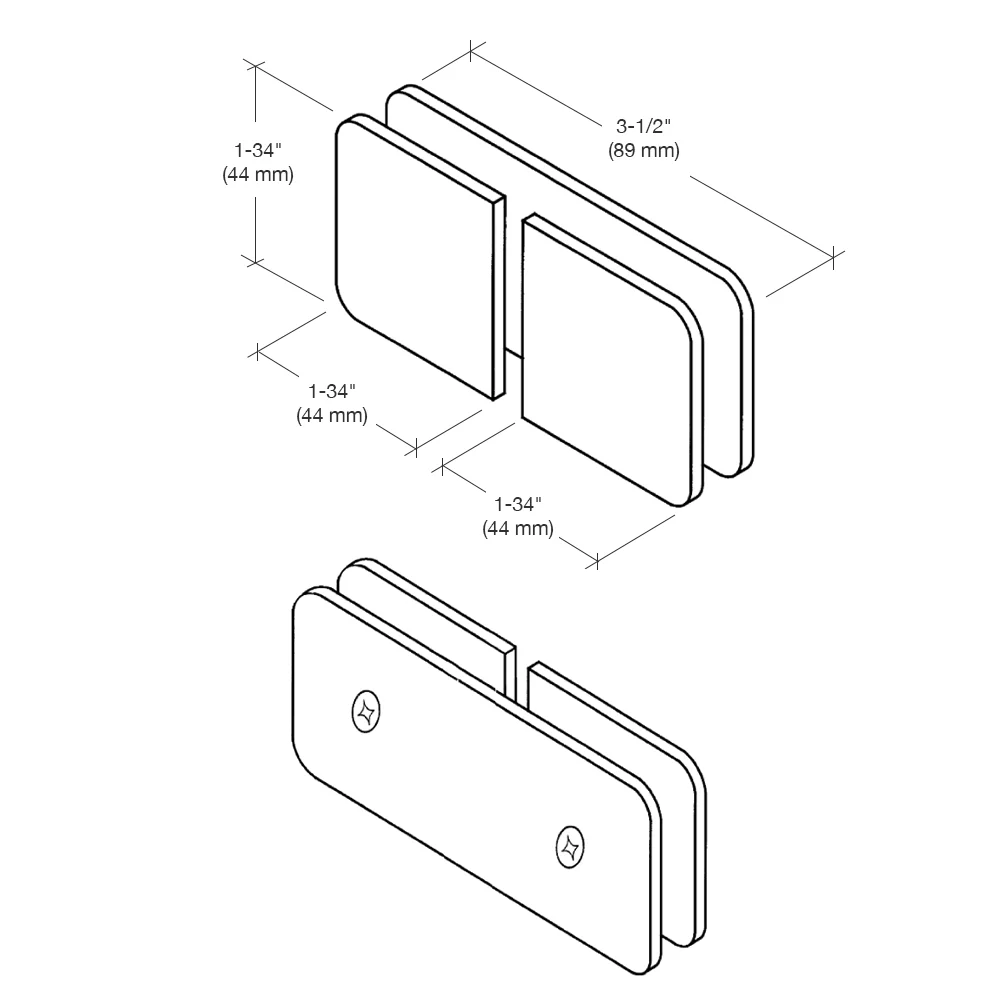

The CRL Traditional 180° Split Face and "Y" Inline Clamp is a glass clamp for frameless glass showers; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in polished chrome.
This two-way traditional clamp connects glass panels inline, or works as a "Y" clamp to fasten a panel flush with the edge of a marble or tile wall; an extra screw for the "Y" setup is included. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass.
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Inline (180°) or "Y" mounting
- Extra screw for "Y" use included
- Glass needs a hole
- Solid brass
Specs
| Finishes | 1 |
|---|---|
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
| Series | Traditional |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Traditional 180° Split Face and "Y" Inline Clamp fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
