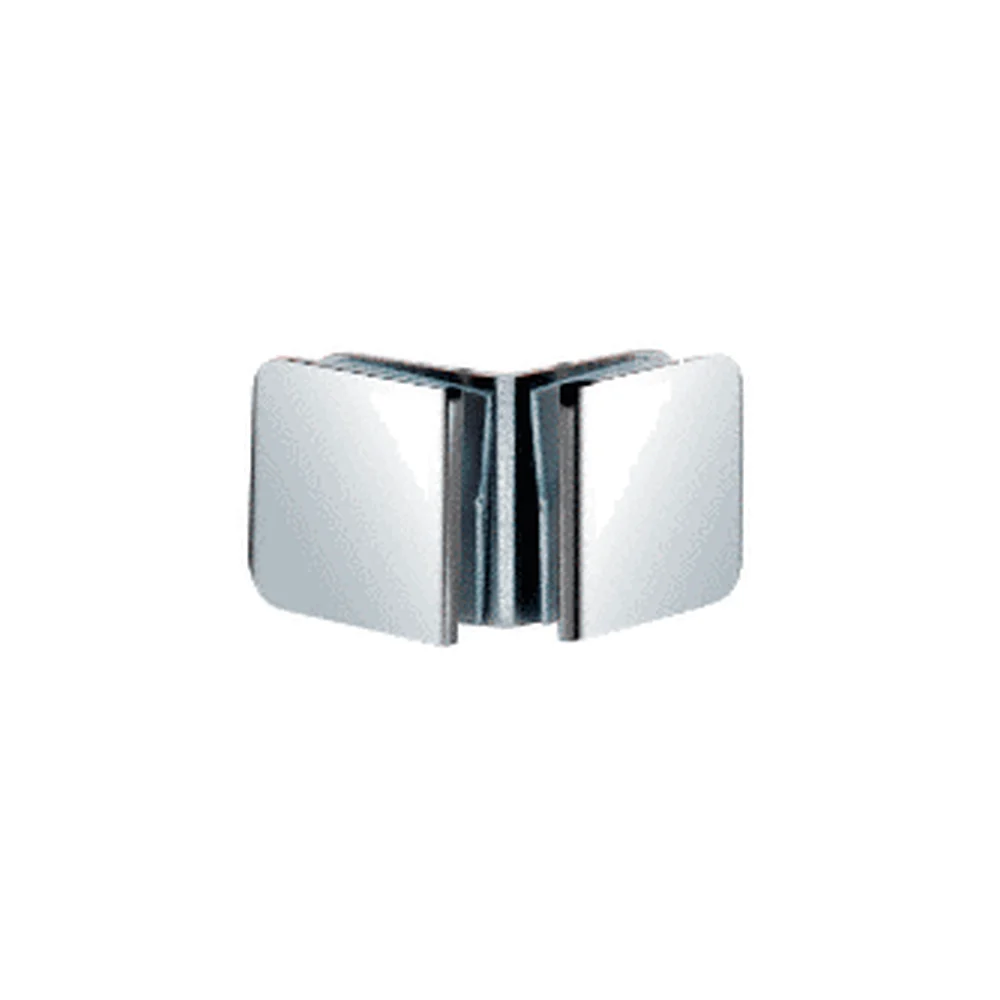

Traditional 90° Glass-to-Glass Clamp — Polished Chrome
A rounded traditional-style clamp that joins two panels at 90°, or holds a glass shelf.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Traditional 90° Glass-to-Glass Clamp is a glass clamp for frameless glass showers that joins two panels of glass at 90°; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in 10 finishes, including polished chrome, brushed nickel, matte black.
This traditional clamp connects two fixed panels meeting at 90°, with a minimal gap between them. It also works as a bracket for a horizontal glass shelf, mounted flush to the wall. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass; mounting screws and clear gaskets are included.
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Joins two panels at 90°
- Also works as a glass shelf bracket
- Glass needs a hole
- Screws and clear gaskets included

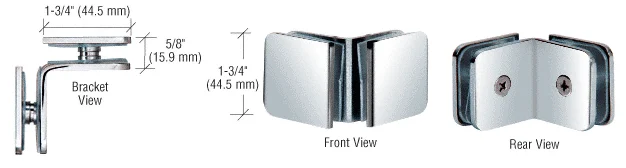

Specs
| Finishes | 10 |
|---|---|
| Glass To Glass Angle | 90 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
| Series | Traditional |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Traditional 90° Glass-to-Glass Clamp fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
