'Y' Jamb with Soft Leg, 180°, for 3/8" Glass
Straight-line seal with a soft leg for a quieter close.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this seal
The CRL PCC10 is a 95-inch 'y' jamb with soft leg, 180°, for 3/8-inch glass, with a suggested 3/16" gap. Made by C.R. Laurence (CRL); available in clear, black, white.

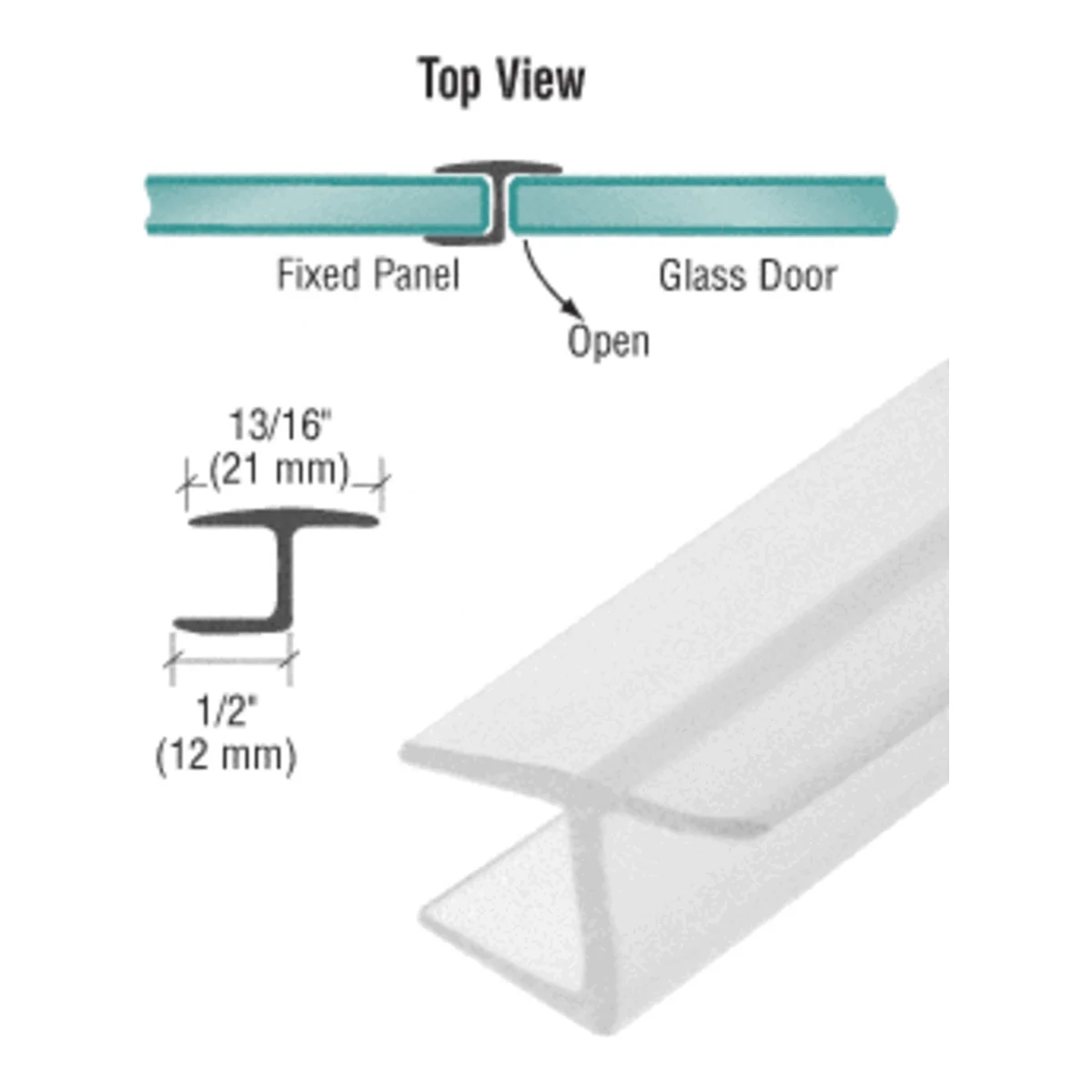

A rigid 'U' pressure fits onto the fixed panel, and a soft vinyl leg cushions the door as it closes, so it seals without the clack of hard plastic. For doors that close in a straight line. For 3/8" glass. 95" length, cut to fit.
- Soft leg for a quiet close
- Rigid clip stays put
- Suggested gap: 3/16"
- 95" length, cut to fit
Fit & specs
| Glass thickness | 3/8" |
|---|---|
| Gap | 3/16" |
| Installs by | Pressure fits onto the glass |
| Used for | Door to fixed glass panel (straight line) Latch (strike) side |
| Length | 95 in. (2413 mm) |
| Material | Polycarbonate |
| Pre-Applied Tape | No |
Common questions
What glass thickness does the CRL PCC10 fit?
The CRL PCC10 fits 3/8" glass. Measure your glass at the edge before ordering; a seal made for a different thickness will not stay on.
What gap does the PCC10 seal?
The suggested gap is 3/16". Measure with the door closed.
How do I install the CRL PCC10?
It pressure fits onto the edge of the glass; no glue or tape needed. Clean and dry the edge first.
How do I cut the CRL PCC10 to length?
Measure the glass edge where the seal goes, then cut the seal to that length with plastic trim snips like the CRL PTS89 or a fine-tooth hacksaw. The snips give a clean, straight or angled cut in one squeeze.
How long is the PCC10?
It comes in a 95" length that you cut to fit your door.
What colors does the PCC10 come in?
Clear, Black, White.
Can I return the PCC10?
No. All sales are final: due to the nature of shipping these long seals, items cannot be returned. Measure your glass thickness and check the suggested gap before you order; our measuring guide shows how.
