Square Fixed Panel Clamp with Small Leg — Polished Chrome
A square wall clamp with a 90° leg that holds a fixed glass panel to the wall, floor or ceiling.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Square Fixed Panel Clamp with Small Leg is a glass clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 10 finishes, including polished chrome, brushed nickel, matte black.

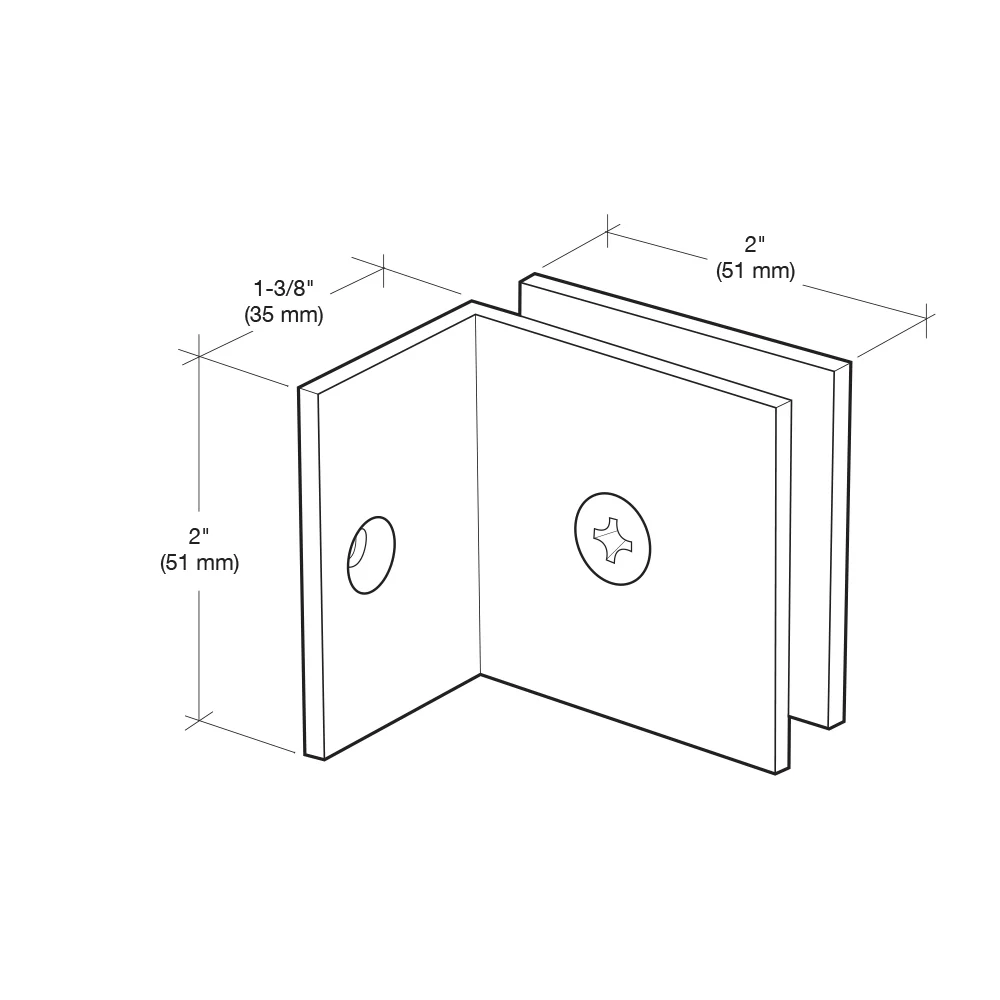

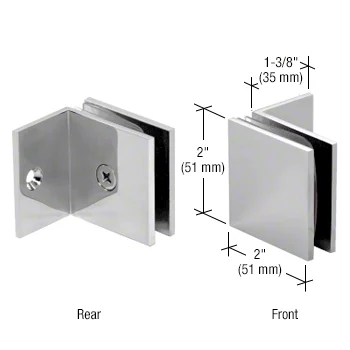

This square-edged clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel through a 3/4" (19 mm) hole in the glass. The 90° leg gives it a stronger mounting surface. It leaves a 3/16" (5 mm) gap that you can seal with clear silicone. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a 3/4" (19 mm) hole in the glass
- 1-3/8" (35 mm) leg
- 3/16" (5 mm) gap to the wall
- Mounting screws and gaskets included
Specs
| Finishes | 10 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Leg Width | 1-3/8 in. (35 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Width | 2 in. (51 mm) |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Square Fixed Panel Clamp with Small Leg fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Polished Brass, Unlacquered Brass, Antique Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
