Square Fixed Panel Clamp with Large Leg — Polished Chrome
A square wall clamp with a large 90° leg that covers more of the wall, for fixed glass panels.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Square Fixed Panel Clamp with Large Leg is a glass clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 10 finishes, including polished chrome, brushed nickel, matte black.

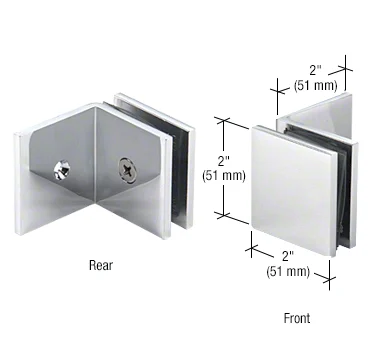

This square-edged clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel through a 3/4" (19 mm) hole in the glass. Its large 90° leg adds strength and covers more tile. It leaves only a 1/16" (2 mm) gap to the wall. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a 3/4" (19 mm) hole in the glass
- 2" (51 mm) leg covers more tile
- 1/16" (2 mm) gap to the wall

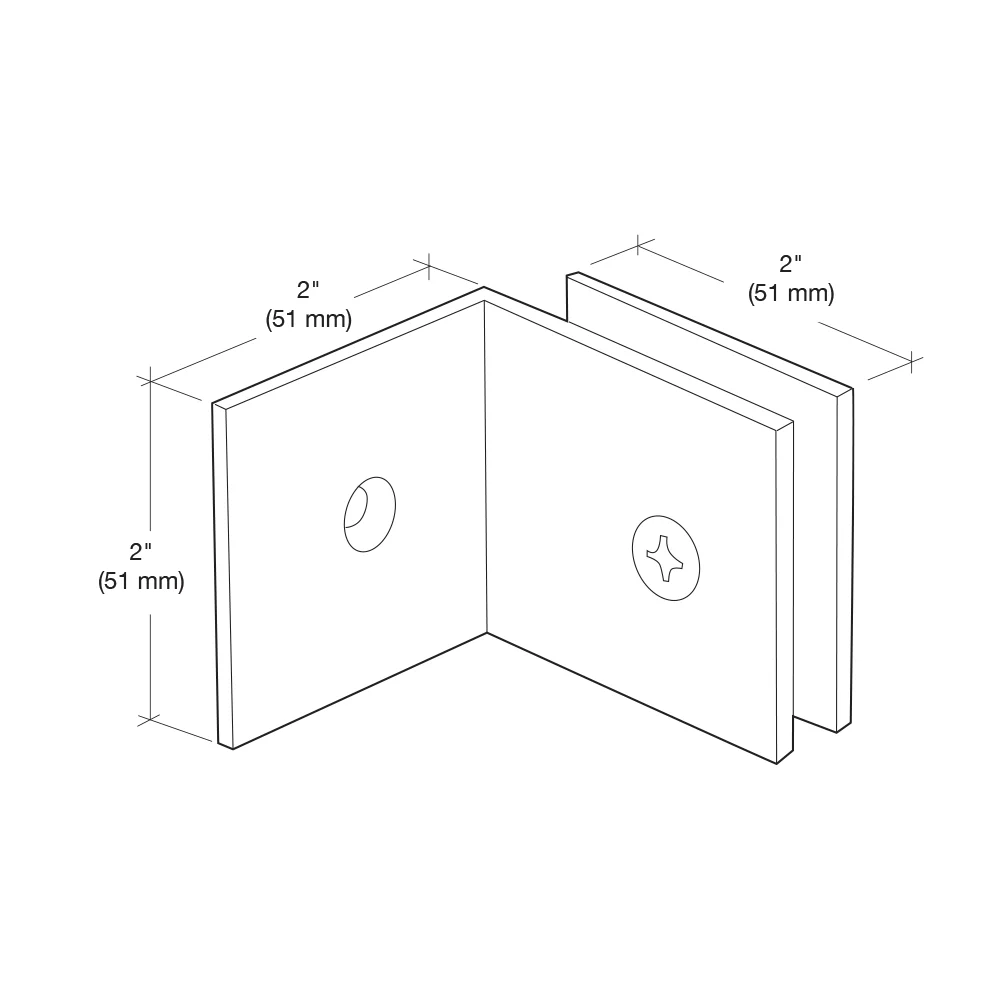

- 2" x 2" (51 x 51 mm)
Specs
| Finishes | 10 |
|---|---|
| Case Quantity | 50 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Leg Width | 2 in. (51 mm) |
| Length | 2 in. (51 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Width | 2 in. (51 mm) |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Square Fixed Panel Clamp with Large Leg fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Brushed Bronze, Satin Chrome, Polished Brass, Gun Metal, Antique Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Square Hole-in-Glass Fixed Panel U-Clamp
Beveled Hole-in-Glass Fixed Panel U-Clamp
Square 90° Glass-to-Glass Clamp
90° "Sleeve Over" Glass Clamp
Oversized Fixed Panel U-Clamp
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
