Open Face 90° Square Glass Clamp — Polished Nickel
A square 90° clamp with an open face for a lighter, more modern look.
About this clamp

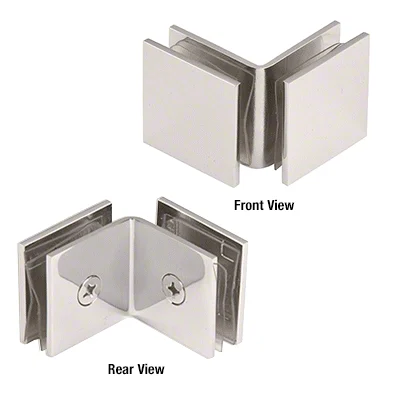

The CRL Open Face 90° Square Glass Clamp is a glass clamp for frameless glass showers; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
This square clamp joins two fixed panels meeting at 90°. Its open face design shows more glass than a closed-back clamp. For 3/8" to 1/2" (10 to 12 mm) tempered glass.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Joins two panels at 90°
- Open face design

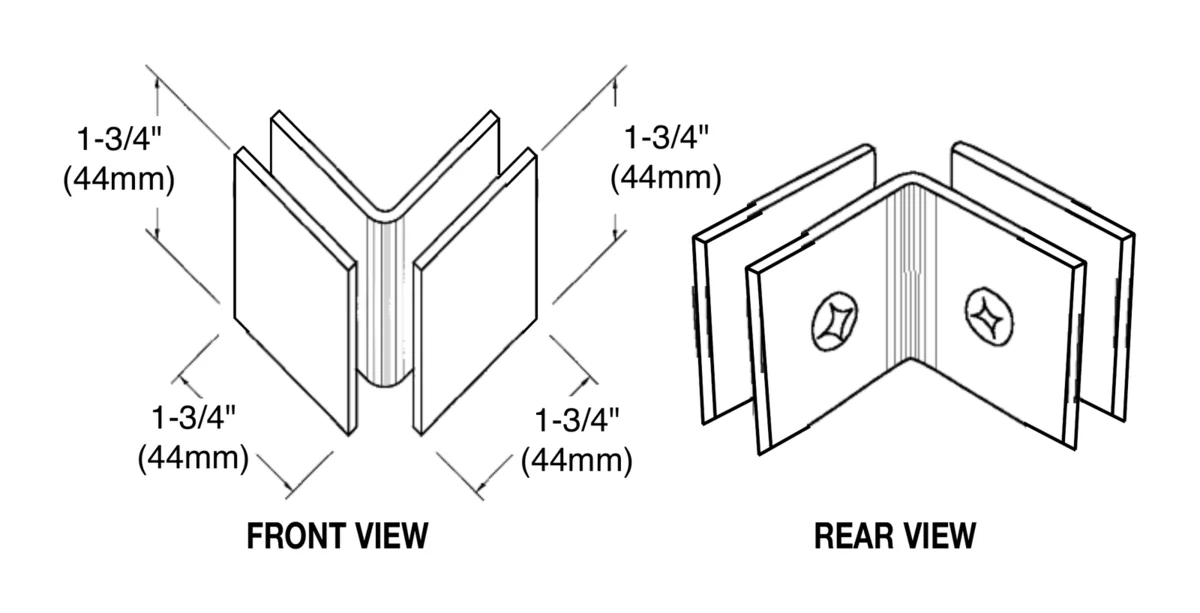

- 1-3/4" (44 mm) tall, 1-3/4" (44 mm) legs
Specs
| Finishes | 5 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 90 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 1-3/4 in. (44 mm) |
| Leg Width | 1-3/4 in. (44 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Complete the look in Polished Nickel
Common questions
What glass thickness does the CRL Open Face 90° Square Glass Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Square Hole-in-Glass Fixed Panel U-Clamp
Beveled Hole-in-Glass Fixed Panel U-Clamp
Square 90° Glass-to-Glass Clamp
90° "Sleeve Over" Glass Clamp
Oversized Fixed Panel U-Clamp
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
