Square 135° Glass-to-Glass Clamp — Polished Chrome
Joins two fixed panels at 135°, as in a neo-angle shower, with sharp square edges.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Square 135° Glass-to-Glass Clamp is a glass clamp for frameless glass showers that joins two panels of glass at 135°; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 7 finishes, including polished chrome, brushed nickel, matte black.
This square-edged clamp connects two panels meeting at 135°. The glass can be mitered or flat edged. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; each panel needs a 3/4" (19 mm) hole.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Joins two panels at 135°
- Needs a 3/4" (19 mm) hole in the glass (each panel)

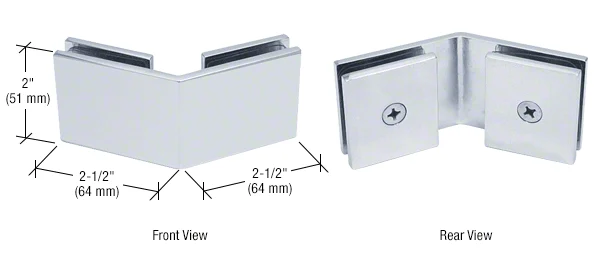

- 2" (51 mm) tall, 2-1/2" (64 mm) legs
- Solid brass
Specs
| Finishes | 7 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Tailor Made Solutions |
| Glass To Glass Angle | 135 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Leg Width | 2-1/2 in. (64 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Square 135° Glass-to-Glass Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
