Square "Y" Inline Corner Glass Clamp — Brushed Nickel
For a fixed panel set at the outside edge of the wall, with square edges.
About this clamp
The CRL Square "Y" Inline Corner Glass Clamp is a glass clamp for frameless glass showers; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 3 finishes, including polished chrome, brushed nickel, matte black.
This "Y" clamp is used when a fixed panel is moved to the outside edge of the enclosure. Its square edges match square-profile hinges. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; the glass needs a hole, and a wood screw is included for the wall.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- For a panel at the outside edge of the wall
- Square edges match square hinges
- Wood screw included
- Solid brass

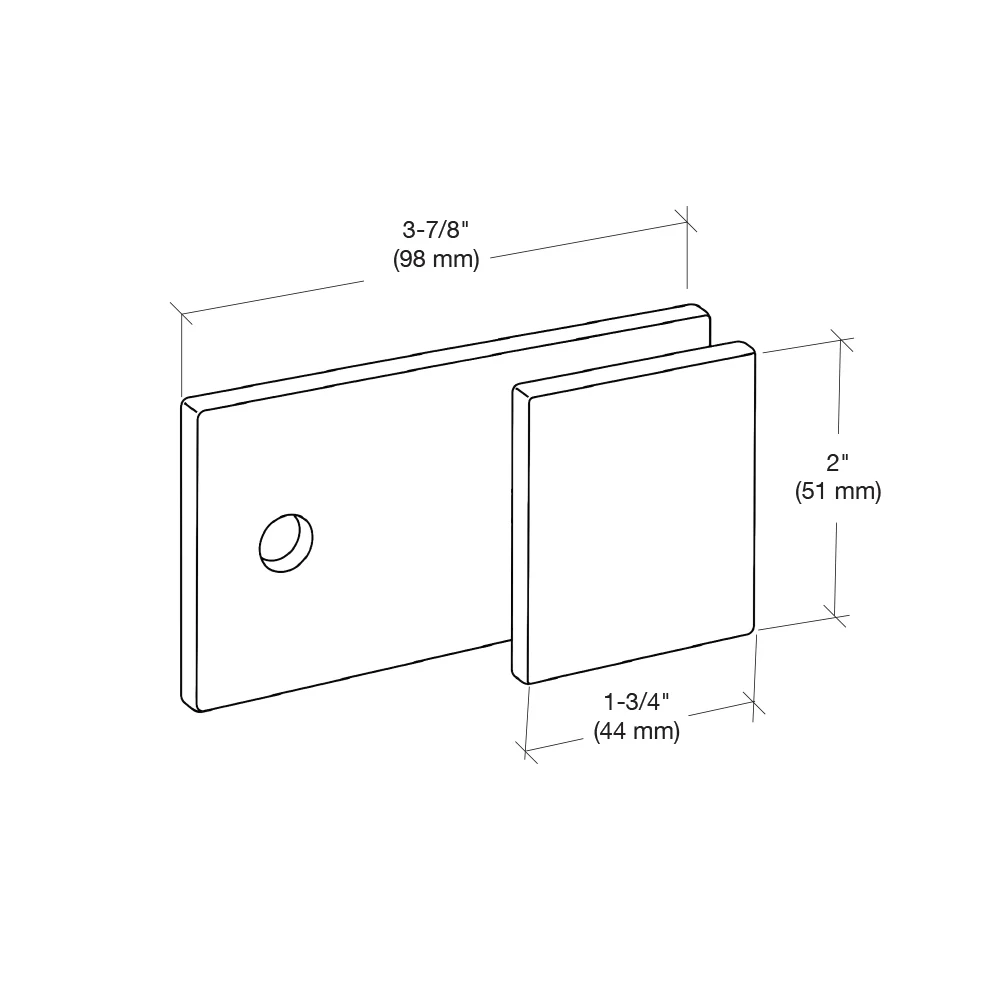

Specs
| Finishes | 3 |
|---|---|
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Leg Width | 2-1/8 in. (54 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Width | 1-3/4 in. (44 mm) |
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL Square "Y" Inline Corner Glass Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one glass clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
