Square 180° Movable Transom Clamp — Polished Chrome
Lets a glass transom above the door pivot open to let steam out, joined to an inline fixed panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Square 180° Movable Transom Clamp is a transom clamp for frameless glass showers; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 7 finishes, including polished chrome, brushed nickel, matte black.
This square clamp lets a movable transom rotate off an inline fixed panel, so steam can escape. Center it on the transom for balanced movement. The largest transom it supports is 16" x 30" (406 x 762 mm). Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; the fixed panel needs a 3/4" (19 mm) hole and the transom a notch.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Transom pivots to release steam
- Max transom 16" x 30" (406 x 762 mm)
- Hole in fixed panel, notch in transom
- Solid brass
Specs
| Finishes | 7 |
|---|---|
| Design Style | Squared |
| Enclosure Type | Niche, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

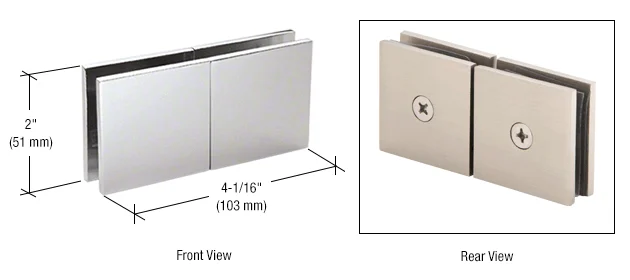

| Height | 2 in. (51 mm) |
| Material | Brass |
| Mounting Type | Pivoting Glass To Glass |
| Width | 4-1/16 in. (103 mm) |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Square 180° Movable Transom Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one transom clamp. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Polished Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
