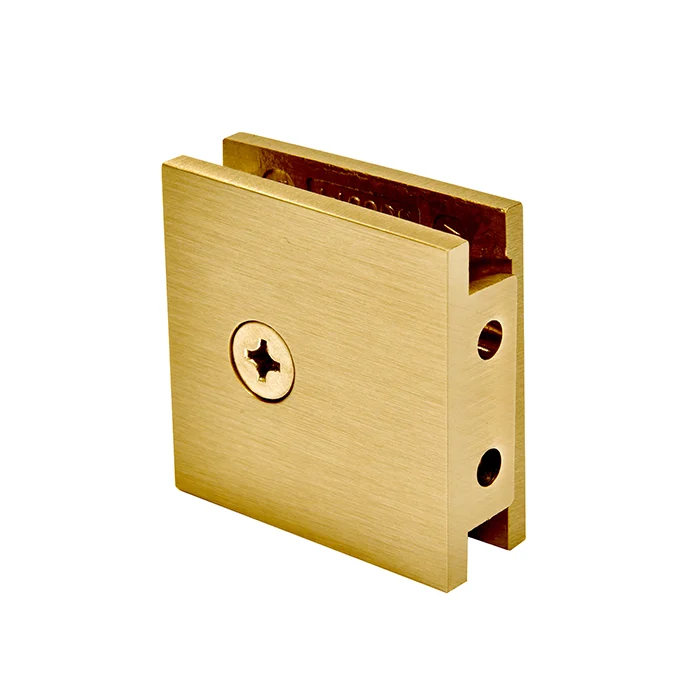

Square Notch-in-Glass Fixed Panel U-Clamp — Satin Brass
A square U-clamp for fixed panels with a notch cut in the glass edge instead of a hole.
About this clamp
The CRL Square Notch-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 9 finishes, including polished chrome, brushed nickel, matte black.
This square-style clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel that has a notch cut in its edge. It sits close to the wall, leaving only a 1/16" (2 mm) gap. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass; mounting screws and gaskets are included.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a notch in the glass edge
- 1/16" (2 mm) gap to the wall

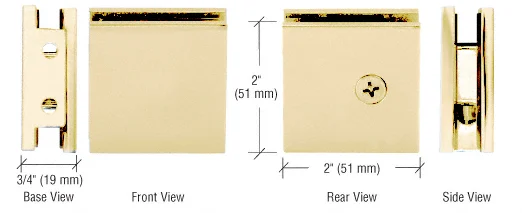

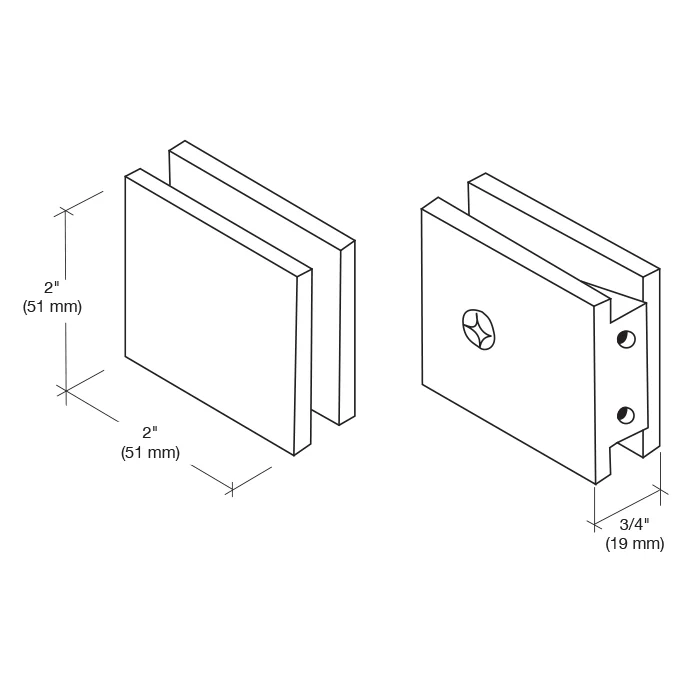

- 2" x 2" (51 x 51 mm)
- Mounting screws and gaskets included
Specs
| Finishes | 9 |
|---|---|
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 2 in. (51 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
| Width | 2 in. (51 mm) |
Complete the look in Satin Brass
Common questions
What glass thickness does the CRL Square Notch-in-Glass Fixed Panel U-Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Brushed Bronze, Satin Nickel, Polished Brass, Unlacquered Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Square Hole-in-Glass Fixed Panel U-Clamp
Beveled Hole-in-Glass Fixed Panel U-Clamp
Square 90° Glass-to-Glass Clamp
90° "Sleeve Over" Glass Clamp
Oversized Fixed Panel U-Clamp
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
