Junior Traditional Fixed Panel U-Clamp for 1/4" Glass — Polished Chrome
A smaller rounded-corner U-clamp made for 1/4" fixed glass panels.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Junior Traditional Fixed Panel U-Clamp for 1/4" Glass is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 1/4" glass. Made by C.R. Laurence (CRL) in 3 finishes, including polished chrome, brushed nickel, oil rubbed bronze.

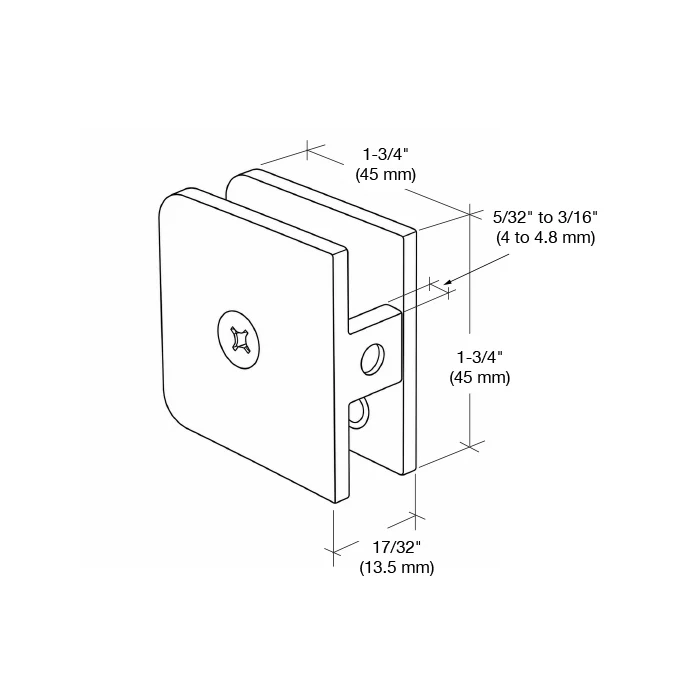

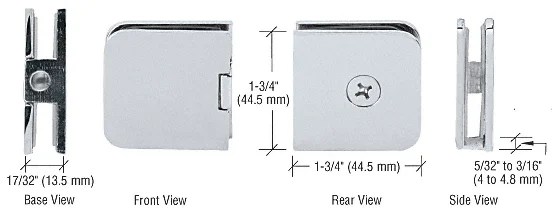

This junior-size traditional clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel through a hole in the glass. It leaves a 5/32" to 3/16" (4 to 5 mm) gap that you can seal with clear silicone. Solid brass, for 1/4" (6 mm) glass only; mounting screw and clear gaskets included.
- Fits 1/4" (6 mm) glass only
- Rounded corners
- 5/32" to 3/16" (4 to 5 mm) gap to the wall
- Mounting screw and clear gaskets included
- Solid brass
Specs
| Finishes | 3 |
|---|---|
| Glazing Thickness | 1/4 in. (6 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL Junior Traditional Fixed Panel U-Clamp for 1/4" Glass fit?
1/4" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Oil Rubbed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
