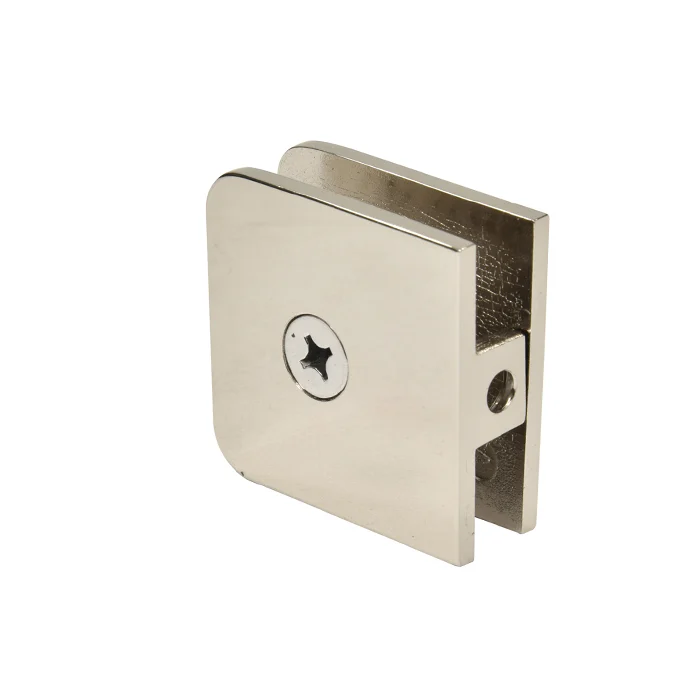

Traditional Fixed Panel U-Clamp — Polished Nickel
The classic rounded-corner U-clamp that holds a fixed glass panel to the wall, floor or ceiling.
About this clamp
The CRL Traditional Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 5/16" to 1/2" glass. Made by C.R. Laurence (CRL) in 10 finishes, including polished chrome, brushed nickel, matte black.
This traditional-style clamp mounts to the wall, ceiling or floor and holds a vertical fixed panel through a hole in the glass. It leaves a 5/32" to 3/16" (4 to 5 mm) gap that you can seal with clear silicone. Solid brass, for 5/16" to 1/2" (8 to 12 mm) tempered glass.
- Fits 5/16" to 1/2" (8 to 12 mm) glass

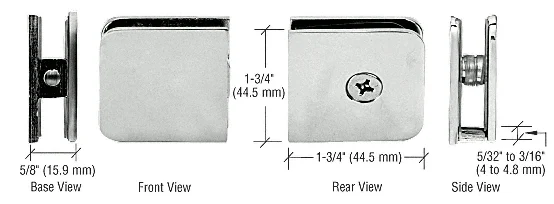

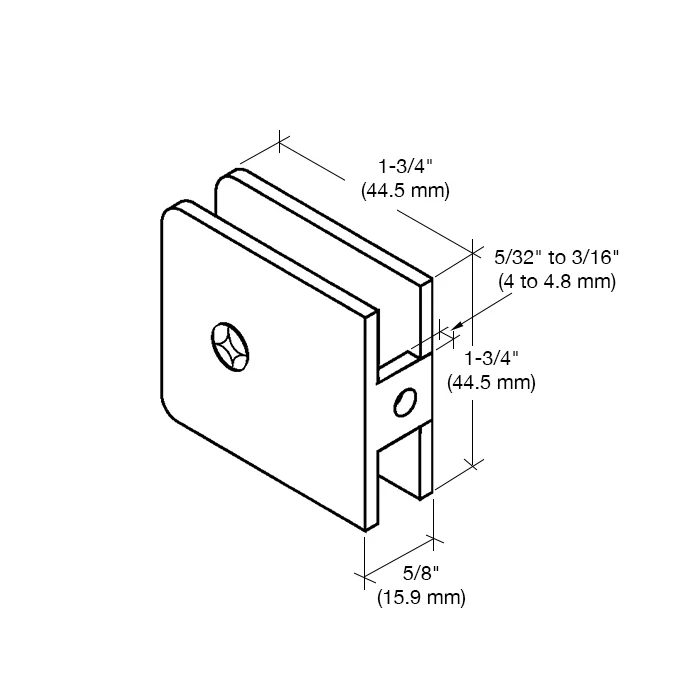

- 1-3/4" x 1-3/4" (44 x 44 mm)
- 5/32" to 3/16" (4 to 5 mm) gap to the wall
- Mounts to wall, floor or ceiling
- Solid brass
Specs
| Finishes | 10 |
|---|---|
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 1-3/4 in. (44 mm) |
| Length | 1-3/4 in. (44 mm) |
| Material | Brass |
| Mounting Type | Wall Mount |
Complete the look in Polished Nickel
Common questions
What glass thickness does the CRL Traditional Fixed Panel U-Clamp fit?
5/16" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
