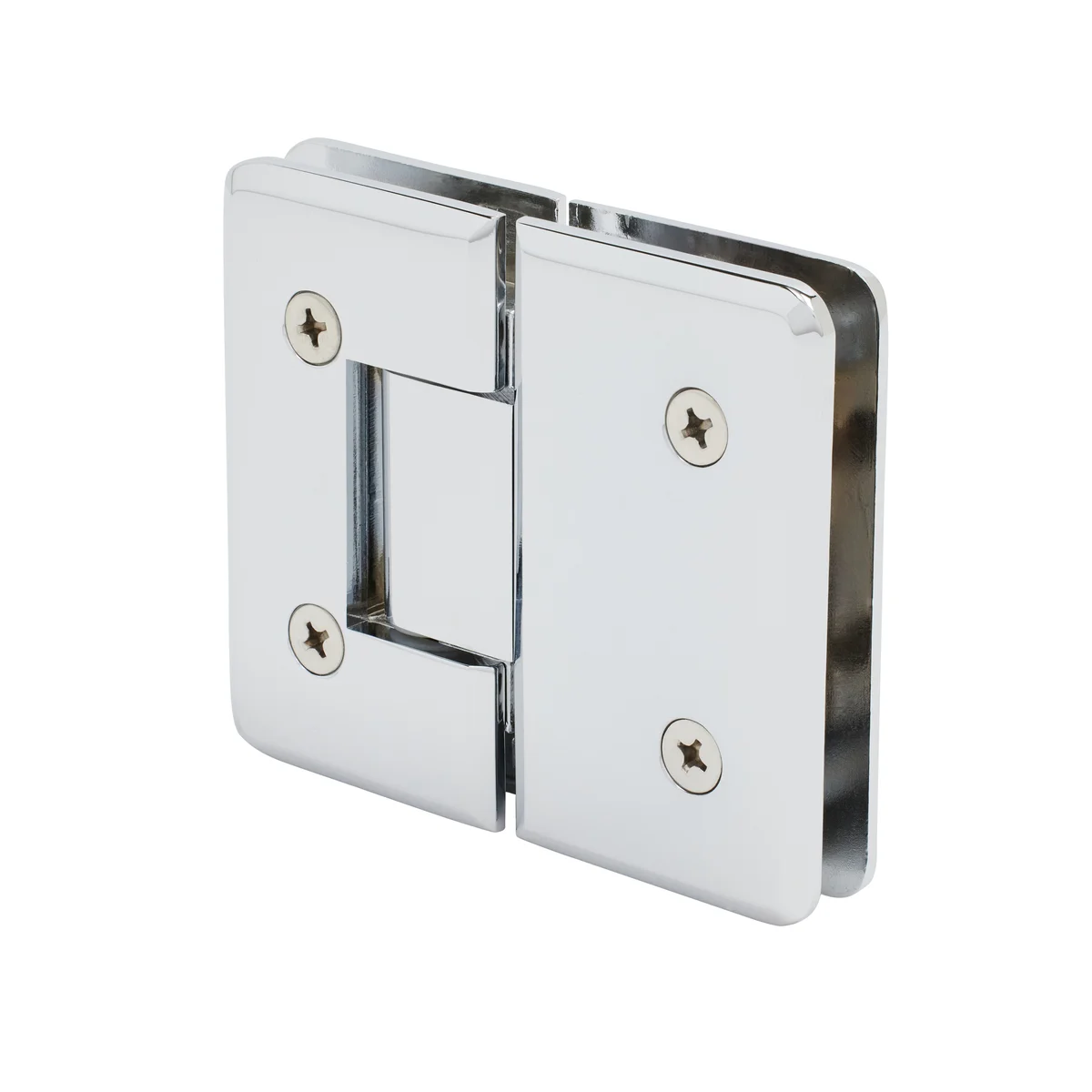

Glass to Glass Shower Door Hinge 180° – Cologne 780 Positive Close — Polished Chrome
A beveled 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL 180º Glass-to-Glass Positive Close Cologne Hinge (C0L780) is a glass-to-glass hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in polished chrome.
The CRL 180º Glass-to-Glass Positive Close Cologne Hinge (C0L780). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 110 lb and 36" wide; three hold up to 140 lb. The part that clamps onto the glass is 3-15/16" tall. The glass needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's template. It takes the same glass cut-out as the Cologne 037, Cologne 044, Cologne 045, Cologne 067 and others. Made of brass.
- Fits 3/8" to 1/2" glass
- Holds a door up to 110 lb with 2 hinges
- Doors up to 36" wide
- 3-15/16" tall on the glass
- Glass cut-out: a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart
- Positive close: the door returns to closed
Specs
| Finishes | 1 |
|---|---|
| CRL model | C0L780 |

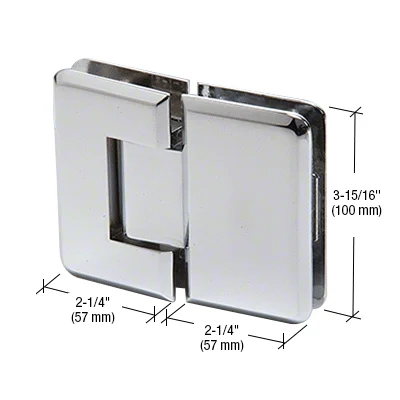

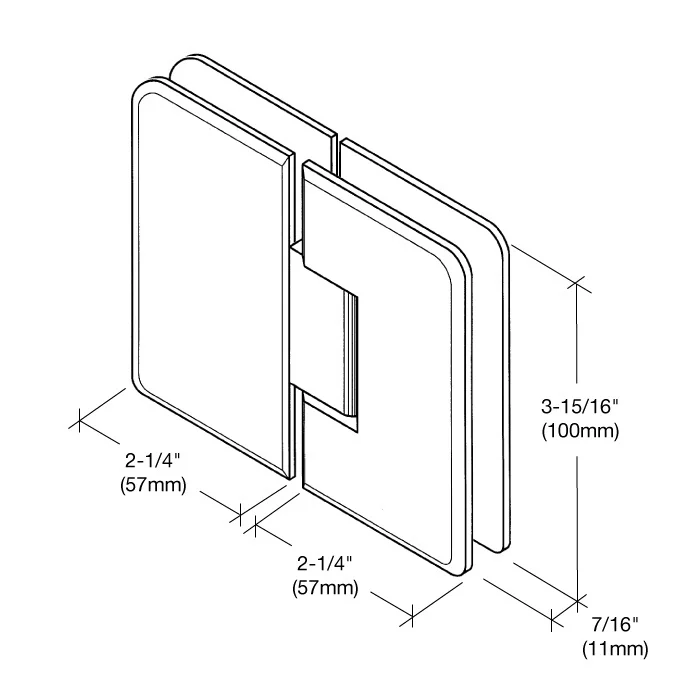

| Size on the glass (tall x wide) | 3-15/16" tall |
| Glass cut-out | A mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart |
| Max door weight | 110 lb with 2 hinges, 140 lb with 3 |
| Max door width | 36" |
| Adjustable | No |
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Positive Close | Yes |
| Self-Centering | Yes |
| Series | Cologne |
| Width - Door Portion | 2-1/4 in. (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Glass cut-out
This hinge needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (27): these fit the same glass.
- Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate
- Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate
- Glass to Glass Shower Door Hinge 180° – Vienna 180
- Shower Door Hinge – Vienna 337 Adjustable Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 337 Adjustable Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 074 Wall Mount, Short Back Plate
- Shower Door Hinge – Cologne 537 5° Pre-Set Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 537 5° Pre-Set Wall Mount, Full Back Plate
- Glass to Glass Shower Door Hinge 180° – Cologne 180
- Glass to Glass Shower Door Hinge 180° – Vienna 580 5° Pre-Set
- Shower Door Hinge – Vienna 037 Wall Mount, H Back Plate
- Glass to Glass Shower Door Hinge 135° – Vienna 045
- Shower Door Hinge – Vienna 344 Adjustable, Offset Back Plate
- Shower Door Hinge – Vienna 544 5° Pre-Set, Offset Back Plate
- Glass to Glass Shower Door Hinge 90° – Vienna 092
- Glass to Glass Shower Door Hinge 135° – Cologne 045
- Shower Door Hinge – Cologne 544 5° Pre-Set, Offset Back Plate
- Glass to Glass Shower Door Hinge 180° – Cologne 380 Adjustable
- Glass to Glass Shower Door Hinge 180° – Vienna 380 Adjustable
- Glass to Glass Shower Door Hinge 90° – Cologne 092
- Glass to Glass Shower Door Hinge 180° – Vienna 780 Positive Close
- Shower Door Hinge – Trento 044 Wall Mount, Offset Back Plate
- Shower Door Hinge – Trento 037 Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 067 Positive Close, H Back Plate
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL C0L780 hinge fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-15/16" tall.
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 110 lb and 36" wide, three hold up to 140 lb.
Which other hinges use the same cut-out?
Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate; Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Vienna 180, and 21 more. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
